IP 170 ISO 1516 ISO 1523 Automatic Abel Closed Cup Flash Point Tester

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Test Standard：ISO 13736, IP170, ISO 1516, ISO 1523, GB,T 21789
  • Power Supply：AC220+_10% 50 Hz
  • Measuring Range：10ºC -110ºC
  • Temperature of Coke Chamber：500 Celsius

Base Info

  • Model NO.：Abel-R6
  • Power Consumption：800W
  • Size：400(W)×380(D)×350(H) mm
  • Weight：20kg
  • Display：LCD
  • Material of Case：Stainless Steel
  • Color：Black
  • Language：English
  • OEM Service：Available
  • Transport Package：Hardboard
  • Specification：Small
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Applicable standardsISO 13736, IP170, ISO 1516, ISO 1523, GB/T 217892StructureDesktop,with full stainless steel case3Measuring range

10ºC ~110ºC ,temperature controlling accuracy ±0.1 ºC

4Refrigeration sourceinbuilt imported semiconductor refrigeration metal bath cold trap5Stirring way0~30rpm,adjustable6Temperature sensorPT1007Flash point detection sensor

CRC thermal couple

8DisplayColorful touch screen9Ignition methodAutomatic(gas ignition and electronic ignition can be chose by actual requirements),adopting high sensitivity thermal couple detection method10Display content

controlling temperature and set expected flash point

fault prompt screen
parameters and pressure setting

11Power consumption800W12Overall size400(W)×380(D)×350(H) mm13Weight20KG

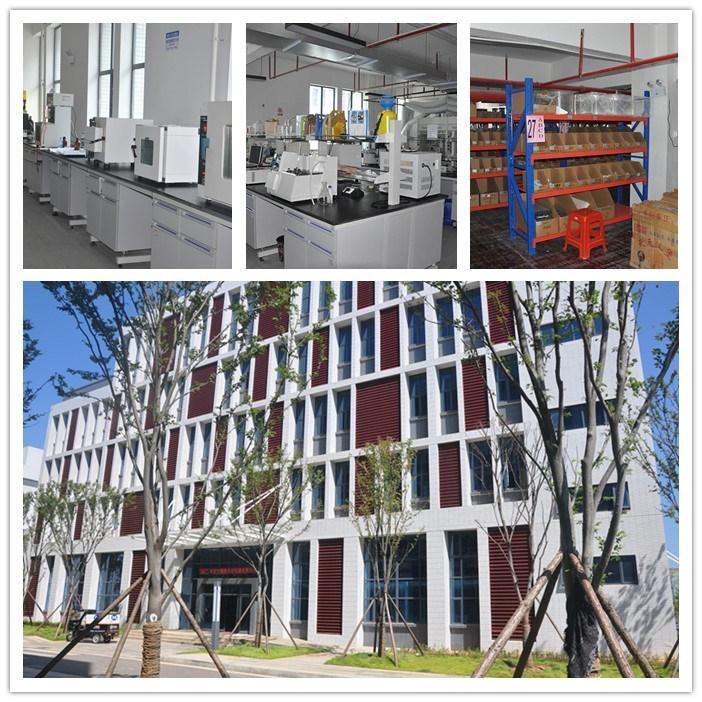

Factory overviewIP 170 ISO 1516 ISO 1523 Automatic Abel Closed Cup Flash Point Tester
Customer Feedback

Germany
IP 170 ISO 1516 ISO 1523 Automatic Abel Closed Cup Flash Point Tester
USA
IP 170 ISO 1516 ISO 1523 Automatic Abel Closed Cup Flash Point Tester
Package
IP 170 ISO 1516 ISO 1523 Automatic Abel Closed Cup Flash Point Tester
FAQ
1.What's the delivery time?
About 35 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every perso
