• Model NO.：KMHW-17
• Volume(M3)：16.8cbm
• Exterior Dimensions(W*H*D)：5050*2350*2250mm
• Heat up Time：+20oc~+80oc Within 60mins
• Pull Down Time：+20 Oc~-55 Oc Within 120mins
• Insulation Material：Glass Wool+Rigid Polyurethane
• Refrigeration System：Semi-Hermetic Compressor(Imported)
• Temperature Change：1 to 2°c,Min
• Transport Package：Strong Plywood Case
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Guangdong, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Yesr

Model NumberTemperature RangeHumidity RangeTemperature ChangeRecommended UsePanel Walk-in-60°C to +85°C20% to 95%RH1 to 2°C/minTemperature Cycling Temp / Humidity Cycling / Storage TestingSolid Walk-In-60°C to +150°C20% to 95%RH4 to 5°C/min, or fasterTemperature Cycling
Temp / Humidity Cycling
Extreme Temp / Humidity Testing
Altitude TestingSteady State Walk-In-20°C to +50°C20% to 95%RHN/AConstant Temperature
Constant Temp / Humidity
Storage Testing
The technical parameter is as below:

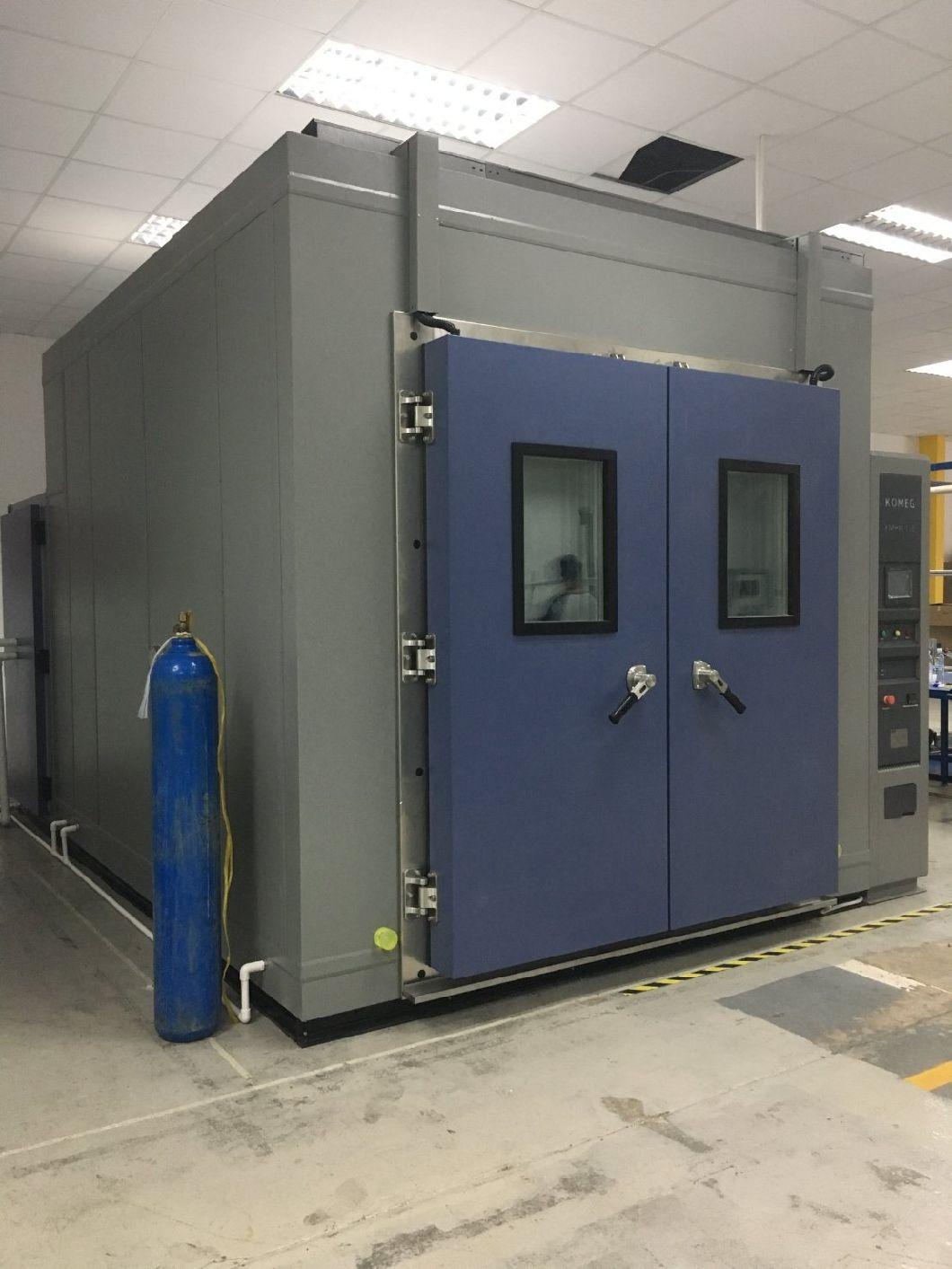

Specification of Walk-In Chambers

ModelKMHW-16.8Volume(m³)16.8CBMInterior DimensionsW3900*H2100*D2050mmExterior DimensionsW5050*H2350*D2250mmSafety Devices(standard)No fuse breaker, over pressureover heat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorControl System Balanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single-stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fixpoint runningMemory capacity120 programs,1200steps, all repeat 999 cycles, part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.port RS-232 or RS-485 (Software is an option)Temp. rangeMaximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40 ºC,-30ºC,-20 ºC,-10ºC,0ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0ºCHumidity uniformity±5.0%R.HAmbient Temp.+5ºC~+35ºCWiring methodAC 380±10%50Hz,3 phase 4 wires +Ground WiresHeat uptime +20ºC~+80ºC, Within 60 minPull downtime +20ºC~-55ºC-40ºC-20ºC-10ºC,Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing:W800*H1800;Double wing:W1600*H1800;Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations availableSpecification for Walk-in ChamberModelKMHW-6Volume(m³)6CBMInterior DimensionsW3000*H2100*D2050mmExterior DimensionsW4160*H2350*D2250mmSafety Devices(standard)No fuse breaker, overpressure, overheat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicatorControl SystemBalanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor, single-stage or cascade refrigeration system,CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel7-inch LCD Touch panel, Chinese or English display selectableOperation modelProgram or fixpoint runningMemory capacity120 programs,1200steps, all repeat 999 cycles, part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or ~5V DCVComm.portRS-232 or RS-485 (Software is an option)Temp. rangeMaximum:80 ºC,120 ºC;Minimum:-60 ºC,-50 ºC,-40 ºC,-30 ºC,-20 ºC,-10 ºC,0 ºCHumidity Range10%,20%,30%~95%Temp. constancy±0.5 ºCHumidity constancy±2.5%R.HTemp. uniformity±2.0 ºCHumidity uniformity±5.0%R.HAmbient Temp.+5 ºC~+35 ºCWiring methodAC 380±10% 50Hz,3 phase 4 wires +Ground WiresHeat uptime+20 ºC~+80 ºC, Within 60 minPull downtime+20 ºC~-55 ºC, -40 ºC,-20 ºC,-10 ºC,Within 120 or 90 or 60 minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing:W800*H1800; Double wing:W1600*H1800;Note:
1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available


After-sale service

If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
