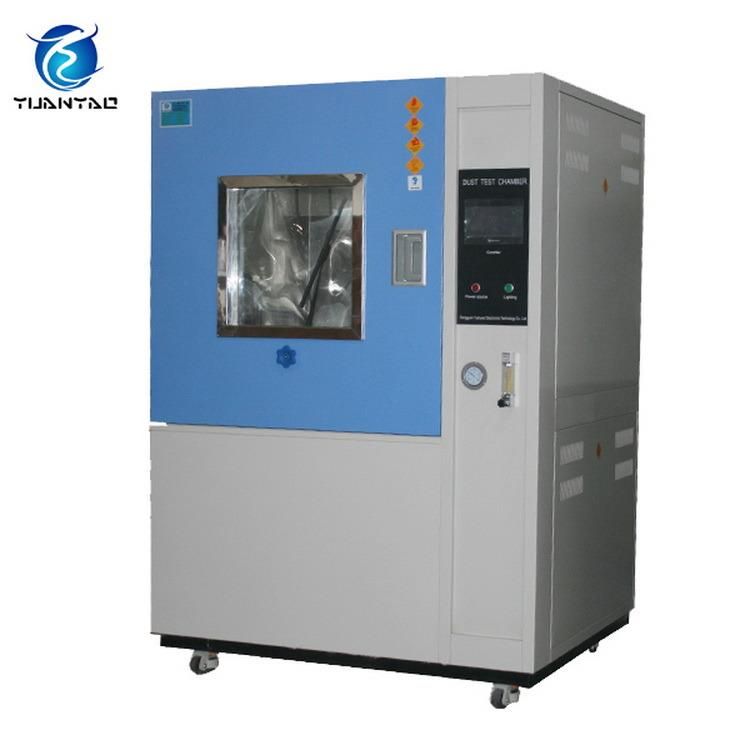

Climate Programmable New Design Environmental Weathering Dust-Proof Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Certification：CE, TUV, ISO
- Warranty：12 Month
- Internal Size(W*H*D)：1000*1000*1000mm
- Test Type：F1
- Concentration of Dust：Above 60000 Mg , M3
- Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
Base Info
- Model NO.：YSDT-1000-F
- Humidity Range：45%Rh-85%Rh
- Swirl Time：5s
- Material：Stainless Steel
- Type：Material Testing Machine
- Maxcapacity：<1000kn
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Power Source：AC220V
- Transport Package：Well Packed in Strong Wooden Cases.
- Specification：CE, SGS, ISO, TUV certified.
- Trademark：Yuanyao
- Origin：Dongguan, China(Mainland)
- HS Code：9031200000
- Production Capacity：100sets,Month
Description
ModelYSDT-1000-F YSDT-1000-C(IEC-529) Internal Dim.W×H×D(mm) 1000×1000×1000 1000×1000×1000 External Dim.W×H×D(mm) 1350×1950×1350 1350×1950×1350 Testing Type F1 F2 F3 IEC60529 C1 C2 Concentration of dust(mg/m3) Above 60000 Above 3000 Above 100 Above 5000 Above 100 Testing Temp. 20°C±15°C Huimidi.Range 45%RH~85%RH Flow rate of dust(m/s) No Limited 5m/s 10m/s Testing Time Swirl time 5S or other NO Rest time 15min or other Total time 5H 8H 8H 2H 6H Material Exterior SUS#304+Powder Coated Interior SUS#304 Other Components Chamber lamp,Wiper,Casters with adjusters Power Source(K.W.) AC 1Ψ 220V 60/50Hz 4KW

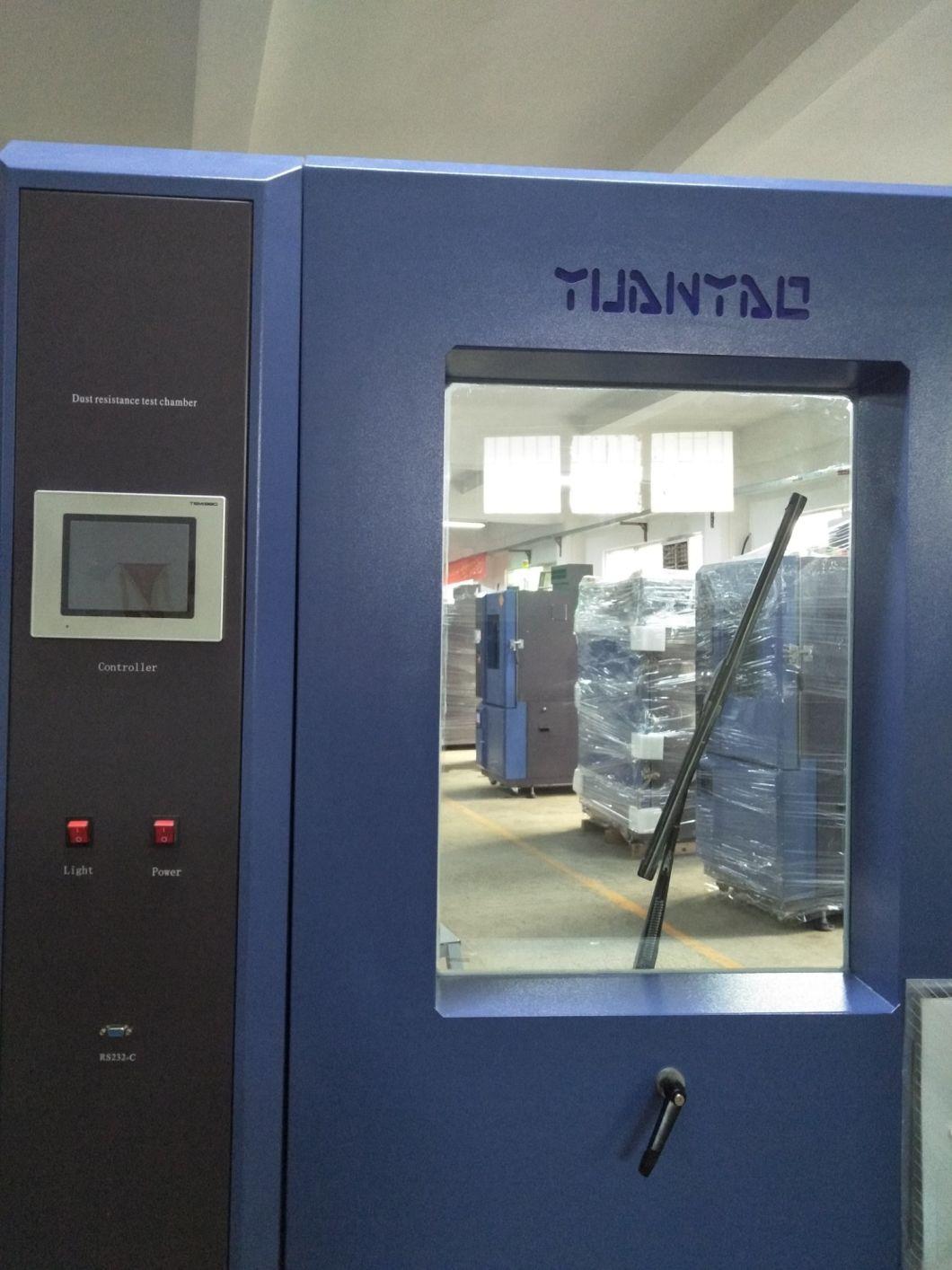

Product detail
