• Model NO.：F-TH Series
• Temperature Rising/Falling Speed：3~30degree C,Min, Adjustable
• Cooling System：Water Cooled
• Transport Package：Wooden Case
• Specification：F-TH Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：300 Sets,Month

ModelF-TH-150(A~F)F-TH-225(A~F)F-TH-408(A~F)F-TH-800(A~F)Internal Dimension
W*H*D( mm)500*600*500600*750*500600*850*8001000*1000*800Internal Dimension
W*H*D (mm)1100*1750*16001200*1800*17001250*1900*19001600*2050*2150Range of Fast
Temperature ChangeTemperature Range: -70~+150degree C; Range of Fast Temperature Change:
-45~+85degree C;
Max. temperature rising/falling speed is 15degree C/min when the whole process with linear control .Humidity Range(Optional)20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional ,need Dehumidifier)Indication resolution/
Distribution Uniformity
of Temperature and Humidity0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.Control Accuracy of
Temperature and Humidity±0.5degree C; ±2.5% R.H.Temperature Rising/
Falling VelocityRising/Falling Speed Rate with linear control : 3~15degree C/min, adjustable
Rising/Falling Speed Rate non-linear control : 3~30degree C/min, adjustableMaterialInterior material is SUS 304# stainless steel,e*terior is stainless steel or SEE
cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materialsCooling SystemWater cooled/single segment compressorProtection DevicesFuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection
switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole(Optional), Water Purifier, DehumidifierCompressorFrench Tecumseh Brand, Germany Bizer BrandPowerAC380V 3Ph 5 lines, 50/60HZAppro. Weight(Kg)250350450600

Simulation Environment Temperature Heat Cycling Test Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate,Safe and reliable.
2. Rectangular double-paned viewing window for observation of sample under test, with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying Pot and automatically recyclable.
5. French Tecumseh is used as compressor, with environment friendly refrigeration R23, R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual point at the Same time
7. The control unit has the functions of multiples segment program editing
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.

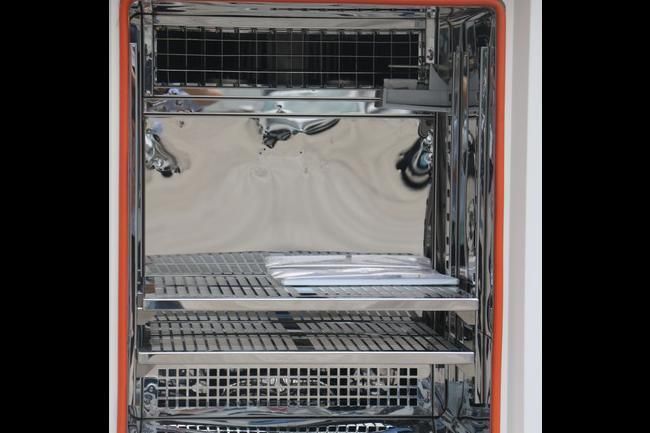

Pictures for reference:

Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

Our advantage
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufacturer in China with excellent experience and skills, also have best quality products

Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
