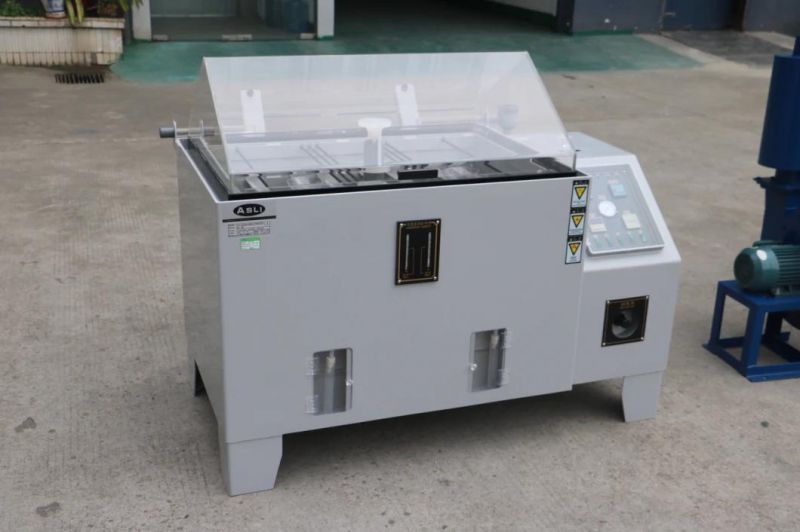

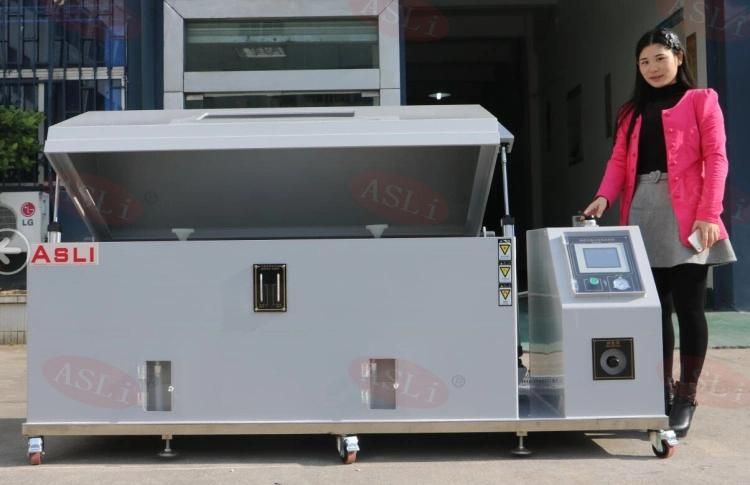

Programmable LCD Touch Screen Control Salt Spray Corrosion Test Chamber
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Dimension：W1600*H500*D800mm
- Saline Test：Nss Acss
Base Info
- Model NO.：SH-160
- Corrosion Test：Cass
- Saline Concentration：5% Concentration of Nacl
- Compressed Air Pressure：1.0~6.0 (Kgf)
- Spray Volume：1.0~2.0ml ,80cm2 ,H
- Control Method：LCD Touch Screen
- Volume：480 L
- Transport Package：Wooden Case
- Specification：2300*1400*1300
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：8514109000
- Production Capacity：100 Sets,Month
Description
Overview
Product ParametersTechnical Parameters Model SH-120 SH-160 SH-200 Internal Dimension
W*H*D (mm) 1200*500*800 1600*500*800 2000*500*800 External Dimension
W*H*D (mm) 2100*1400*1300 2300*1400*1300 2700*1500*1500 Lab Temperature Saline test (NSS ACSS) 35±1 degree ;Corrosion Test (CASS)50±1 degree Pressure Bucket
Temperature Saline test method (NSS ACSS) 47±1 degree / Corrosion Test (CASS)63±1 degree Lab Capacity(L) 500 800 1500 Saline Capacity(L) 40 40 40 Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O Compressed Air
Pressure(Kgf) 1.0~6.0 Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value) Spray Form Continuous Spraying or Programmable Spraying Power AC220V 1phase 3 lines15A Weight(Kg) 65 80 120 160 200
Programmable LCD Touch Screen Control Salt Spray Corrosion Test Chamber Features:
1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ± 0.1º C
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)
Exhibition

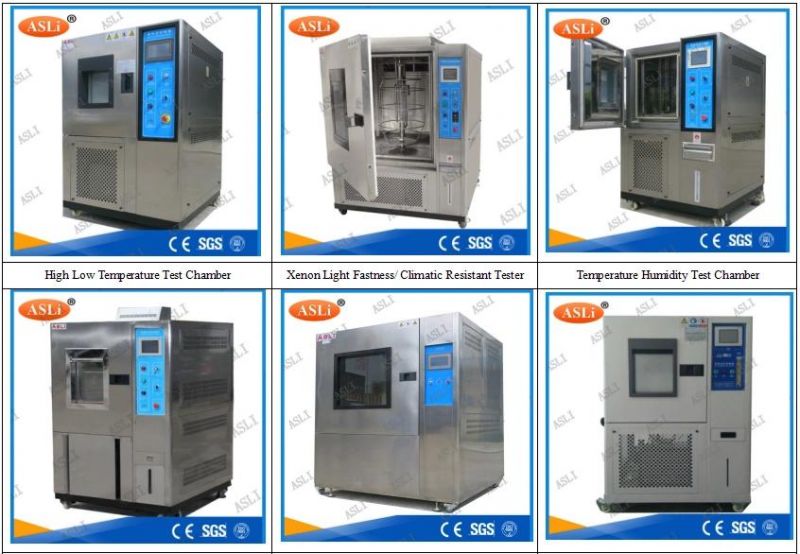

ASLi main test equipments:

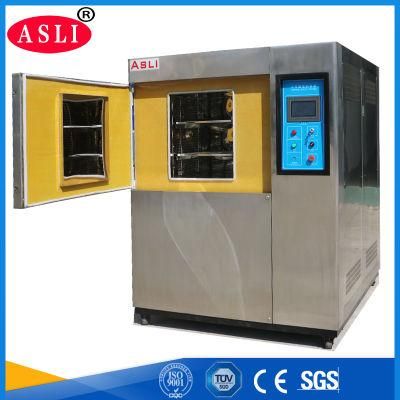

Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven, Programmable LCD Touch Screen Control Salt Spray Corrosion Test Chamber, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
