• Model NO.：YTHG-072
• Loading Method：Dynamic Load
• Display：Digital
• Control：Controller
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：N,a
• Color：Blue
• Certificate：SGS Ce TUV
• Power Supply：AC 1 Phase 220V;AC 3 Phase 380V 60,50Hz
• Dimension(Inner Size)Cm：50*60*50
• Dimension(Exterior Size)Cm：100*150*105
• Temperature Range：-70~150c
• Humidity Range：20%~98%R.H
• Exterior Material：Stainless Steel+Powder Coating

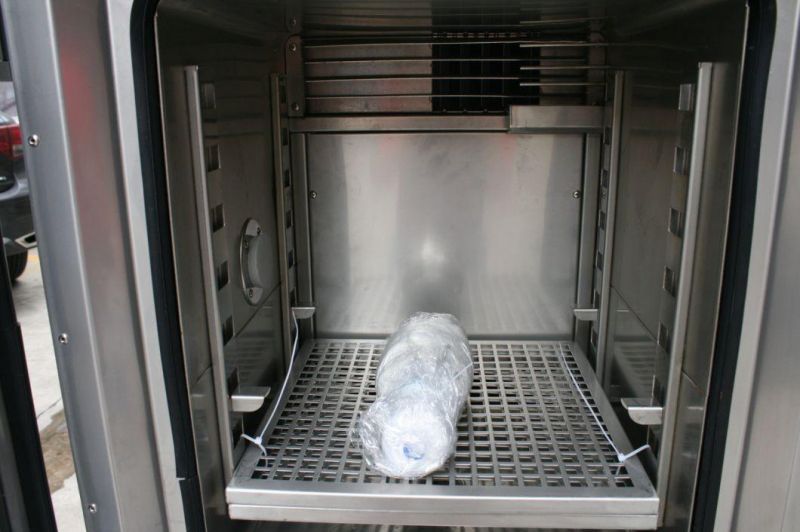

• Interior Material：SUS#304 Stainless Steel
• Insulation Material：PU Fiberglass Wool

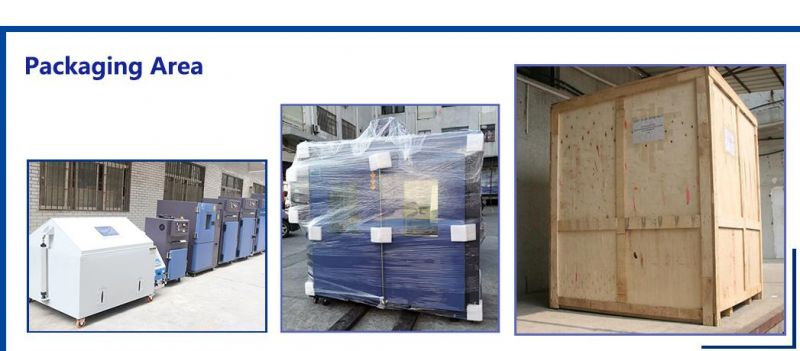

• Transport Package：Wooden Case
• Specification：CE approved
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：9032100000
• Production Capacity：100 Sets,Month

Three Zones Temperature Humidity ChamberModelYTHG-072YTHG-162Inner chamber size W×H×D(cm)100×40×4060×45×60Exterior chamber size W×H×D(cm)100×200×170120×215×185Testing temperature range-70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperture can be customizedTesting humidity range20%RH~98%RH(low humidity 10% RH~98RH or 5%RH~98%RH can be customizedTemp.humi.fluctuation±0.3ºC;±0.5%RHTemp.humi.uniformity±2ºC;±3%RH (empty loading after stablize for 30mins)Temp.humi.resolution0.01ºC;0.1%RHHeating&cooling time ºC/minHeat-up:3ºC/min(average),cool-down:1ºC/min(average)Exterior chamber materialCold rolled plate + Powder coatingInner chamber materialSUS#304 Stainless steelInsulation materialPU+ fiberglass woolCirculation systemCentrifugal fan air circulation systemHeating systemSUS# Stainless steel high-speed heaterHumidification systemElectrothermal steam humidificationDehumidifyingADP critical dew point cooling/ dehumidifying methodRefrigeration systemCompressor + Finned evaporator + Air(Water) cooling condenser Controlling systemTouch screen controller+SSR+PIDOther componentsVacuum glass observation windowTest hole (50mm),Control status indicatorInterior light, Compartment shelf (2 freely adjustable)Safety protection deviceHumidification system overheat protection,Compressor overload protectionControl system overload protection,overload indicatorPhase sequence protection ,Water shortage protectionHigh voltage and low voltage protection,Over temperature protectionWater supply dely protection,Fan overcurrent protectionPower supplyAC 1ψ 220V; 3ψ380V 60/50HzCustomization serviceNo-standard or special requirements are all welcome

2. We produce in strict accordance with international safety standard.More detail of temperature humidity tester

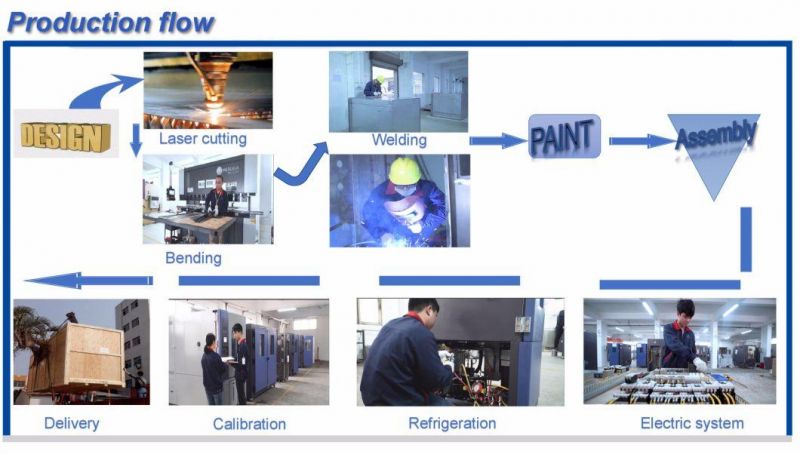

Industrial test equipment Production Line:

1. We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.

3. Many stock spare parts in warehouse ensure customer can get soon when they need.

Yuanyao profile

If you want to know more about the temperature humidity test chamber,

please feel free to conatct me.

Welcome to inquiry !
