IEC156 ASTM D1816 Portable Transformer Oil Tester for Bdv Measurement
Chongqing TOP Oil Purifier Co., Ltd.- Type：Universal Testing Machine
- Display：LCD
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC220V 50Hz (Customizable)
- Applicable Standard：IEC156,ASTM D1816,ASTM D877,Une 21 etc
Base Info
- Model NO.：DYO-100A (Other models available too)
- Output Voltage：0-80kv or 0-100kv
- Voltage Increase Speed：Adjustable 0.5kv,S, 1kv,S, 2 Kv,S, 3kv,S, 5kv,S
- Capacity：1.6kVA, 2.0kVA
- Transport Package：Standard Export Wooden Case
- Specification：around 35-42 kg
- Trademark：Chongqing TOP
- Origin：Chongqing, China
- HS Code：902780
- Production Capacity：100 Sets, Month
Description
(1) AC220V±10% power supply input (customizable)
(2) Output voltage:AC 0~80KV, or 0-100KV
(3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
(4) Max test times: 9
(5) Init wait times:0~999s
(6) Stir time: 0~999s
(7) Wait time: 0~999s
(8) Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV
(9) Temperature measurement:
Measurement range : 0ºC to 70ºC, or better
Temperature resolution : 1ºC, or better
Operating temperature : up to 45ºC

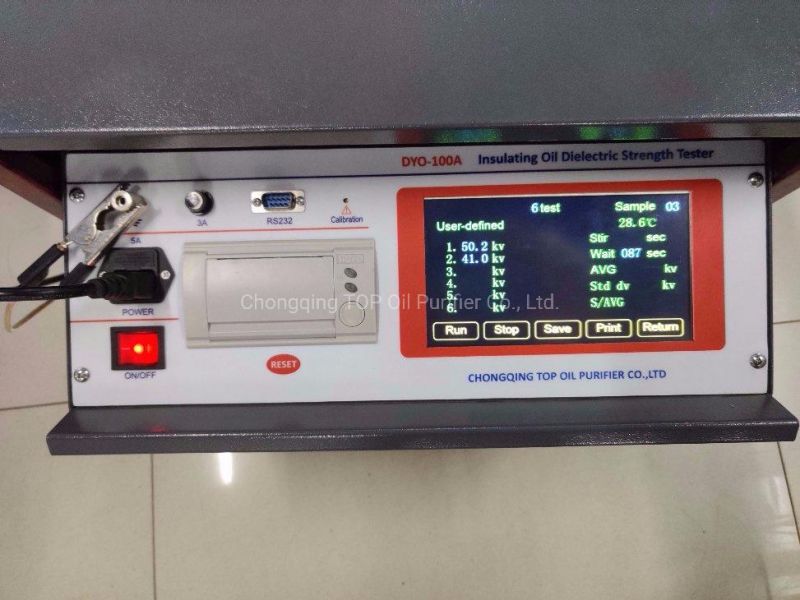

(10)7 inch colorful LCD with touch pad
(11)Oil test vessel temperature measurement unit
(12) Weight 38kg
(13) Size: 460 mm*380mm*360mm
Key workds: dielectric strength tester, automatic oil dielectric tester, automatic transformer oil dielectric tester, dielectric oil tester, dielectric strength tester, breakdown voltage tester, bdv testing kit, portable transformer oil tester, transformer oil test equipment, transformer oil dielectric strength tester, dielectric strength oil tester, transformer oil testing kit, oil tester, test equipment, oil analysis equipment, testing instrument, test kit, insulation tester, astm d1816 insulating oil tester, withstand voltage tester, dielectric withstanding voltage test, bdv testing equipment, bdv testers, bdv oil tester, oil bdv tester, transformer oil bdv tester, transformer oil breakdown voltage tester, breaking down voltage tester, transformer oil bdv testing, transformer oil breakdown tester, oil breakdown voltage tester, transformer oil dielectric test equipment, dielectric strength testing equipment, test kit, laboratory equipment, measuring instruments, lab instruments, measuring device, transformer oil dielectric test equipment 100 kv, insulating oil dielectric strength tester, dielectric withstand tester, voltage withstand test, dielectric oil analysis, dielectric oil strength testing equipment, transformer oil test equipment
Other Related Insulating Oil Testers
(We provide not only the following listed insulation oil testers. Contact me directly if you have related demand.)
1.Fully Automatic Insulating Oil Dielectric Strength Tester IIJ-II
2.Fully Automatic Insulating Oil Dielectric Strength Tester DYT
3.Fully Automatic Insulating Oil Dielectric Strength Tester DYO
4.Three Cups Insulating Oil Dielectric Strength Tester IIJ-III
5.Six Cups Insulating Oil Dielectric Strength Tester IJJ-VI
6.Insulating Oil Dielectric Strength Tester IIJ-603
7.Insulating Oil Tan Delta ( Dielectric Loss) Tester DLT0812
8.Insulating Oil Dielectric Loss And Resistivity Tester TP-6100A
9.Fully Automatic Water-Soluble Acid Value Tester PH-C
10.Fully Automatic Surface/Interface Tension Tester IT-800A
11.Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
12.Insulating Oil Gassing Property Tester DPT-20
13.Insulating Oil Oxidation Stability Tester TP622
14.Multifunctional Shaker SD-01
15.Insulating Oil Water Content Tester TP-2100
16.Online Insulating Oil Water Content Tester TPEE
17.Transformer Oil Dissolved Gas Chromatograph GC-7890MD
We also have other types of oil tester, if you need any one related, pls tell me to quote them together.
Packing & Delivery
Packing: standard export wooden case per set.
Delivery method: this kinds of testing equipment are usually delivered by air or courier, but other method is available if necessary.

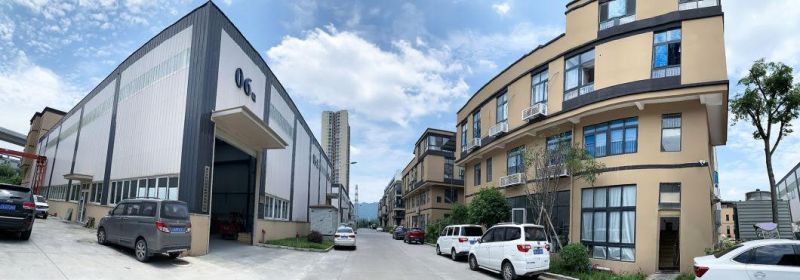

About us
Chongqing TOP Oil Purifier Co.,LTD is a professional leading manufacturer and supplier of oil purifiers and various related testers, located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
If you are interested in this tester or other related equipment, welcome to contact me for more information.
