• Model NO.：YT-LX2800A
• Dehydration Time：1-99min
• Dimension：380(L)*280(W)*330(H)mm
• Net Weight：12kg
• Transport Package：Carton
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-LX2800A Dehydration Time 1-99min Dimension 380(L)*280(W)*330(H)mm Net Weight 12kg Transport Package Carton Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

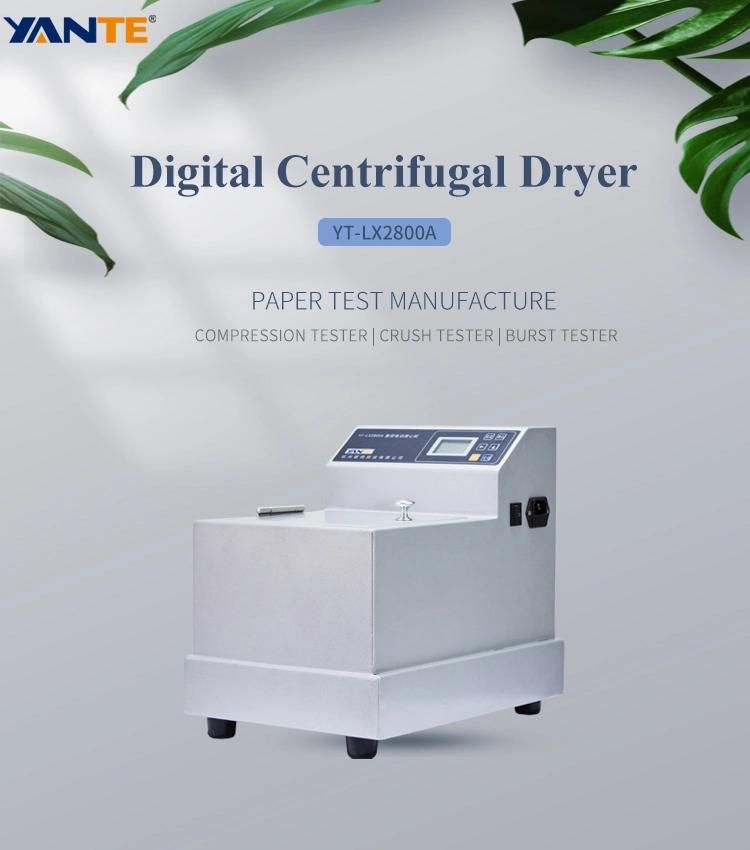

The Digital Centrifugal Dryer is designed and manufactured by our company for the rapid dehydration of various pulps in the laboratory. It is the most widely used centrifuge in the super absorbent resin industry; it is also widely used in papermaking, textile, printing and dyeing industries, and is its production site. An indispensable auxiliary device for the laboratory.


Application Range

Papermaking, textile, printing and dyeing industries
Slurry dewatering
Superabsorbent polymers (SPA) ,Polymer Materials


Product Features

Low vibration, low noise, high dehydration efficiency
ARM processor, 128×64 graphic dot matrix liquid crystal display, Chinese display and easy operation
Real-time display of speed and centrifugal force
Adopting closed-loop AC motor speed control technology, convenient speed control and stable speed
With brake function, it can stop quickly, increase the accuracy of the experiment, and improve the efficiency of the experiment

Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(220±10%)V, 50Hz
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Maximum capacity	20000ml
4	Range of rotation	(900~1400)rpm
5	Maximum centrifugal force	350g
6	Inner cylinder diameter	320mm
7	Speed accuracy	±10 RPM / min
8	Time setting range	(1~99)min
9	Dimension	450×600×920 mm
10	Net Weight	60kg Around
