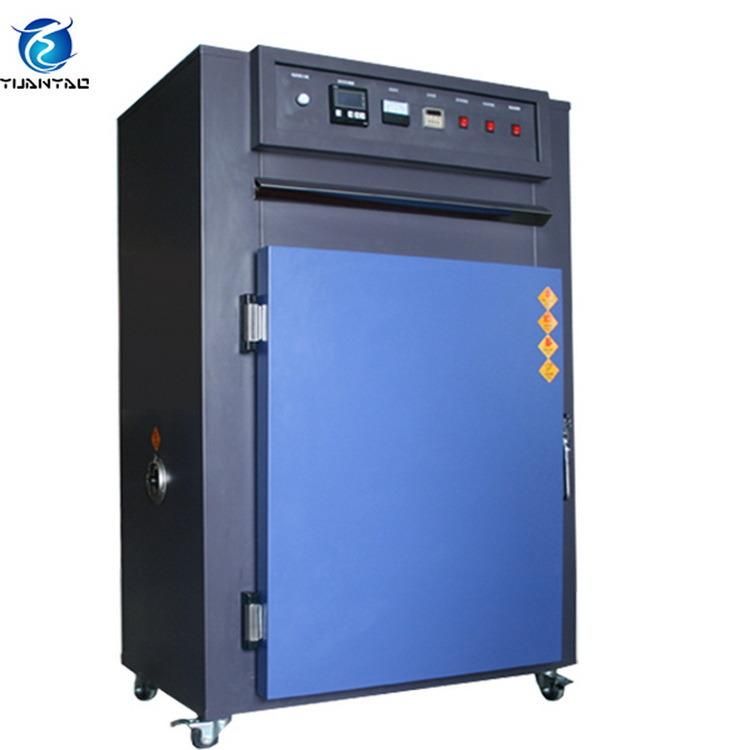

Standard High Temperature Heating Oven Tester for Electricians and Automobiles
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece:300mm
- Mass Scope of Workpiece:20kg
- Type:Material Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:YPO-072
- Loading Method:Static Load
- Display:Digital
- Control:Controller
- Weight:100-500Kg
- Power Source:AC380V
- Oil Cylinder Position:N,a
- Inner Size:450*400*400mm
- External Size:870*1200*550mm
- Volume:72 Liters
- Temp. Fluctuation:+,-0.3 Degree
- Color:Blue
- Interior Chamber Material:SUS#304 Stainless Steel Plate
- Exterior Chamber Material:Stainless Steel Plate + Powder Coated
- Circulation System:Circle Fan
- Indication Resolution:0.1degree , 1 Degree
- Heat up Time:60 Mins
- Transport Package:Strong Wood Carton
- Specification:YPO-072
- Trademark:Yuanyao
- Origin:China
- HS Code:9032100000
- Production Capacity:100 Sets,Month
Description
MODELYPO-072 YPO-270 YPO-480 YOP-600 YPO-720 Internal Sim.WHD(mm) 450×400×400 600×900×500 800×1000×600 1000×1000×600 1200×1000×600 External Dim.W×H×D(mm) 870×1200×550 1050×1650×740 1200×1700×840 1400×1750×840 1750×1750×840 Temp.Range Room Temp.+10ºC---+200ºC(300ºC) Ferformance Temp.&Humi,Constancy ±0.3ºC Temp.&Humi,Constancy ±0.1ºC AT 200ºC;±1.5% AT 300ºC Indication Resolution 0.1ºC/1ºC Heat-up Time( min.) Approx.60min. Material Exterior Iron Sheet+Baked Enamel Interior SUS#304 stainless steel piate Insulation Fiberglass Wool SYSTEMS Cirulation Circle Fen Heating Chrome Steel Strip Wire Heater Controller Electric Digital Control+S.S.R. door Single-Wing Double-Wing Other Components Environmental Control Indicator Lights, Experiment Separation Shelves(2 pcs). Sevey Devices Overheating Prevention Circuit breaker, Control System,Breakdown Indicator Light. Power Source[K.W.] AC 1Ψ 220V ; 3Ψ 380V 60/50Hz Any requested size and TEMP. range(max.1200ºC)will be considered.
Besides salt spray chamber, our business range also covers;
Temperature humidity chamber, Temperature humidity control cabinet, Walk-in environmental chamber,
Precision hot air oven, dustproof hot oven, Rain spray test chamber, Dust test chamber, Automatic glue
Dispensing machine, Thermal shock chamber, Temperature humidity & Vibration combined chamber,
Burn-in testing equipment, Steam aging test chamber, Ventilation aging test chamber, Vibration tester,
Tensile tester, Drop test machine, etc.
If you have any question, please feel free to contact us!
