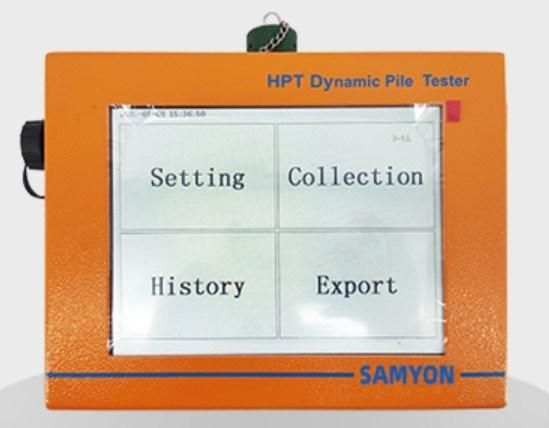

| (1) HPT used for determine the pile bearing capacity and pile integrity. |
| (2)It can be used for pile driving monitoring and the cast-in-place pile test. |
| (3)The cables and connectors can be used for other pile driving analyzer. |
| (3)Sampling frequency is Optional of 10 kHz, 20 kHz, 30 kHz and 40 kHz. |
| (4)Sampling points are optional of 1024, 2048 and 4096. Maximum sampling time is up to 400 ms |
| (5)Before test the two accelerometers and two strain transducers are self-checked automatically, determine whether the system is in normal state. |
| (6)Automatically check the static strain deviation of the strain transducer during installation and adjusted to zero before blow. |
| (7)Test data exported through the external u-disk |
| (8)During test every blow can be saved automatically |
| (9)Storage capacity of more than ten thousands blows. |
| (10)HPT can be used for pile driving monitoring and the cast-in-place pile |
| (11) HPT data can save as *.X01(used for PDA-W) |
| (12)The main cable and connecting cable are compatible with the PDA. |
| (13)Built-in lithium battery can be used more than 5 hours continuously. |
| (14)PDAR program carry on CASE method analysis. |
| (15)RCAPWAP program carry on match analysis automatically or manually. |
