• Model NO.：YT-YS05AKN
• Parallelism Between Plates：1.0mm
• Communication Interface：RS232
• Print：Built-in Thermal Printer
• Transport Package：Wooden Box
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-YS05AKN Parallelism Between Plates 1.0mm Communication Interface RS232 Print Built-in Thermal Printer Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

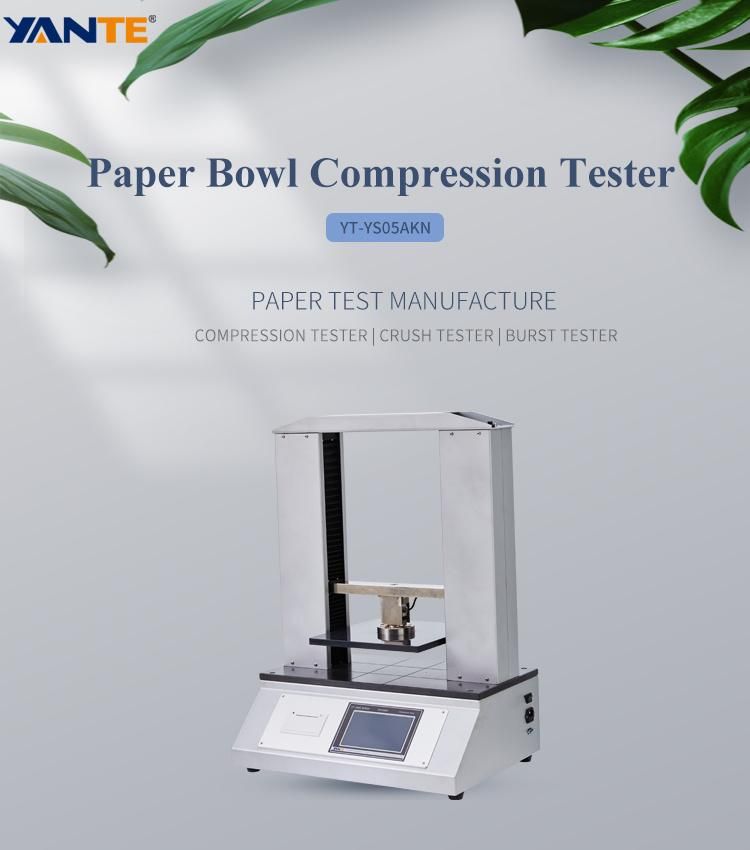

Paper Bowl Compression Tester is a testing instrument for measuring the compressive strength of paper bowls. It is an ideal testing equipment for paper bowl manufacturers, quality inspection agencies and other departments.



Application Range

various types of paper bowls, paper cups, small packaging boxes and other types of small containers.



Product Features

The ARM processor and 24-bit high-speed analog-to-digital converter improve the response speed and sampling accuracy of the instrument.
Closed-loop servo stepping motor, ball screw, dual optical axis guide, stable operation and precise positioning.
The 7-inch color touch screen displays the force-displacement curve in real time.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).


Executive Standard
GB T 27591



Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC(100~240)V,(50/60)Hz 100W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Display	7 inch color touch screen
4	Measuring range	5N~5kN
5	Indication accuracy	±1%(Range 5%~100%)
6	Measured Area	300×300 mm
7	Work Capacity	5~300 mm
8	Parallelism Between Plates	≤ 1:2000 (0.15mm)
9	The pressure plate shakes laterally	≤ 0.05mm
10	Press Speed	12.5±2.5 mm/min(1~500mm/min adjustable)
11	Return Speed	1~500 mm/min adjustable
12	Print	Built-in thermal printer
13	Communication Interface	RS232(Default) (USB, WIFI optional)
14	Dimension	545×380×825 mm
15	Net Weight	62.5kg around
