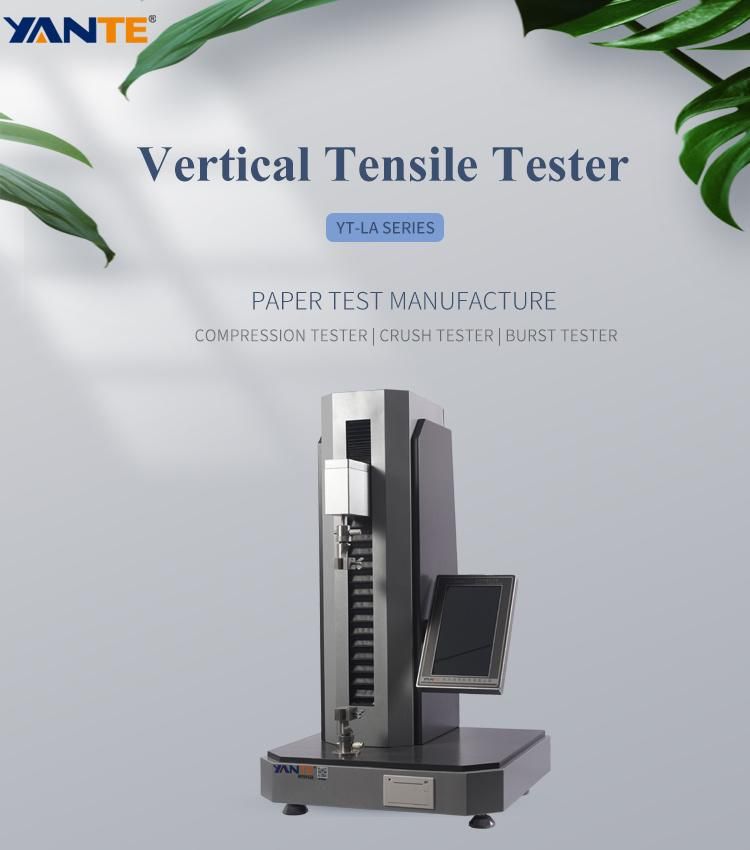

Yt-L Series Lab Equipment Paper Vertical Tensile Test Machine
Hangzhou Yante Science and Technology Co., Ltd.- Type:Tensile Testing Machine
- Display:Digital
- Power Source:AC220V
- Power Supply:AC (100~240)V
- Measuring Range:0.3~30,3~300, 5~500 N
- Elongation Accuracy:0.01mm
Base Info
- Model NO.:YT-LA series
- Tensile Velocity:1.0~480(Can Be Adjusted Digitally) mm,Min
- Sampler Length:35-300(Can Be Adjusted Digitally) mm
- Sampler Width:15,25,50 (Can Be Ordered) mm
- Print:Built-in Thermal Printer
- Communication Interface:RS232
- Dimension:400(L)*320(W)*990(H) mm
- Net Weight:Net Weight
- Transport Package:Wooden Box
- Trademark:YANTE
- Origin:Hangzhou China
- HS Code:9024800000
Description
Basic Info.
Model NO. YT-LA series Tensile Velocity 1.0~480(Can Be Adjusted Digitally) mm/Min Sampler Length 35-300(Can Be Adjusted Digitally) mm Sampler Width 15,25,50 (Can Be Ordered) mm Print Built-in Thermal Printer Communication Interface RS232 Dimension 400(L)*320(W)*990(H) mm Net Weight Net Weight Transport Package Wooden Box Trademark YANTE Origin Hangzhou China HS Code 9024800000Product Description
Vertical Tensile Tester is used in papermaking, plastic film, chemical fiber, aluminum foil production and other industries and other production and commodity inspection departments that need to determine the tensile strength of objects.
Application Range
Paper, cardboard; aluminum foil, aluminum-plastic tape;
Plastic film and other non-metallic materials.
Non-woven fabric
Product Function
Measure tensile and tensile strength
Measuring elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, elastic modulus
Measure the peel strength of adhesive tape
Product Features
Closed-loop servo stepping motor, ball screw and three guide shafts provide stable and accurate transmission.
A 10-inch color LCD touch screen is used to display the stretching curve in real time.
The ARM processor and 24-bit analog-to-digital converter improve the response speed of the instrument and ensure the real-time performance of the measurement.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Features of automatic reset, data memory, overload protection and fault self-diagnosis.
Cooperate with computer software for communication (purchased separately).
Supporting Accessories And Consumable
No. | Accessory name | Model | Picture | Standard | Optional |
1 | Standard Distance Cutter | YT-Q15 | √ | ||
2 | Punch Standard Distance Cutter | YT-CQ15 | √ | ||
3 | Adjustable Paper Cutter | YT-TJD300 | √ |
Executive Standard
GB/T 12914,GB/T 2792,GB/T 24218.3,GB/T 1040,TAPPI T 494
Technical Parameters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100~240)V,(50/60)Hz 100W |
2 | Working Environment | Temperature(10~35)ºC, Humidity≤ 85% |
3 | Display | 10 inch color touch screen |
4 | Measuring range | (0.15~30)N /(1~300)N /(3~1000)N |
5 | Display resolution | 0.001N(L30A) / 0.01N(L300A) / 0.01N(L1000A) |
6 | Indication error | ±0.5%(Range5%~100%) |
7 | Work stroke | 350mm / 900mm(customize) |
8 | Sample width | 15mm(25mm,50mmOptional) |
9 | Stretching speed | (1~500)mm/min(Can be adjusted arbitrarily) |
10 | Built-in thermal printer | |
11 | Communication Interface | RS232(Default) (USB, WIFI optional) |
12 | Dimension | 550 ×530 ×900 mm |
13 | Net Weight | 95kg around |
