• Model NO.：YT-NPY1600Q
• Power Source：AC220V
• Oil Cylinder Position：Top
• Power Supply：AC 220V±10% 50Hz 100W Can Be Customized
• Measuring Range：50~1600 Kpa
• Resolution：0.1
• Required Compressed Air：0.6-0.7MPa
• Air Pressure Regulating：0.15MPa
• Print：Built-in Thermal Printer
• Communication Interface：RS232
• Net Weight：56kg
• Transport Package：Wooden Cases, Inner Plastic Films Wrapped
• Trademark：YANTE
• Origin：Hangzhou, China
• HS Code：9024800000

Basic Info.

Model NO. YT-NPY1600Q Power Source AC220V Oil Cylinder Position Top Power Supply AC 220V±10% 50Hz 100W Can Be Customized Measuring Range 50~1600 Kpa Resolution 0.1 Required Compressed Air 0.6-0.7MPa Air Pressure Regulating 0.15MPa Print Built-in Thermal Printer Communication Interface RS232 Net Weight 56kg Transport Package Wooden Cases, Inner Plastic Films Wrapped Trademark YANTE Origin Hangzhou, China HS Code 9024800000

Product Description

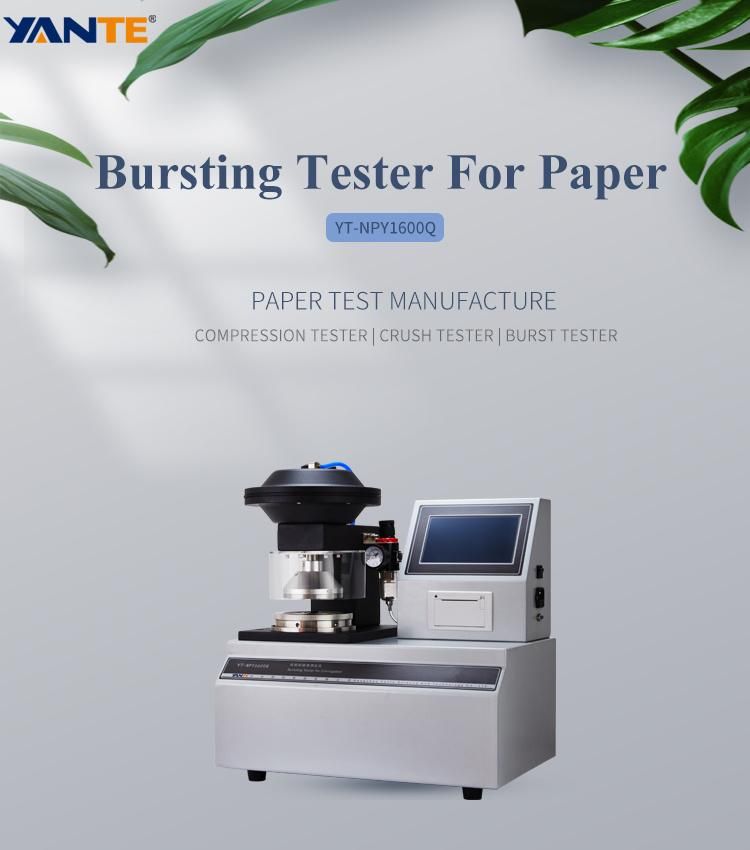

Bursting Tester for Paper is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the bursting strength of sheet materials such as paper. It is an indispensable ideal equipment for scientific research units, paper manufacturers, packaging industries, and quality inspection departments.

Application Range

All kinds of paper, cardboard, grey board paper, color box, and non-paper materials such as aluminum foil, film, rubber, silk, cotton cloth, etc.

Product Features

The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
Pneumatic clamping system, one key test
ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Over-range automatic reset
Three units can be selected kPa, kgf/cm2, Psi, can be switched at will
Communication with computer software (purchase separately)

Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Diaphragm for Paper			√
2	Dimethicone	201-50CS		√

Executive Standard

GB/T 454,QB/T 2679.8,ISO 2758


Technical Parameters


No.	Parameter item	Technical index
1	Power Supply	AC100V±10% or AC220V±10%,(50/60)Hz,150W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Measuring range	50~1600kPa
4	Indication error	±0.5%(Range 5%~100%)
5	Resolution	0.1kPa
6	Refueling speed	95±5 ml/min
7	Air pressure adjustment	0.15MPa
8	Hydraulic system tightness	Upper limit of measurement,1min Pressure drop<10%Pmax
9	Upper clamp ring aperture	30.5±0.05 mm
10	Lower clamp ring aperture	33.1±0.05 mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	470×315×520 mm
14	Net Weight	56kg around
