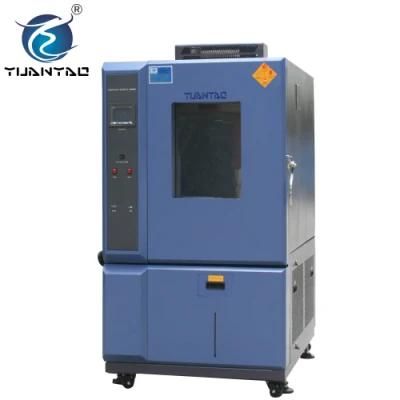

High Reliability Hass Testing Equipment for Testing Electronic
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YICT-800
- Loading Method：Dynamic Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC220V; AC380V
- Oil Cylinder Position：N,a
- Internal Size(Mm)：1000*1000*800
- Circulation：Sirocco Fan
- Insulation：PU&Fiberglass Wool
- Materia：Stainless Steel
- Warranty：12 Months
- Temp.Resolution：0.01 ºC
- Heating System：High Speed Heater
- Cooling：Air Cooling Condenser
- Customization：Inner Chamber Size, Temperature&Humidity
- Temp.Range：-70ºC-150 ºC
- Transport Package：Wooden Cases
- Specification：CE, TUV, SGS Certificate
- Trademark：Yuan Yao
- Origin：Guangdong, China(Mainland)
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description
ModelYICT-225 YICT-306 YICT-408 Inner chamber size
W×H×D (cm) 60×75×50 60×85×60 80×85×50 Exterior chamber size
W×H×D (cm) Depends on chamber design Testing temperature range '-70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR) Rapid-rate temperature range -55ºC~+85ºC;-40~+80ºC;-20~+80ºC; 0~+80ºC Temperature gradient 3ºC/min, 5ºC/min, 8ºC/min, 10ºC/min, 15ºC/min (linear or non-linear,empty loading),customization is available Temp. fluctuation ±0.3ºC Temp. uniformity ±1.5ºC(empty loading after stablize for 30 mins) Temp. resolution 0.01ºC Exterior chamber material Cold rolled plate + Powder coating Interior chamber material SUS#304 Stainless steel Insulation material PU+ fiberglass wool Circulation system Centrifugal fan air circulation system Heating system SUS# Stainless steel high-speed heater Refrigeration system Compressor + Finned evaporator + Air(Water) cooled condenser Controlling system Touch screen controller+SSR+PID Other components Test hole (50mm), Control status indicator, Interior light
Compartment shelf (2 freely adjustable) Safety protection device Overheat protection circuit breaker,Compressor overload protection
Control system overload protection, Overload indicator
Phase sequence protection, High voltage and low voltage protection
Over temperature protection, Fan overcurrent protection Power supply AC 3Ψ380V 60/50Hz Customization service Non-standard or special requirements are all welcome
5.Customization service is available, we can set & design equipments according to your own specific requirements!

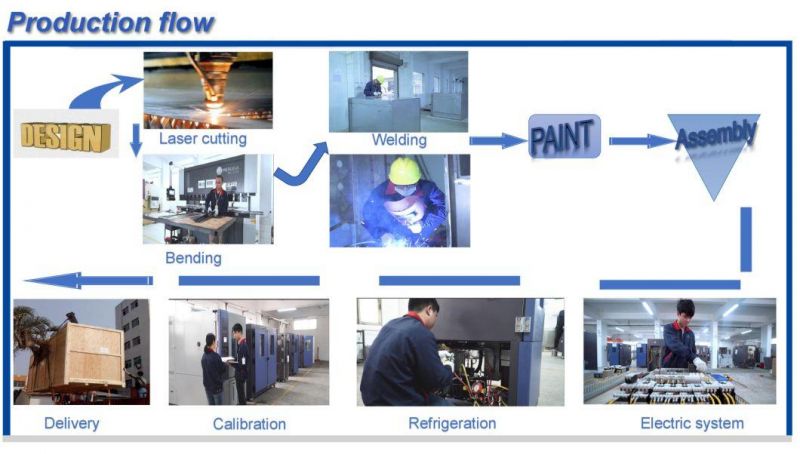

6.Production Line:
We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.
We produce in strict accordance with international safety standard.
Many stock spare parts in warehouse ensure customer can get soon when they need.
7.In the past years, Yuanyao has exported more than 2,000 chambers to more than 70 countries all over the world.
1. Pre-sale service : Confirm customer's requirement to send suitable proposal.
2. Make final confirmation before production(machine outlook design and technical parameters).
3. Update the latest production status to our customer and prepare full sets of machine operation documents and operation video(if customer need). We also welcome our customer to our factory for check before delivery.
4. After-sale service: Provide 1 years warranty for spare parts.

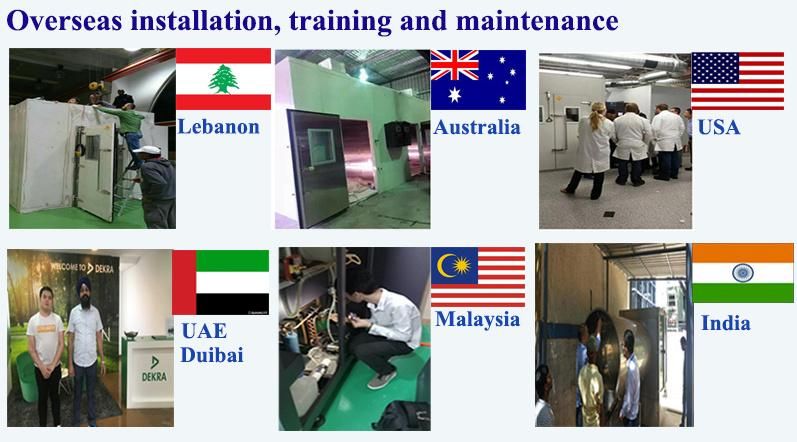

Overseas technical support and onsite installation is available.
24 hours standby on skype, wechat, phone,etc.
8.CE, SGS, ISO 9001:2015 certified manufacturer.
If you want to know more about the fast change temperature chamber,feel free to contact me any time.
Welcome to inquiry, and thanks for your reading !
