• Model NO.：AIC-3679
• Power Consumption：300W
• Power Supply：AC(220±10%)V, 50Hz
• Gas Source：Gas, LPG(or Other Civilian Fuels)
• Color：White
• Temperature Resolution：±0.1ºC;
• Display：LCD
• Test Method：Rapid Equilibrium Closed Cup
• Function：Determine Flash No-Flash and Flash Point
• Measuring Range：-30ºC~50ºC
• Language：English
• OEM Service：Available
• Transport Package：Plywood Case
• Specification：Automatic
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. AIC-3679 Power Consumption 300W Power Supply AC(220±10%)V, 50Hz Gas Source Gas, LPG(or Other Civilian Fuels) Color White Temperature Resolution ±0.1ºC; Display LCD Test Method Rapid Equilibrium Closed Cup Function Determine Flash No-Flash and Flash Point Measuring Range -30ºC~50ºC Language English OEM Service Available Transport Package Plywood Case Specification Automatic Trademark AI Origin China HS Code 9031809090 Production Capacity 20 Sets/Month

Product Description

Summary
This Flash no-flash and Flash Point instrument is designed and made as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can meet the requirements of rapid determination for closed cup flash point of petroleum products in oil,chemical, varnish, paint, railway, aviation, electricity, commercial inspection and science research institution.
This Flash no-flash and Flash Point instrument is specially suitable to determine different kinds of colored paints,oil paints, adhesives,solvents and petroleum products which the closed cup flash point is -30ºC~50ºC.The instrument is also correspond with ISO 1523 and ISO 3679.

I. Main technical features
1.Designed as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose of testing closed cup flash point rapidly and at low temperature.
2.The Flash no-flash and Flash Point instrument adopts semiconductor refrigeration device and external water cooling device.The size is small and cooling rate is rapid.Easy to operate.
3.Test sample needed is less.2ml for each time(4ml for solid sample and semi-solid sample)
4.The determination procedure is automatically completed except ignition.Test results can be printed automatically.

II. Main technical specifications
1.Flash point measuring range: -30ºC~+50ºC;
2. Precision of determination:it meets the standard GB/T 5208;
3. Temperature resolution:±0.1ºC;
4. Igniting device:Electric igniting gun
5. Cooling mode:Semiconductor(with cold water cycle at external connection)
6. Igniting source: gas,LPG(or other civilian fuels)
7. Power supply:AC(220±10%)V,50Hz
8. Total power consumption:<=300W;
9. Ambient temperature:5ºC~30ºC Relative humidity:(30~80)%
10. Dimension:490mm×520mm×390mm
11. Net weight: 25.5kg

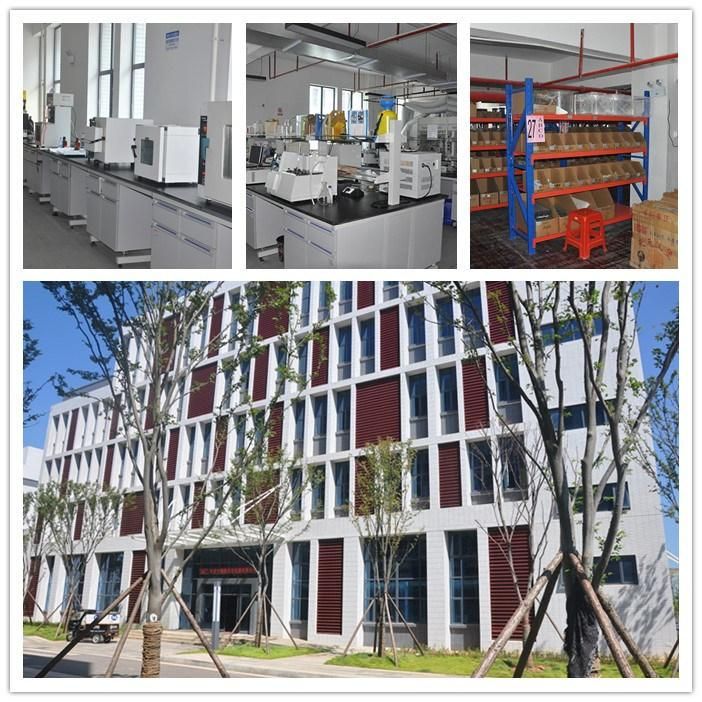

Factory overview

Customer Feedback

Germany

USA

Package

FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
