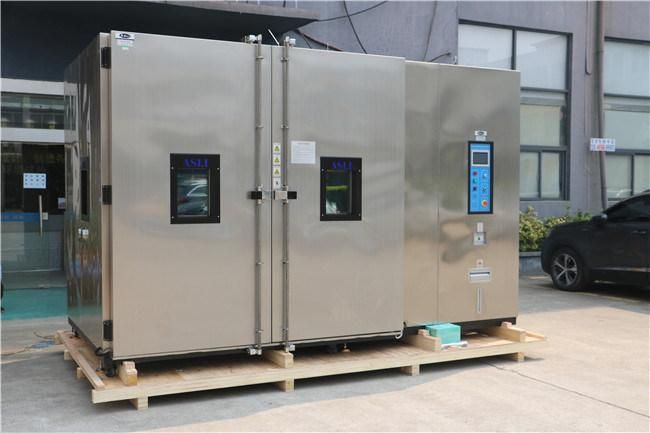

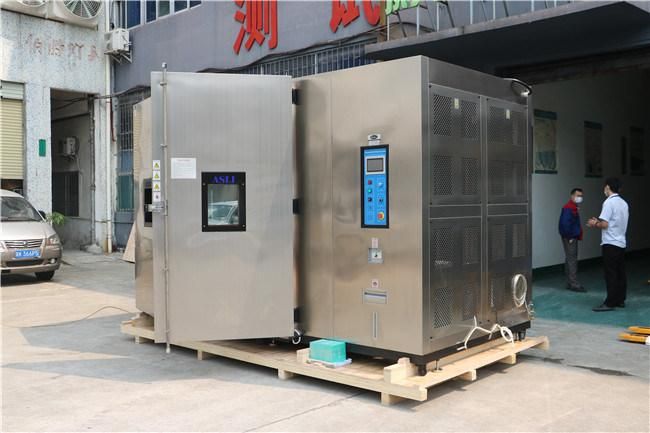

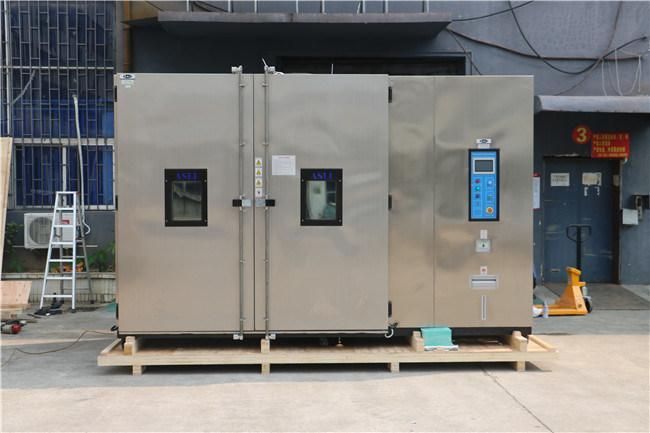

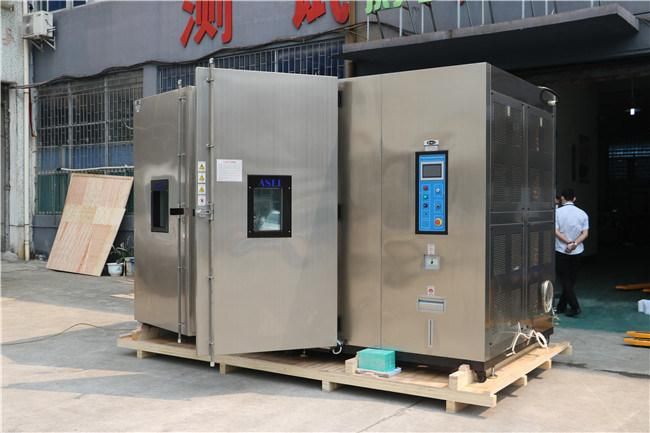

Best Price Programmable Walk-in Temperature Humidity Chamber for Lighting Fixture
Ai Si Li (China) Test Equipment Co., Limited- Certification：CE, TUV, ISO
- Warranty：1 Year
- Temperature Range：-70~+150 Degree C
- Humidity Range(Optional)：20%~98%R.H.
- Temp. Rising Speed：0.1~3.0degree C,Min
- Temp.Falling Speed：0.1~1.5degree C,Min
Base Info
- Model NO.：THR-Volume

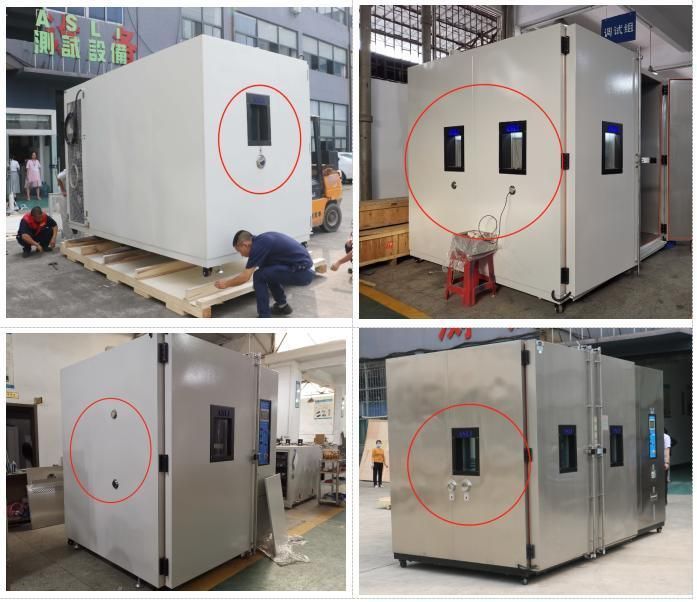

- Test Hole：Dia.100mm
- Communicate Interface：RS232
- Controller：Touch LCD Screen Display
- Cooling System：Water Cooling
- Transport Package：Wooden Case
- Specification：Internal dimension can be customized
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：8514109000
- Production Capacity：300 Sets, Year
Description
Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional)
Humidity Range
20%~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution / Distribution Uniformity of Temperature & Humidity
0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H.
Control Accuracy of
Temperature and Humidity
±0.5°C; ±2.5% R.H.
Temperature Rising/Falling
Velocity
Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System
Water cooled
Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories
Slope for cart , Recorder, Water Purifier, Dehumidifier
Compressor
French Tecumseh Brand, Germany Bizer Brand
Power
AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
Best Price Programmable Walk-In Temperature Humidity Chamber for Lighting Fixture Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
If you need Best Price Programmable Walk-In Temperature Humidity Chamber for Lighting Fixture, please don't hesitate to let us know.
