Digital Dial Gauge with Data Acquisition 12.7mm 25.4mm 50.8mm 100mm

Wuxi Serve Real Technology Co., Ltd.
  • Warranty：12 Months Free
  • Delivery Time：3-5 Working Days

Base Info

  • Model NO.：5mm 12.7mm 25.4mm 50.8mm 100mm
  • Measure Range：5mm, 12.7mm 25.4mm 50.8mm 100mm
  • Resolution：0.01mm
  • Data Acquisition：Yes
  • Supply Area：Global
  • Net Weight：1.5kg
  • Transport Package：Carton Case
  • Specification：Resolution 0.01 mm
  • Trademark：SEREV REAL
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：2000 Sets,Year
  • Package size per unit product：47.50cm * 18.00cm * 10.00cm
  • Gross weight per unit product：1.800kg

Description

Measuring range

0-5mm

0-12.7mm

0-25.4mm

0-50.8mm

0-100mm

Measuring force

<=1.5N

<=1.5N

<=2.2N

<=2.5N

<=2.5N

Resolution

0.01mm

0.01mm

0.01mm

0.01mm

0.01mm

Accuracy

<=±0.02mm

<=±0.02mm

<=±0.02mm

<=±0.03mm

<=±0.03mm



Features

High quality industry degree

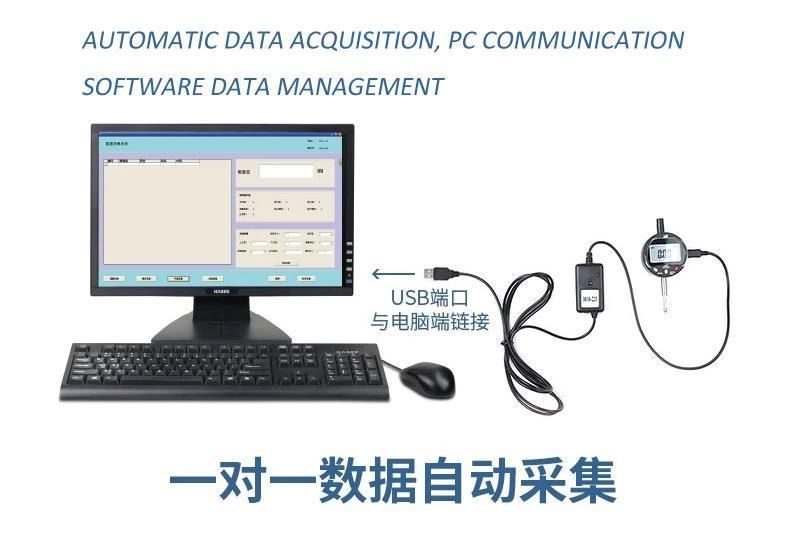

Automatic data acquisition, PC communication, 1 computer can connected max up to 32 gauges (with converter)

Standard /inch unit conversion

ABS original point measurement, no need repeated reset

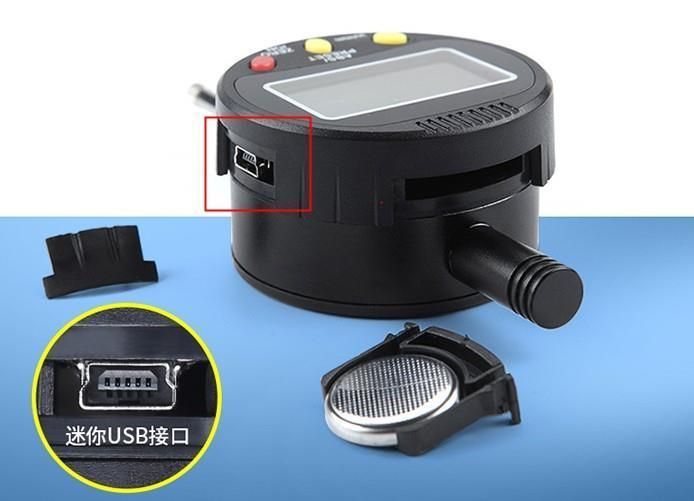

USB data interface, powerful Lithium battery

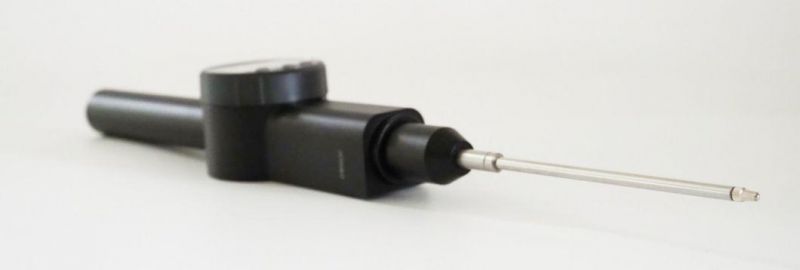

Detachable measure head, different head can be replaced on request

Quality glass displacement sensor, free to affects of ambient humidity, temperature, magnetic
Digital Dial Gauge with Data Acquisition 12.7mm 25.4mm 50.8mm 100mm
Digital Dial Gauge with Data Acquisition 12.7mm 25.4mm 50.8mm 100mm

Digital Dial Gauge with Data Acquisition 12.7mm 25.4mm 50.8mm 100mm
Digital Dial Gauge with Data Acquisition 12.7mm 25.4mm 50.8mm 100mm
