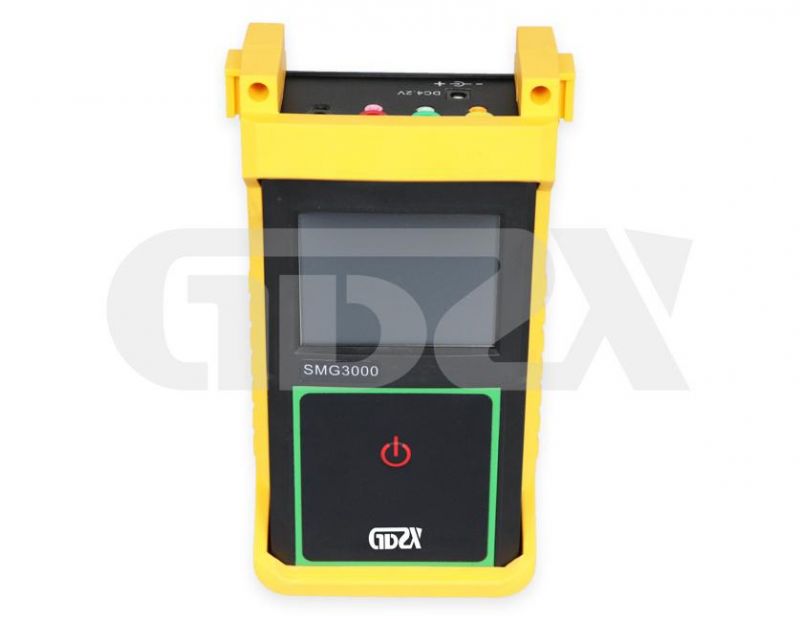

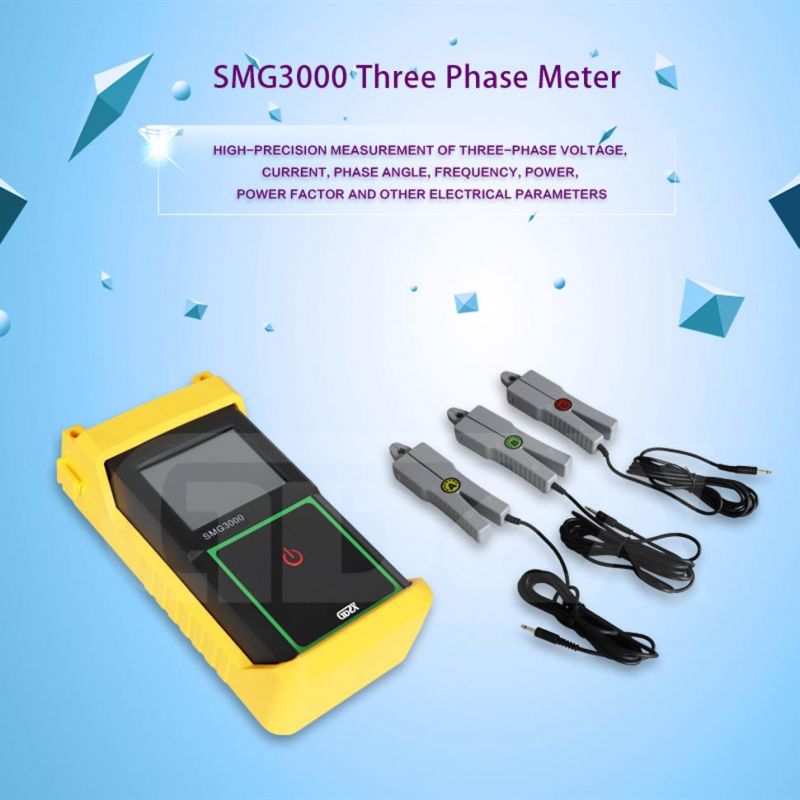

Multifunctional High Accuracy Handheld Three Phase Volt Ampere Meter
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Voltage：1~600Vac
- Current：0.001~20 Aac
- Active power：0.001~12000W
- Reactive power：0.001~12000Var
Base Info
- Model NO.：SMG3000
- Apparent power：0.001~12000VA
- Frequency：45~65Hz
- Phase Position：0~360 degree
- Power factor：-1~+1PF
- Transport Package：Wooden Case or Carton
- Specification：Universal Testing Machine
- Trademark：GDZX
- Origin：China
- Production Capacity：1200sets,Year
Description
Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service and Warranty
PACKING AND SHIPPING

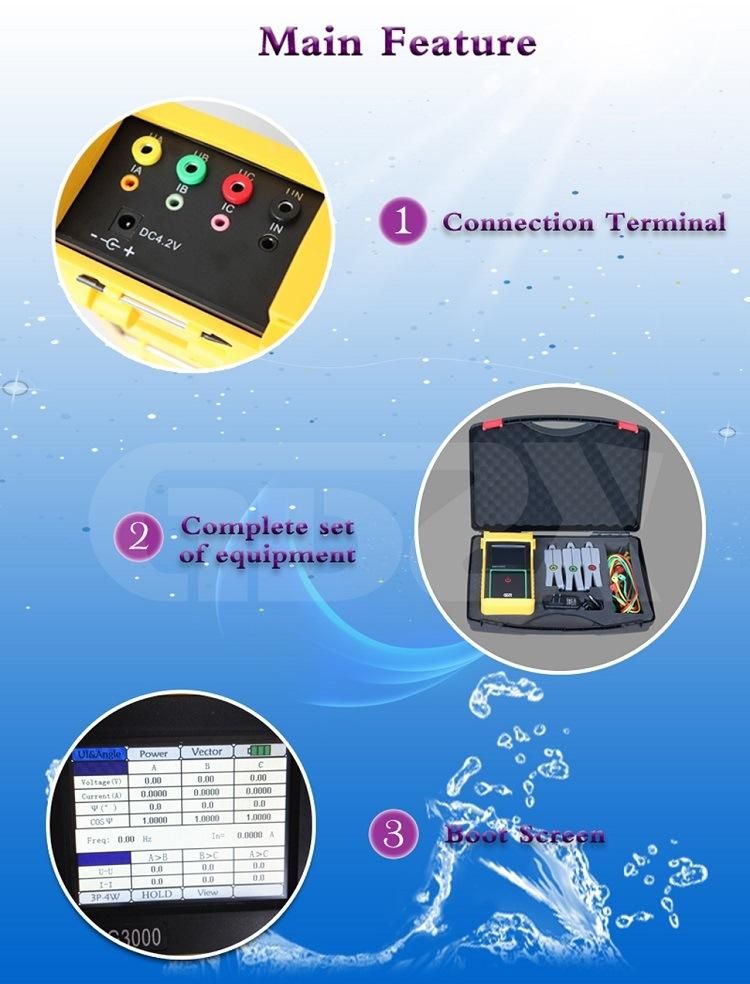

Features
1. Three-phase voltages and four channel current (including neutral line current) measurements
2. Three phase AC U-U, I-I, U-I angle measurement
3. System frequency and phase sequence measurement
4. Auto identifying transformer winding, capacitive and inductive load
5. Hexagon vector diagram display, colorful phase sequence analysis;
6. Active power, reactive power, apparent power, three-phase power, power factor measurements
7. Data storage and view function;
8. Static data save function;
9. TFT color display with finger touch screen
10. Lithium battery power supply, rechargeable continuous standby for more than 20 hours
