• Model NO.：JS-5
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Material：Metal House
• Color：White
• Power：110-220V,50-60Hz
• Accuracy：0.001mm
• Measuring Range：0~5000g
• Speed Resolution Accuracy：0.01mm,S
• Transport Package：Strong Carton
• Trademark：WANT
• Origin：Jiangsu
• HS Code：9031809090
• Production Capacity：6000pieces,Year

Basic Info.

Model NO. JS-5 Accuracy Grade 0.5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Material Metal House Color White Power 110-220V/50-60Hz Accuracy 0.001mm Measuring Range 0~5000g Speed Resolution Accuracy 0.01mm/S Transport Package Strong Carton Trademark WANT Origin Jiangsu HS Code 9031809090 Production Capacity 6000pieces/Year

Product Description

Application:

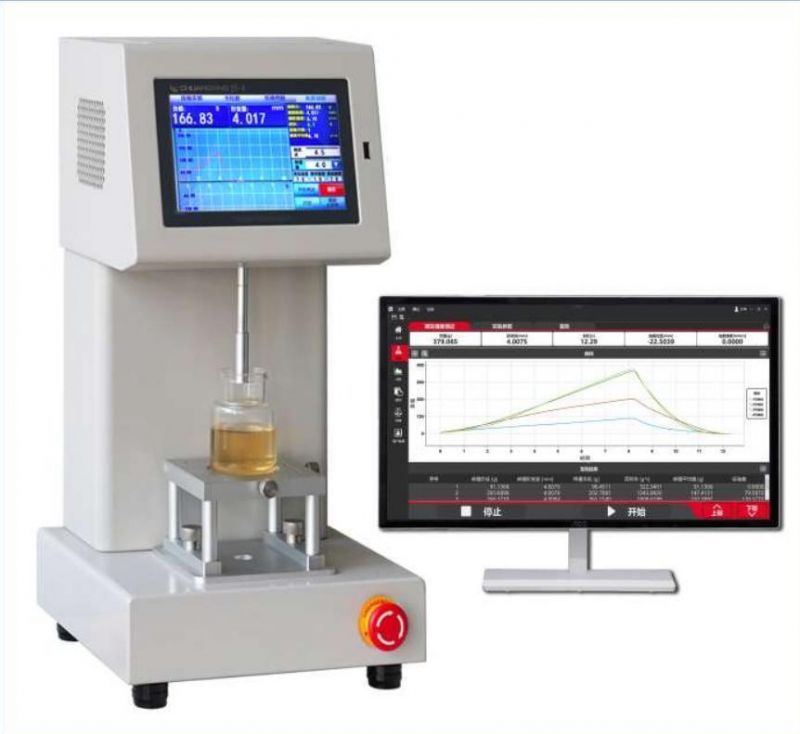

JS-5 Texture Analyzer is used in gelatin, carrageenan, Kodran gum, frozen surimi gel, agar compound hydrogel, pharmaceuticals, dairy products, meat Physical analysis of samples of products, cosmetics, cereals, oils, grains, fruits and vegetables, bread and biscuits, bakery products, candies, jams, etc.;
It can accurately quantify the freezing strength, hardness, brittleness, tenderness, elasticity, toughness, cohesion, cohesion, crispness, chewiness, Recoverability, rupture strength, shear strength, compressive strength, penetration strength, creep characteristics, relaxation characteristics and other physical property indicators.

JS-5 is suitable for various occasions in the laboratory and production fields. It can be connected to a computer and configured with professional version system software, providing richer parameter settings, more precise measurement control, implementation of larger data collection, and more accurate depiction Function curve, complete more professional data analysis.


Name	Gel strength tester
Measuring range	0~5000g (optional 0~500g, 0~1000g, 0~2000g, 0~5000g
Measurement accuracy	0.001g (real-time display)
Deformation displacement range	0~120mm
Displacement accuracy	0.001mm (real-time display)
Measuring speed range	0.01mm/s~10mm/s
Speed resolution accuracy	0.01mm/s

System Configuration
1. JS-5 tissue analyzer (texture analyzer) 1 set
 2. Load JS-5 tissue analyzer (texture analyzer) offline operation system software 1 set
3. Optional Texture Professional Edition DF2.70 computer control system software 1 set
4. 1 set of standard probes, 1 set
5. telescopic disc abutment (or multi-purpose fixture platform) 1 set
