Good Quality Famous Brand Secondary Injection Tester
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training, Reply Customer′s Question in 12h
- Warranty：365 Days
- Description：Famous Brand Secondary Injection Tester
- Other Name：Protection Relay Tester, Secondary Injection Tester
- Functions：Measure Parameters for Various Kinds of Relay
- Applicable Relay：Single Phase, Three Phase, Six Phase Relay
Base Info
- Model NO.：PRT
- Features：Sale Different Prices Secondary Injection Testers

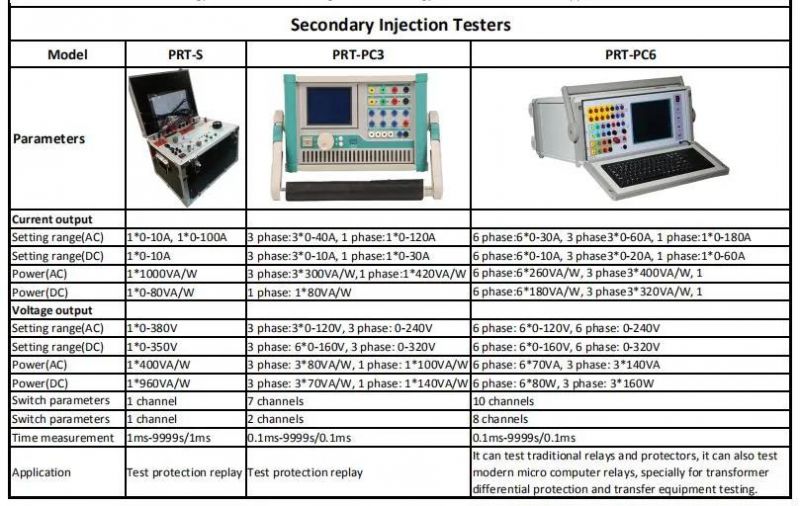

- Models for Choice：Prt-I, Prt-PC3, Prt-PC6
- Prt-I：for Single Phase Protection Relay Testing
- Prt-PC3：for Three Phase Protection Relay Testing
- Prt-PC6：for Six Phase Protection Relay Testing
- Power Supply：220V, 50Hz
- Transport Package：Secondary Injection Tester Packed in Veneer Case
- Specification：30kg
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets , Month
Description

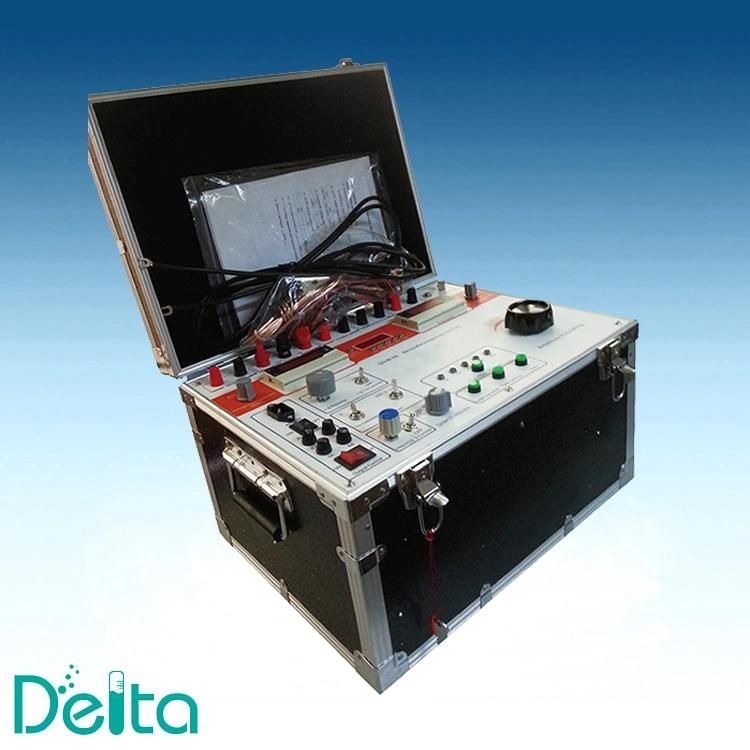

PRT-I Single Phase Secondary Injection Tester
PRT-I Secondary Injection Tester is applied to test protection replay based on voltage and current operation.
PRT-I Secondary Injection Tester is equipped with a fixed value output which can be used as a voltage source alone.
PRT-I Secondary Injection Tester adopts digital display with intuitive reading.
PRT-I Secondary Injection Tester has the characteristics of high precision, full function, stable, easy operation, light in weight. It' s a low cost, simple operation and reliable device for secondary circuit testing.

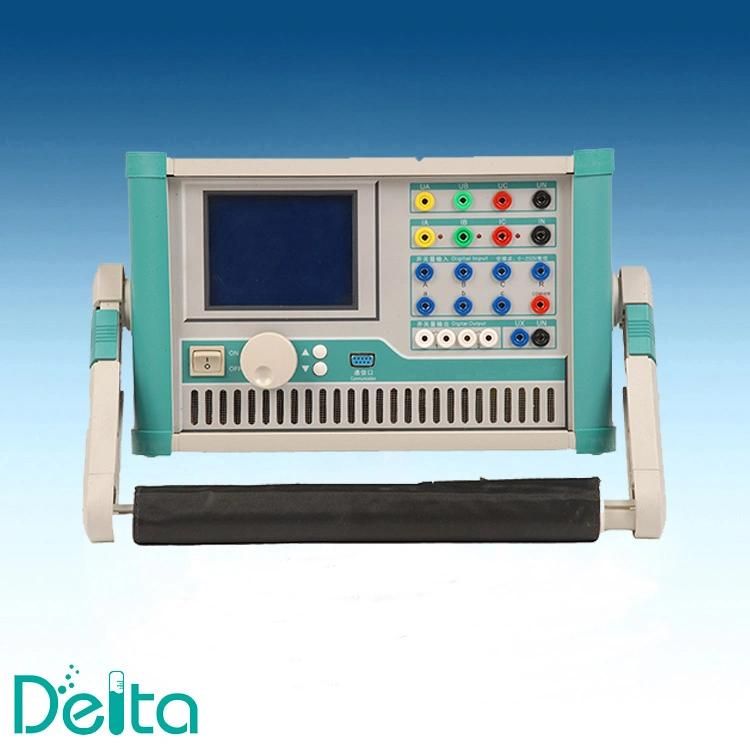

PRT-PC3 Three Phase Secondary Injection Tester
PRT-PC3 Secondary Injection Tester is applied to test the relay unit in relay protection system. At the same time it could be considered as a universal three phase AC/DC voltage source or current source.
PRT-PC3 Secondary Injection Tester is applied to test protection replay based on voltage and current operation.
The main function of PRT-PC3 Secondary Injection Tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
It's a low cost, simple operation and reliable performance device for secondary circuit test.PRT-PC6 Six Phase Secondary Injection Tester
RPT-PC6 Secondary Injection Tester with standard 6 phase voltage and 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A.
With digital Signal Processor Microcomputer, it can not only test the traditional relays and protectors but also can test the modern microcomputer relays, especially for transformer differential protection and transfer equipment testing.
Classic Windows XP operating interface, 8.4 inch resolution of 800*600 TFT true color display.
Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
USB directly connect with PC, without any adapter cable, easy to use.
Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
With a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
PRT-I Secondary Injection Tester is applied to test protection replay based on voltage and current operation.
PRT-I Secondary Injection Tester is equipped with a fixed value output which can be used as a voltage source alone.
PRT-I Secondary Injection Tester adopts digital display with intuitive reading.
PRT-I Secondary Injection Tester has the characteristics of high precision, full function, stable, easy operation, light in weight. It' s a low cost, simple operation and reliable device for secondary circuit testing.
PRT-PC3 Three Phase Secondary Injection Tester
PRT-PC3 Secondary Injection Tester is applied to test the relay unit in relay protection system. At the same time it could be considered as a universal three phase AC/DC voltage source or current source.
PRT-PC3 Secondary Injection Tester is applied to test protection replay based on voltage and current operation.
The main function of PRT-PC3 Secondary Injection Tester include: calibration of voltage and current operation relays, secondary circuit inspection,trip value of circuit breaker test, switch on and off time measurement of circuit breaker and so on.
It's a low cost, simple operation and reliable performance device for secondary circuit test.PRT-PC6 Six Phase Secondary Injection Tester
RPT-PC6 Secondary Injection Tester with standard 6 phase voltage and 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A.
With digital Signal Processor Microcomputer, it can not only test the traditional relays and protectors but also can test the modern microcomputer relays, especially for transformer differential protection and transfer equipment testing.
Classic Windows XP operating interface, 8.4 inch resolution of 800*600 TFT true color display.
Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
USB directly connect with PC, without any adapter cable, easy to use.
Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
With a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.
