• Model NO.：CBA-III
• Features：IEC62771 Digital Automatic Switch Tester
• Control Method：Touch Screen Control
• Test Result Printout：Build-in Micro Printer
• Time Measurement：4000ms
• Data Transaction：Built-in 8g Storage Memory and 2 USB Interface
• Powery Supply：220V, 50Hz
• Packing Dimension：74cm * 45cm * 48cm
• Packing Weight：43kg
• Power Supply：220V, 50Hz

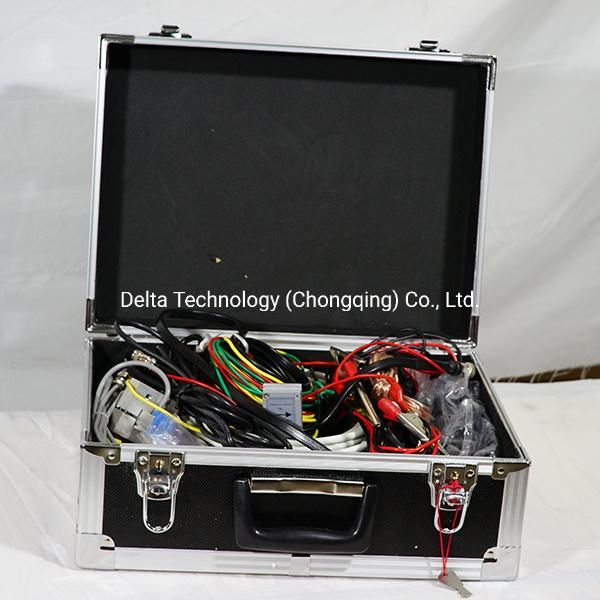

• Transport Package：Switch Tester Is Packed in Veneer Case
• Specification：74cm * 45cm * 48cm, 43kg
• Trademark：Delta
• Origin：China Mainland
• HS Code：9031809090
• Production Capacity：1000 Sets , Month

Overview Product DescriptionCBA-III Circuit Breaker High Voltage Switch Mechanical Properties Tester is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc.

CBA-III Product ParametersFeatures

Comparing with the traditional switch tester, the CBA-III Switch Tester has the following unique advantages:
The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.

The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure or faulty breakers, it can locate the fault position quickly.

The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.

Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.

Users can use CBA-III Switch Tester to complete the contact resistance tests, do not need to buy contact resistance tester separately.

Functions

Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.

Measurement of closing speed, opening speed and average speed.

Measurement of clearance between open contacts, over travel, overshoot travel and total travel.

Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current

Test travel time curve, speed time curve and acceleration time curve

Measurement of pre-insertion resistance value and pre-insertion ion time.

Test contact resistance

Measurement of dynamic resistance time curve and length for arcing contacts

Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.

CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.

Drawing Envelopes for reference travel curve and compare travel curve with envelopes

Mechanical travel curve automatic compare with saved travel curve

Measurement of CO time (close-open time) and OC time (Opening-Closing time)

Graphite contact closing time, opening time, dynamic resistance curve measurement

Zoom, editors, statistics and analysis for measurement curves.

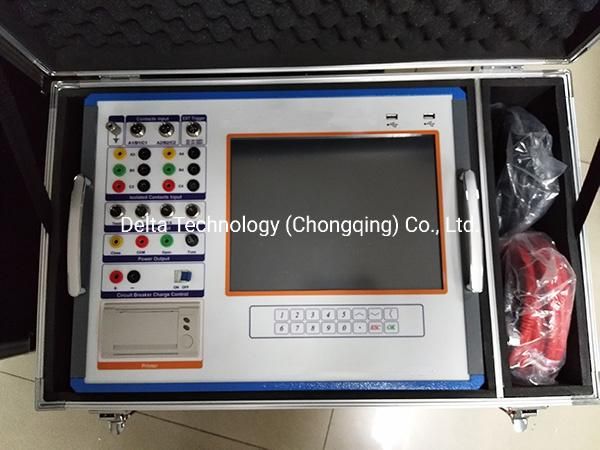

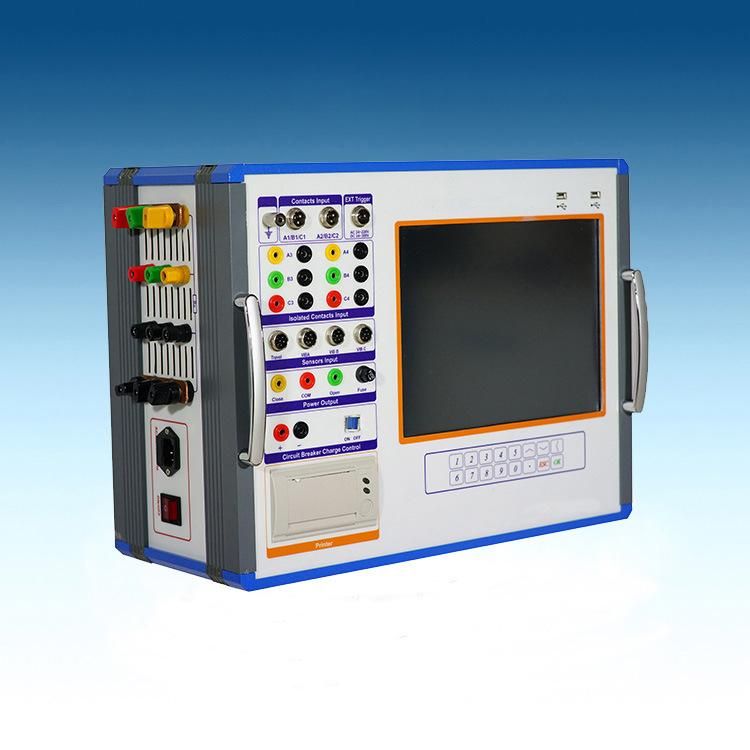

12.1-inch touch screen for control and data input     Built-in micro printer for test result printout.

Generate WORD format test report automatically (all reports and data can be exported through Flash disk).
