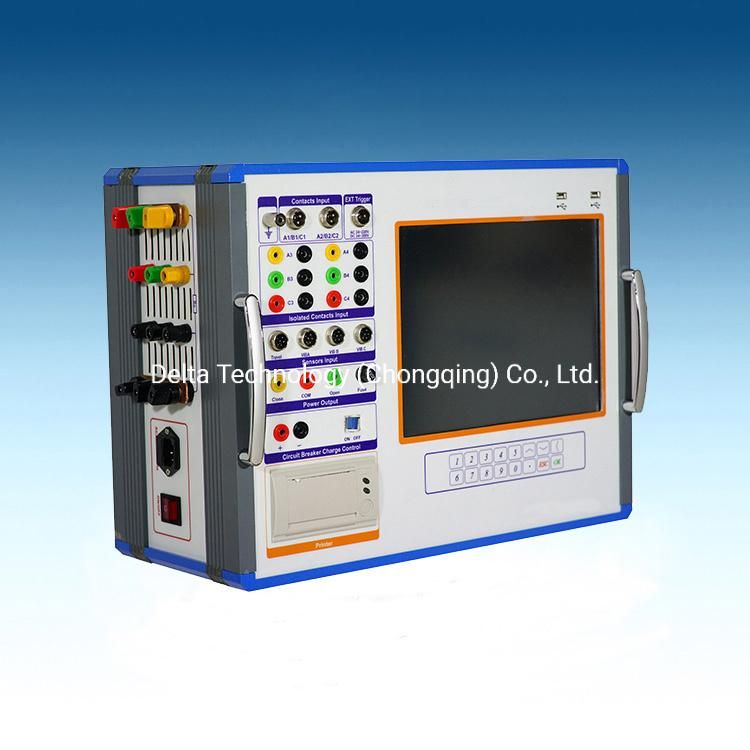

Touch Screen Cba Analyzer Comparable to Brand Circuit Breaker Analyzer
Delta Technology (Chongqing) Co., Ltd.- After-sales Service:Response on Customers′ Questions Within 12 Hours.
- Warranty:365 Days
- Description:Touch Screen Cba Analyzer Circuit Breaker Analyzer
- Usage:Analyze The Performance of Circuit Breaker
- Application Field:Electrical Industry, Circuit Breaker Manufacturer
- Measured Parameters:Almost All Parameters of Circuit Breaker
Base Info
- Model NO.:CBA-III
- Features:Touch Screen Famous Brand Circuit Breaker Analyzer
- Control Method:Touch Screen Control
- Test Result Printout:Build-in Micro Printer
- Time Measurement:4000ms
- Data Transaction:Built-in 8g Storage Memory and 2 USB Interface

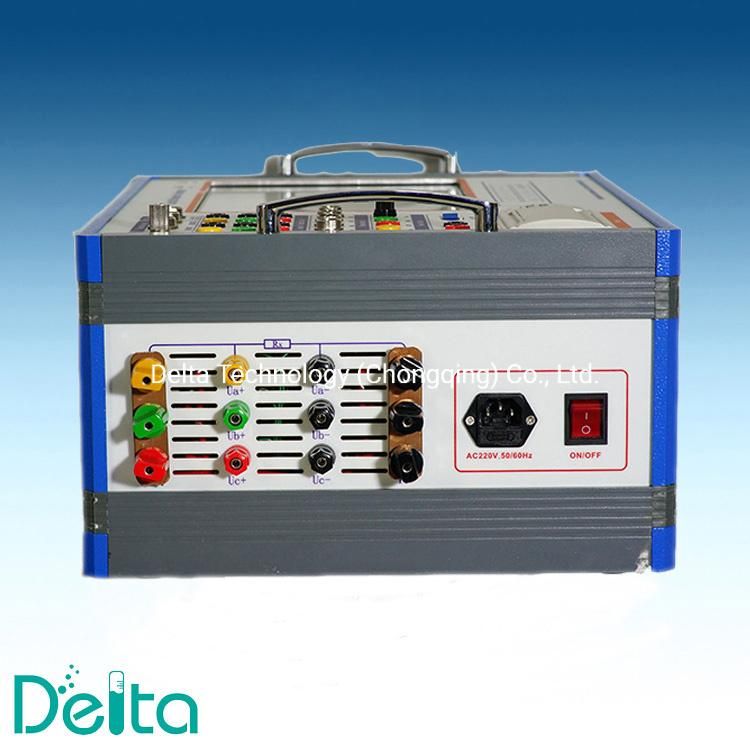

- Powery Supply:220V, 50Hz
- Packing Dimension:74cm * 45cm * 48cm
- Packing Weight:43kg

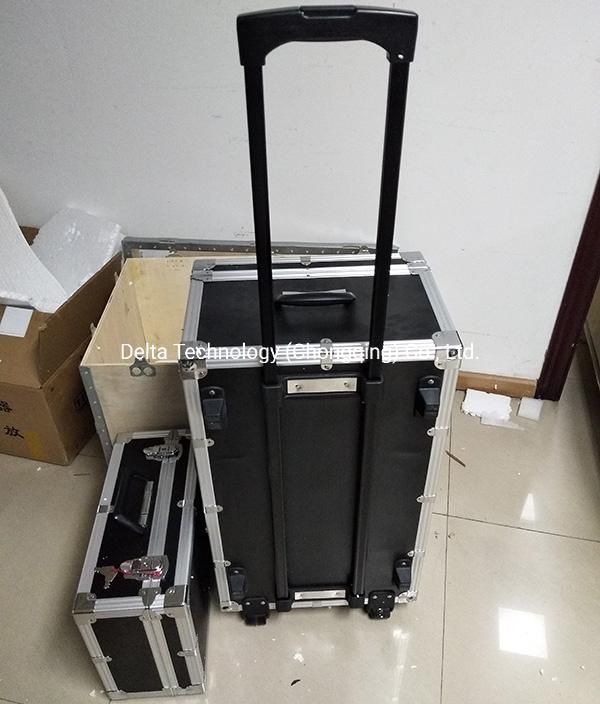

- Transport Package:Circuit Breaker Analyzer Is Packed in Veneer Case
- Specification:74cm * 45cm * 48cm, 43kg
- Trademark:Delta
- Origin:China Mainland
- HS Code:9031809090
- Production Capacity:1000 Sets , Month
Description
CBA-III Circuit Breaker Analyzer covers all testing items of high voltage circuit breaks.Product ParametersFeatures
Comparing with the traditional circuit breaker tester, this Circuit Breaker Analyzer has the following unique advantages:
The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure or faulty breakers, it can locate the fault position quickly.
The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.
Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.
Measurement of closing speed, opening speed and average speed.
Measurement of clearance between open contacts, over travel, overshoot travel and total travel.
Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current
Test travel time curve, speed time curve and acceleration time curve
Measurement of pre-insertion resistance value and pre-insertion ion time.
Test contact resistance
Measurement of dynamic resistance time curve and length for arcing contacts
Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.
CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.
Drawing Envelopes for reference travel curve and compare travel curve with envelopes
Mechanical travel curve automatic compare with saved travel curve
Measurement of CO time (close-open time) and OC time (Opening-Closing time)
Graphite contact closing time, opening time, dynamic resistance curve measurement
Zoom, editors, statistics and analysis for measurement curves.

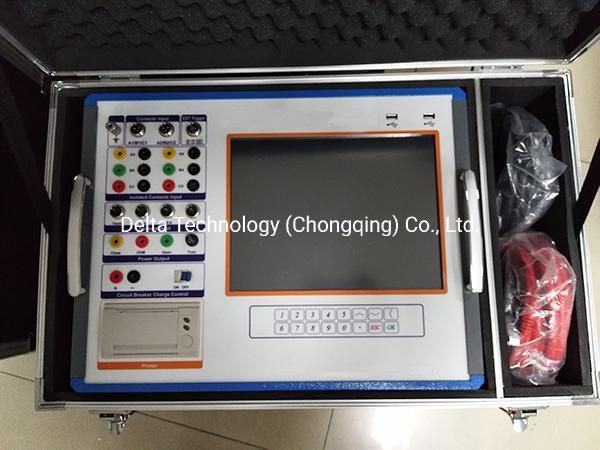

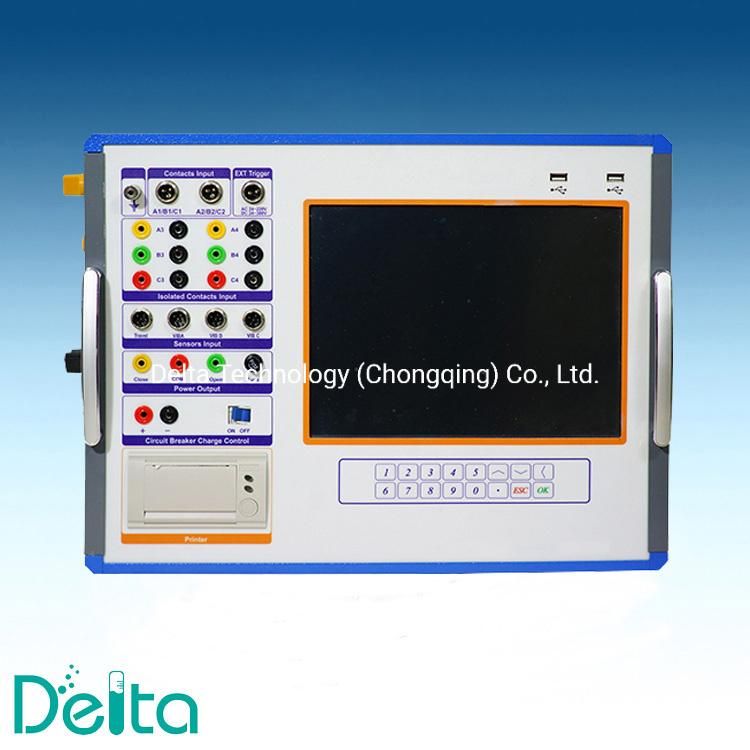

12.1-inch touch screen for control and data input Built-in micro printer for test result printout.
Generate WORD format test report automatically (all reports and data can be exported through Flash disk).
