Single Phase or Three Phase Portable CT PT Testing Equipment
Delta Technology (Chongqing) Co., Ltd.- After-sales Service：Online Training, Reply Customer′s Question in 12h
- Warranty：12 Months
- Description：Current and Voltage Transformer Tester
- Application：Measure All Kinds of Transformer, CT, PT
- Test Parameters：Almost All Parameters of CT, PT
- Certificate：CE
Base Info
- Model NO.：CPT-III
- Test Standards：IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5
- Features：Good Quality CT PT Testing Equipment
- Voltage Output：0.1-180V AC
- Current Output：0.001~5A RMS
- Power Output：500va
- Max. Knee Voltage Measurement：45kv
- Data Storage：>1000 Groups
- Display：Digital Display
- Operation：Touch Screen
- Size：485mm * 356mm * 183mm
- Weight：<15kg
- Transport Package：CT PT Testing Equipment Packed in One Veneer Case
- Specification：485mm * 356mm * 183mm
- Trademark：Delta
- Origin：China Mainland
- HS Code：9031809090
- Production Capacity：1000 Sets CT PT Testing Equipment, Month
Description

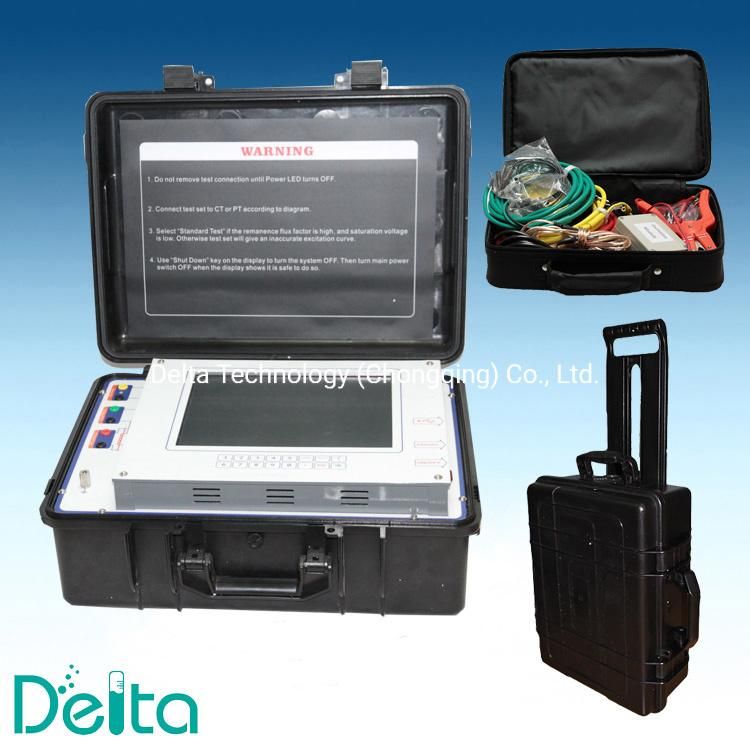

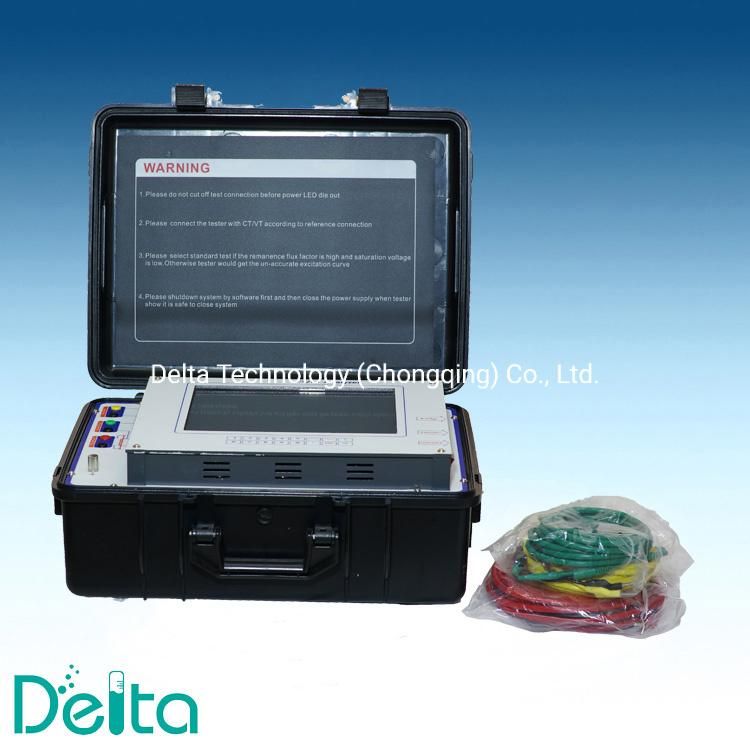

CPT-III CT PT Testing Equipment is used to measure all kinds of current transformer and voltage transformer.
CPT-III CT PT Testing Equipment can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one test.
CPT-III CT PT Testing Equipment can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified.
Features Make evaluation for test results according to selected standards.
Make word report for test result.
Make word reports one time for multi-group test records on the PC.
Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test.
Compare excitation curves with saved excitation curves in the same window.
