• Model NO.：YT-NPY5600Q
• Measuring Range：250~5600kpa
• Indicating Accuracy：±0.5% F.S
• Gross Weight：67kg
• Dimension：620(L)*420(W)*680(H)mm
• Packing：Wooden Box
• Transport Package：Wooden Case
• Trademark：YANTE
• Origin：Hangzhou China
• HS Code：9024800000

Basic Info.

Model NO. YT-NPY5600Q Measuring Range 250~5600kpa Indicating Accuracy ±0.5% F.S Gross Weight 67kg Dimension 620(L)*420(W)*680(H)mm Packing Wooden Box Transport Package Wooden Case Trademark YANTE Origin Hangzhou China HS Code 9024800000

Product Description

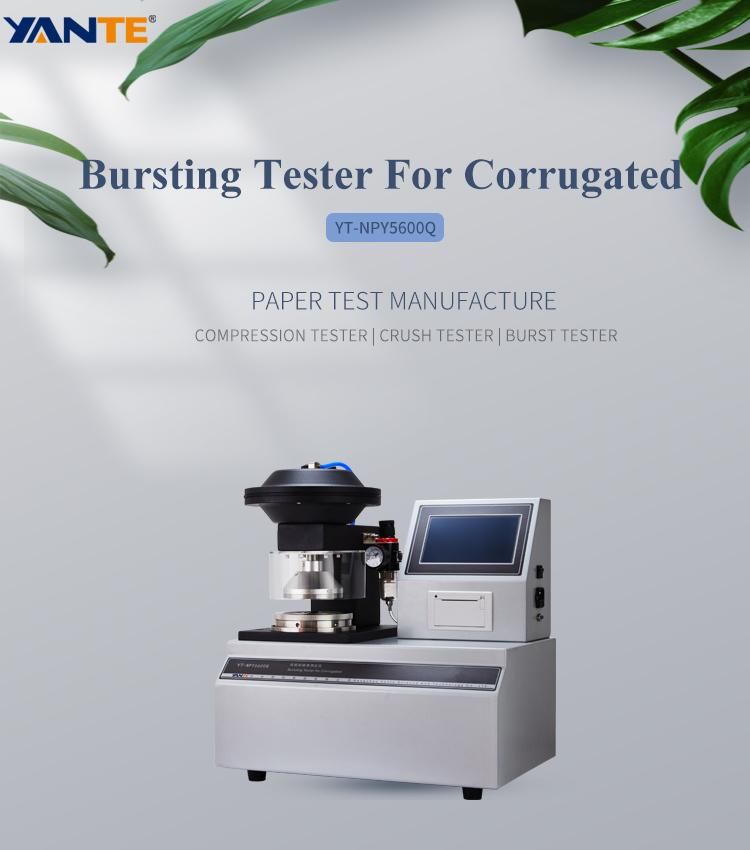

Bursting Tester for Corrugated is manufactured according to the internationally universal Mullen principle. It is a basic instrument for testing the breaking strength of cardboard; simple operation, reliable performance, and advanced technology; it is a scientific research unit, paper manufacturer, packaging industry, and quality inspection department Indispensable ideal equipment.

Product Features

The oil cylinder is driven by a stepping motor, the speed is stable, and the instrument can be used in a wide voltage range
Pneumatic clamping system, one key test
ARM processor, 24-bit ADC high-precision analog-to-digital converter, fast response speed, accurate measurement data
Using 7-inch color touch screen, Chinese display, touch buttons, real-time display of pressure curve
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Over-range automatic reset
Three units can be selected kPa, kgf/cm2, Psi, can be switched at will
Communication with computer software (purchase separately)

Application Range

Corrugated cardboard, cartons, paper trays, aluminum foil, film, rubber, silk, cotton and other non-paper materials



Executive Standard

GB/T 1539,QB/T 2679.8,GB/T 6545,ISO 2759


Supporting Accessories And Consumable

No.	Accessory name	Model	Picture	Standard	Optional
1	Diaphragm for Board			√
2	Dimethicone	201-50CS		√

Technical Parameters

No.	Parameter item	Technical index
1	Power Supply	AC100V±10% or AC220V±10%,(50/60)Hz,150W
2	Working Environment	Temperature(10~35)ºC, Humidity≤ 85%
3	Measuring range	250~5600kPa
4	Indication error	±0.5%(Range 5%~100%)
5	Resolution	1kPa
6	Refueling speed	170±15ml/min
7	Air pressure adjustment	0.4MPa
8	Hydraulic system tightness	Upper limit of measurement,1min Pressure drop<10%Pmax
9	Upper clamp ring aperture	31.5±0.05 mm
10	Lower clamp ring aperture	31.5±0.05 mm
11	Print	Built-in thermal printer
12	Communication Interface	RS232(Default) (USB, WIFI optional)
13	Dimension	470×315×520 mm
14	Net Weight	56kg around
