• Model NO.：hm6090
• Product Name：Circuit Breaker Contact Resistance Test
• .Measuring Range：0 ~ 2999.9μΩ
• Test Current：DC 50A, 100A, 150A, 200A, Fixed Output.
• Accuracy：±(0.5% Rd+2D)
• Continuous Working Time：5s~599s
• Communication Mode：USB
• Power Supply：AC220V±10% 50Hz
• Power of The Whole Machine：1200W
• Maximum Storage Record：200
• Standard：IEC
• Certificate：CE, SGS
• Model Name：Loop Contact Tester
• Display Screen：Lcb
• Transport Package：Wooden Box with Foam Inside

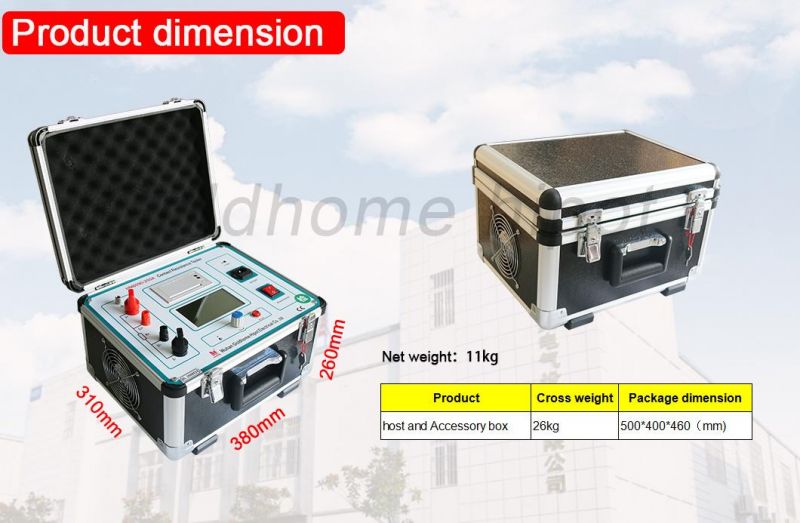

• Specification：380 * 300 * 260 mm3
• Trademark：HMDQ
• Origin：Hubei, China(Mainland)
• HS Code：9030332000
• Production Capacity：500set,Month

Basic Info.

Model NO. hm6090 Product Name Circuit Breaker Contact Resistance Test .Measuring Range 0 ~ 2999.9μΩ Test Current DC 50A, 100A, 150A, 200A, Fixed Output. Accuracy ±(0.5% Rd+2D) Continuous Working Time 5s~599s Communication Mode USB Power Supply AC220V±10% 50Hz Power of The Whole Machine 1200W Maximum Storage Record 200 Standard IEC Certificate CE, SGS Model Name Loop Contact Tester Display Screen Lcb Transport Package Wooden Box with Foam Inside Specification 380 * 300 * 260 mm3 Trademark HMDQ Origin Hubei, China(Mainland) HS Code 9030332000 Production Capacity 500set/Month

Product Description

hmdq  Goldhome Hipot  100A  200A Loop Contact Resistance Tester price

I.Brief Introduction
Circuit Breaker Contact Resistance Tester is mainly used for measuring contact resistance and loop resistance of switching control equipment, designed with High frequency switching power supply technology and digital circuit technology combined . The loop resistance can be directly measured at the current of 100A and 200A. The test results displayed on large LCD screen, with functions of data storage, output printing, time setting , etc .

The contact resistance of switchgear increases due to the oxidation of contact surface and poor contact fastening, etc. In the case of large current flow, the temperature of contact point rises, which accelerates the oxidation of contact surface and further increases the contact resistance. If it continues, serious accidents will occur. Therefore, it is necessary to measure the contact resistance regularly with loop resistance tester .

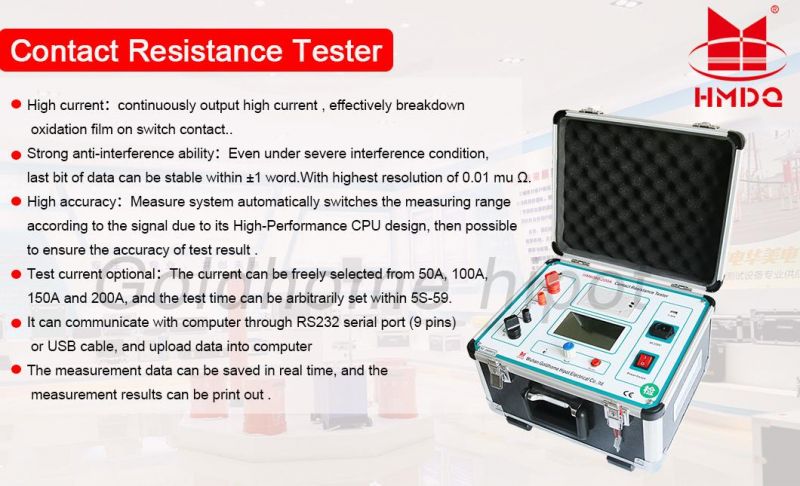

II. Main Features
1.Available to output large current continuously , effectively breakdown oxidation film on switch contact.
2.Even under severe interference condition, the last bit of data can be stable within ±1 word .
3.With highest resolution of 0.01 mu Ω.
4.The measure system automatically switches the measuring range according to the signal due to its High-Performance CPU design, then possible to ensure the accuracy of test result .And temperature protection circuit can automatically stop the output current when the instrument exceeds the setting temperature.
5.Temperature compensation circuit design can effectively eliminate the influence of ambient temperature on measurement results.
6.The current can be freely selected from 50A, 100A, 150A and 200A, and the test time can be arbitrarily set within 5S-59.
7.Friendly human-machine interface. The date and time can be set independently, the measurement data can be saved in real time, and the measurement results can be print out .
8.It can communicate with computer through RS232 serial port (9 pins) or USB cable, and upload data into computer
  Hot tags : Loop Circuit Resistance Tester, contact resistance tester, digital mirco ohm meter


III.Technical specification
1.Measurement range: 0~2999.9μΩ
2.Resolution: 0~99.99, 0.01μΩ
                  100.0~2999.9, 0.1μΩ
3.Measured current: DC 50A, 100A, 150A, 200A, fixed output.
4.Accuracy : ±(0.5% rd+2d)
5.Continuous working time: 5s~599s
6.Display :LCD
7.Communication mode: USB
8.Power supply: AC220V±10% 50Hz
9.Power of the whole machine:1200W
10.Maximum storage record: 200

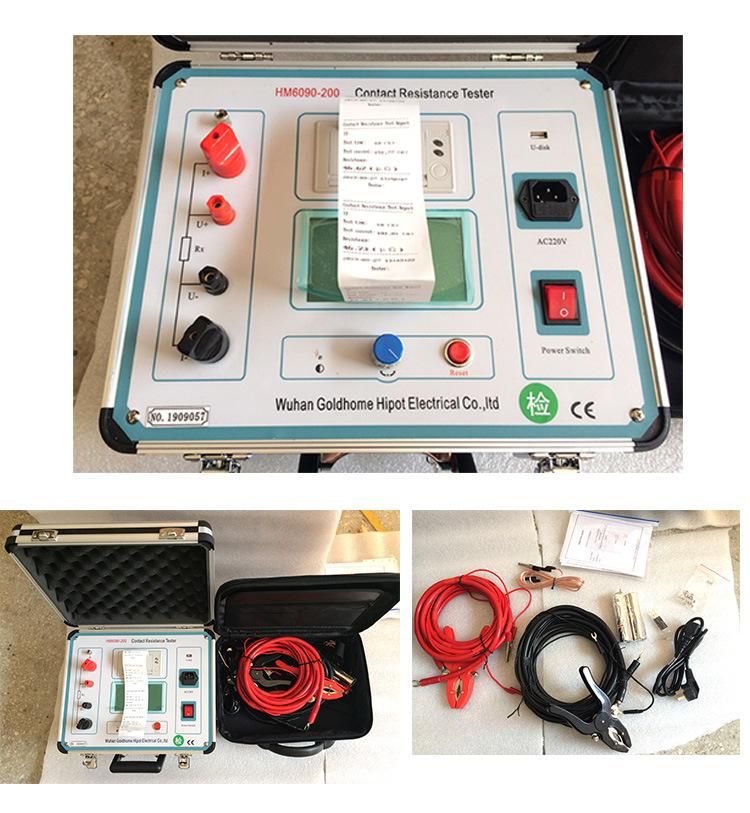

IV. Factory release test for HM6090-200A Circuit Breaker Contact Resistance Tester

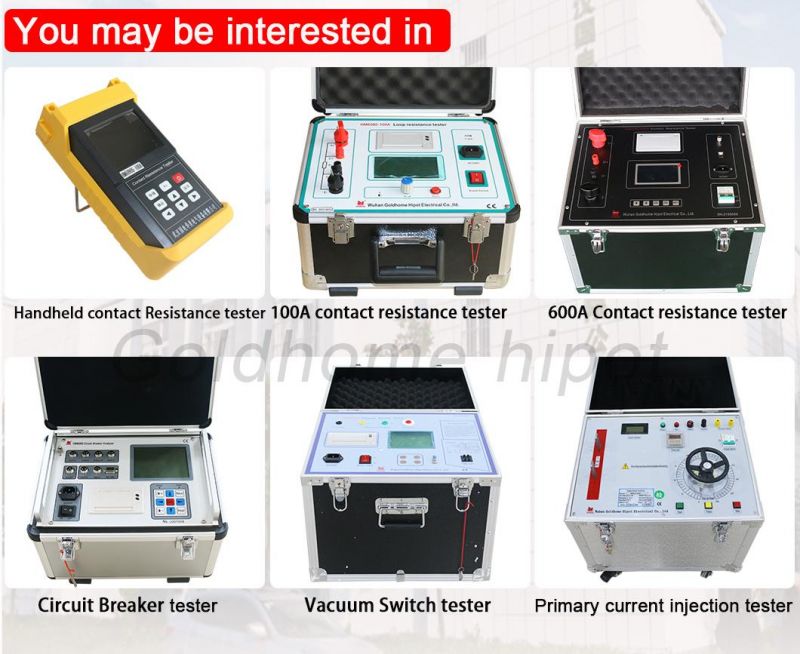

V. Related products

VI. RFQ                      1.How long is your delivery time ?
It depends on you product.
Conventional products we have it in stock,it can be delivery within 3-5 working days
customized product can be delivery within 10-15 working days.

2. Do you accept OEM order ?
Yes, OEM & ODM are acceptable.

3. What's your payment terms?
We accept T/T(50% down payment and 50% paid before delivery), Paypal, Western union, Money Gram and via Alibaba Insurance(Credit card(Visa,Master),E-checking,TT)

4. Can you afford calibration certificate ?
Yes , we can afford calibration certificate issued by third authoritative institution .

5. Do you have Technical Backup to all customers from different countries ?
Sure, we have rich-experienced engineer service you within 24 hours through phone call , email ,or on-line communication to solve your problems . And if if necessary ,  our engineer can visit your company to afford technical support face to face .
