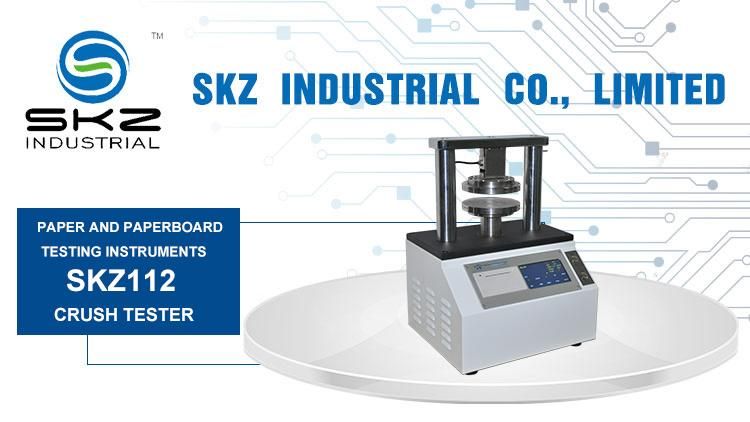

Lab ISO3070 ISO12192 ISO7263 ISO3035 Corrugating Medium Flat Crush Resistance Tester
SKZ International Co., Ltd.- Type：Crush Tester
- Display：Digital
- Power Source：AC220V
- Product Name：Skz112 Crush Tester
- Model：Skz112
- Standard：ISO
Base Info
- Model NO.：SKZ112
- Press Measuring Range(Kpa)：0-5kn
- Resolution：1n
- Printer：Mini-Type Printer
- Accuracy：1%
- Warranty：1 Year
- Net Weight：75kg
- Dimension：345mm*300mm*505mm
- Trademark：SKZ
- Origin：China
- HS Code：9024800000
Description
Basic Info.
Model NO. SKZ112 Press Measuring Range(Kpa) 0-5kn Resolution 1n Printer Mini-Type Printer Accuracy 1% Warranty 1 Year Net Weight 75kg Dimension 345mm*300mm*505mm Trademark SKZ Origin China HS Code 9024800000Product Description
Lab ISO3070 ISO12192 ISO7263 ISO3035 corrugating medium flat crush resistance tester
Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test.
We also have the accessories for its each test.
Standards:
ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011

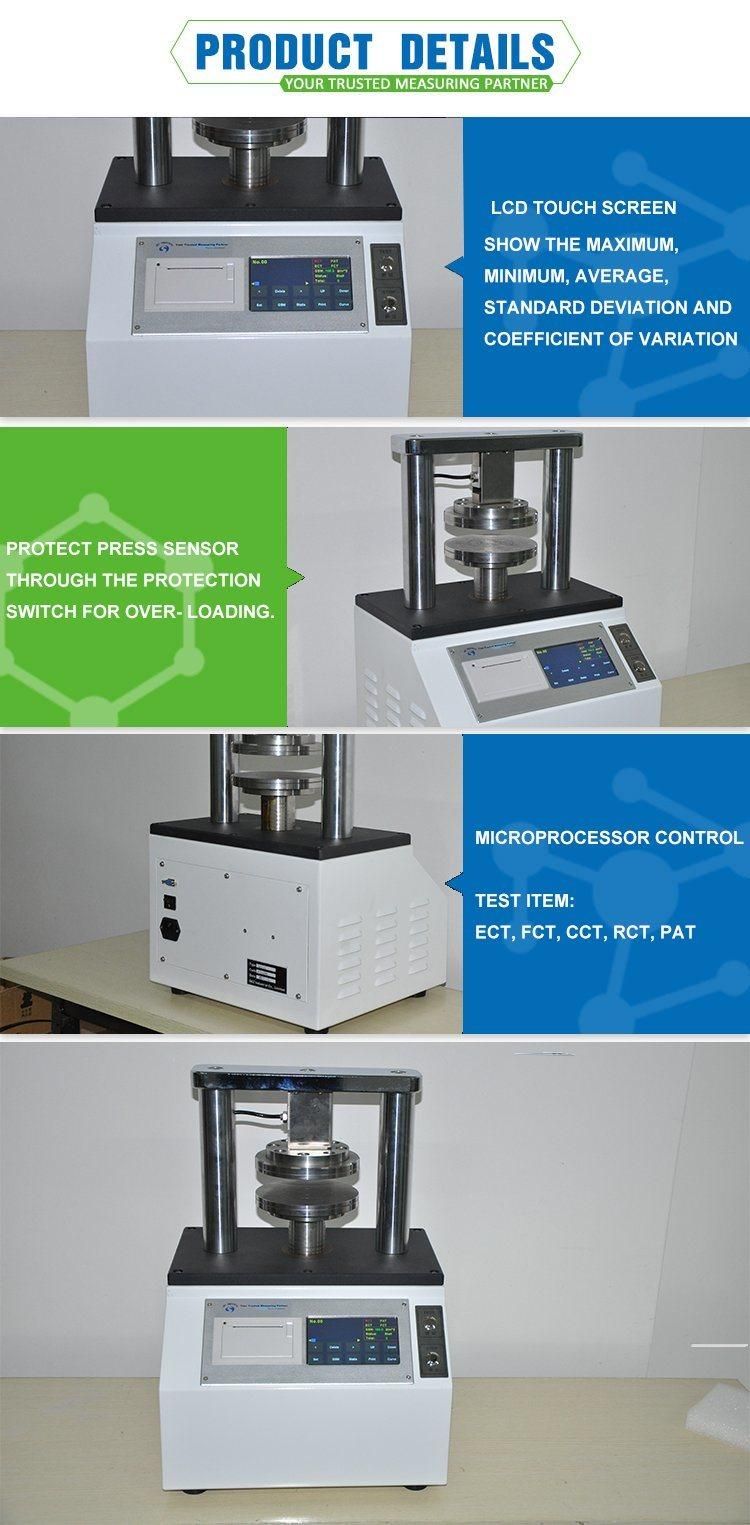

Feature:
1. Microprocessor control, automatically carry the test according to testing requests.
2. Protect press sensor through the protection switch for over- loading.
3. Analyzing the group of testing data and to show the maximum, minimum, average,
4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data.
Technical parameter:
| Press measuring range | 0-5KN |
| Resolution | 1N |
| Accuracy | ±1% |
| Speed | 12.5±2.5mm/min |
| Platen distance from top to bottom | 0-78mm (customized) |
| Printer | mini-type printer |
| Power | AC220V 50Hz 1A |
| Working condition | Temperature: 0-40ºC, relative humidity <85% |
| Dimension | 345mm×300mm×505mm |
| Weight | 75kg |
