Stroke 400mm Printer Built in 1n-500n Plastic Elongation Measure Instrument
SKZ International Co., Ltd.- Type:Tensile Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Static Load
- Display:Digital
Base Info
- Model NO.:SKZ101A
- Control:Computer Control
- Weight:1-500n
- Power Source:440V, 3 Phase
- Product Name:Skz101 Tensile Tester
- Measuring Range:1n-500n
- Accuracy:1%
- Response Time:5 Seconds
- Power:Electronic
- Power Supply:400W
- Application:Tensile Strength Test
- Warranty:1 Year
- Net Weight:110kg
- Dimension:410*430*1550mm
- Trademark:SKZ
- Origin:China
- HS Code:9024800000
Description
Basic Info.
Model NO. SKZ101A Control Computer Control Weight 1-500n Power Source 440V, 3 Phase Product Name Skz101 Tensile Tester Measuring Range 1n-500n Accuracy 1% Response Time 5 Seconds Power Electronic Power Supply 400W Application Tensile Strength Test Warranty 1 Year Net Weight 110kg Dimension 410*430*1550mm Trademark SKZ Origin China HS Code 9024800000Product Description

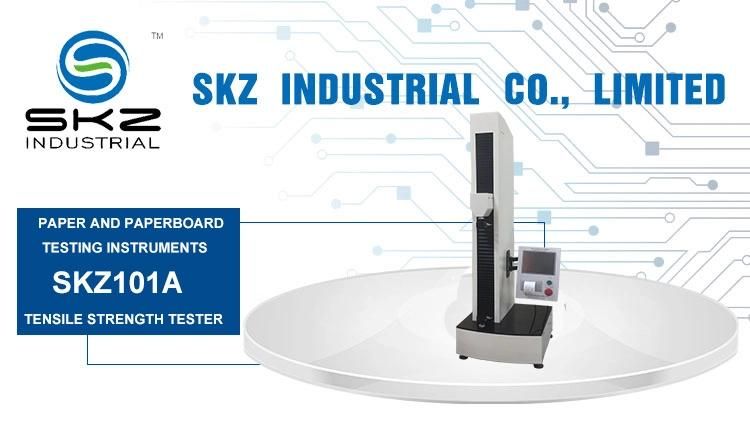

stroke 400mm printer built in 1N-500N plastic elongation measure instrument
It is used to test the Tensile strength test of paper and board, It adopts precise auto control and data acquisition system.

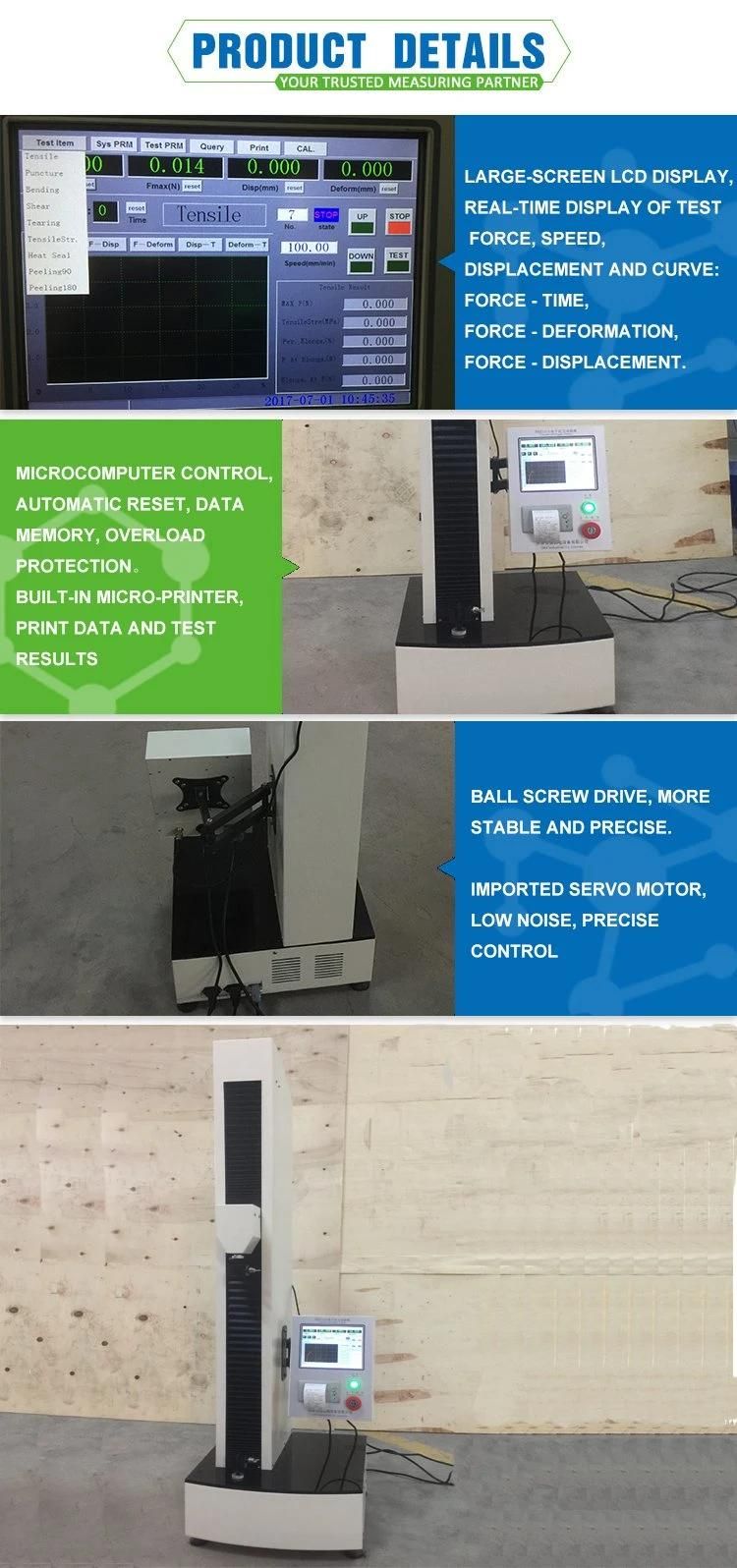

Feature
1) Color touch screen display.
2)The test force can be adjusted in a wide range, stable and effectively.
3) Display test force, test speed and displacement at real time.
4) It can automatically return to the original position after test.
5) With limit position protection, over load protection and over current protect.
6). Equipped with mini printer, test report can be printed out
Technical parameter
Max test force | 500N |
Precision of the equipment | 1% |
Measuring range | 1N-500N |
Relative error of indicating value | 1% |
Resolution of test force | 1/200000 |
Min reading value of deformation | 0.01mm |
Speed range | 1-500mm/min |
Stroke of crossbeam | 400mm |
Loading mode | Electrically |
Control mode | Micro-computer |
Voltage (should connect to the ground) | 440V, 3 phase |
Power | 400W |
Dimension of main machine | 410X430X1550mm |
Weight | 110kg |
