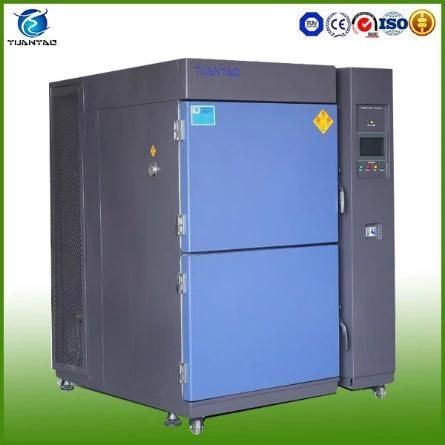

Cold Temp Cycling Shock Test Equipment
Guangdong Yuanyao Test Equipment Co., Ltd.- Type:Material Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Needle
Base Info
- Model NO.:YTST-050
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC110V
- Oil Cylinder Position:Under
- Inner Size (W*H*D):360*350*400mm
- Preheat Temp. Range:200 C
- Pre-Cool Temperature Range:-60 C, -70 C
- Test Temperature Range:60c-150c, -10c to -65c
- Temp. Control Accuracy:+,-2c
- Temp. Recover Time:Within 5minutes
- Heat up Time:150c,30minutes
- Cool Down Time:-50c to -65c,60minutes
- Exterior Chamber Material:Stainless Steel Plate +Powder Coated
- Insulation:PU&Fiberglass Wool
- Transport Package:Strong Wood Carton
- Specification:CE, SGS, TUV certified.
- Trademark:Yuanyao
- Origin:Dongguan, China(Mainland)
- HS Code:9031200000
- Production Capacity:100sets,Month
Description
ModelYTST-056 YTST-087 YTST-126 Internal Dim.W×H×D(mm) 400×350×440 500×350×500 600×350×600 External Dim.W×H×D(mm) 1500×2050×2120 1600×2050×2220 1700×2050×2320 Pre-heat Limit +200°C Pre-cool Limit -60°C -75°C Test Temp. Range +60°C ~+150°C; -10°C~-50°C; -10°C~-65°C Performance Temp. Constancy ±2°C Temp. Recover Time Within 5 mins Heat-up Time °C 150 150 150 min 30 30 30 Pull-down Time °C -50 -65 -50 -65 -50 -65 min 90 90 90 90 90 90 Material Exterior Stainless steel plate + Powder Coated Interior SUS # 304 stainless steel plate (Hairline Finish) Insulation PU & Fiberglasswool Systems Circulation siroco fan Heating stripped wire heater Refrigeration Compressor+Evaporator fins+water-cooling condenser Controller 1P Other Components Exper iment separation shelves(freely adjustable 2pcs) Safety Devices No fuse breaker,Motor overload protection High/low pressure shut off device,
Open door operation prevention switch, Flow switch protector cooling water. Power Source(K.W.) AC 1Ψ 220V;3Ψ 380V 60/50Hz 90 90 90 90 90 90
Open door operation prevention switch, Flow switch protector cooling water.
