• Model NO.：KMH-64R
• Trademark：KOMEG
• Origin：China
• HS Code：90321000
• Production Capacity：6000PCS,Year

Test Conditions

Cool method: air-cooled

Measured at a room temperature of +25 ºC under no load, the temperature and humidity performance test is measured according to the relevant regulations according to IEC 60068 -3; the sensor is placed at the air outlet of the air handling unit

 Temperature range-20ºC ~ +150ºCTemp. fluctuation±0.5ºCTemp. uniformity<=2.0ºCTemp. deviation<=±2.0ºCTemperature change rateHeat up rate: -20 ºC ~ +150 ºC, full range average speed approx. 45min; (empty load) Cooling rate: +150ºC ~ -40ºC, full range average speed approx. 60min; (empty load)Loadnone Humidity range20~98%R.H. Temperature & Humidity Control    Humidity Deviation

±3.0%RH (>75%RH)

±5.0%RH (≤75%RH)

 Humidity Uniformity±3.0%RH (empty load) Humidity Fluctuation±2.0%RH Noise<=75 (dB) (The noise detection device is measured 1m away from the door of the chamber)Construction type

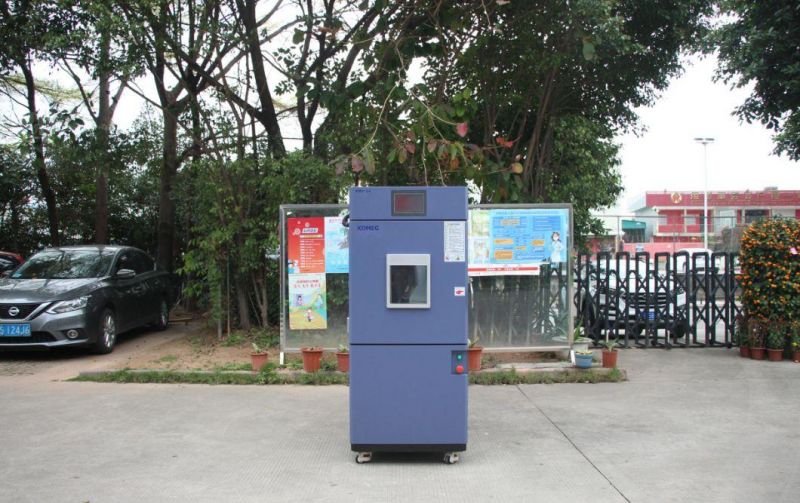

One-piece structure

The test chamber consists of three parts: the main insulation box, the independent refrigeration unit, and the electrical control cabinet.

 Thermal insulation structureOuter spray plastic anti-corrosion electrolysis plate - intermediate insulation layer is temperature resistant foam insulation material - inner box SUS304 stainless steel plate

4.3 Exterior

material

High-quality anti-corrosion electrolytic board, surface electrostatic powder baking paint, KOEMG standard color Interior material

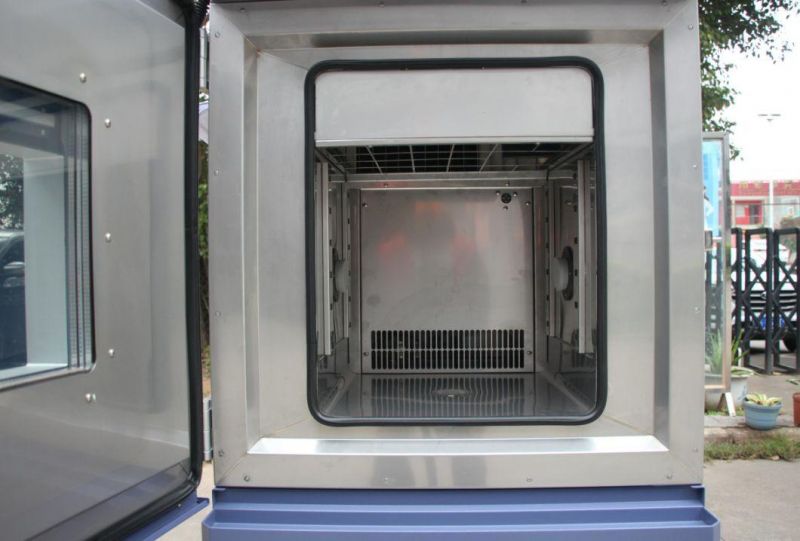

SUS304 stainless steel, thickness=1.0 mm; inner wall full-welded



 InsulationRigid polyurethane foam insulation layer, thickness = 100mm, flame retardant grade B2

Door



Full side open door, left open;

The door frame is equipped with silicone rubber sealing strips and anti-condensation electric heating device to prevent external condensation;

 Observation window

Observation window on the door (size of W330*H450mm)

Multi-layer vacuum glass window with electronic defogging film for heat and sweat protection, and prevents condensation.

Control panelTemperature (humidity) control touch screen display, start switch, emergency stop switch, buzzerRefrigerant unit

Including:

Refrigeration unit, drainage devices and pipes, cooling fan, power distribution control cabinet

Humidification and water supply waterway control system

Distribution cabinet

Distribution board

Small cooling fan

Total power leakage circuit breaker

Standard configuration









Cable port: dia.50mm*2 with silicone plug on both side, each side with 1 hole (confirm after contract signing)

Sample holder: 2 layers of drawer stainless steel sample holder, bearing capacity 30KG/layer

Window light: 1 ea (DC 24V LED light) (installed on the window, the switch is set on the external PLC touch screen, and has a delay automatic shutdown function)

Moving casters (with foot cups): 4 ea





Environmental test chamber Standard

GJB150.3 high-temperature testing

GJB150.4 low-temperature testing

GJB150.9 humid testing

GB11158 Technical conditions for high-temperature testing box

GB10589-89 Technical conditions for low-temperature testing box

GB10592-89 Technical conditions for high and low temperature testing box

B/T10586-89 technical conditions for humidity testing chamber

GB/T2423.1-2001 Low-temperature testing methods

GB/T2423.2-2001 High-temperature testing methods

B/T2423.3-93 Testing Method for humidity Test Chamber

GB/T2423.4-93 Alternating hot and humid testing method

GB/T2423.22-2001temperature testing method

IEC60068-2-1.1990 low-temperature testing method

IEC60068-2-2.1974 high-temperature testing method
