Single or Three Phase Transformer Turns Ratio and Group Vector Tester Power Transformer Excitation Current Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Type：Transformer TTR Tester
Display：Digital
Power Source：220V 50,60Hz( Support Customize 110V,127V)
Application：Turns Ratio and Group Vector Test of Transformer
Test Standard：IEC76-1 ,IEC60044
Ratio Measurement Range：1-10000

Base Info

Model NO.：GDBC-901
Group Measurement：1-12
Ratio Measurement Error：1-10000 ± 0.2%Rdg
Test Voltage：0~80V, Frequency 50Hz
Power Supply：AC220V ± 10%, 50Hz,60Hz
Phase Measurement Error：1 Degree
Transport Package：Plywood Case
Specification：22KG
Trademark：GOLD
Origin：Chongqing, China
HS Code：9030849000
Production Capacity：500 Pieces,Month

Description

22Kg

Product Details

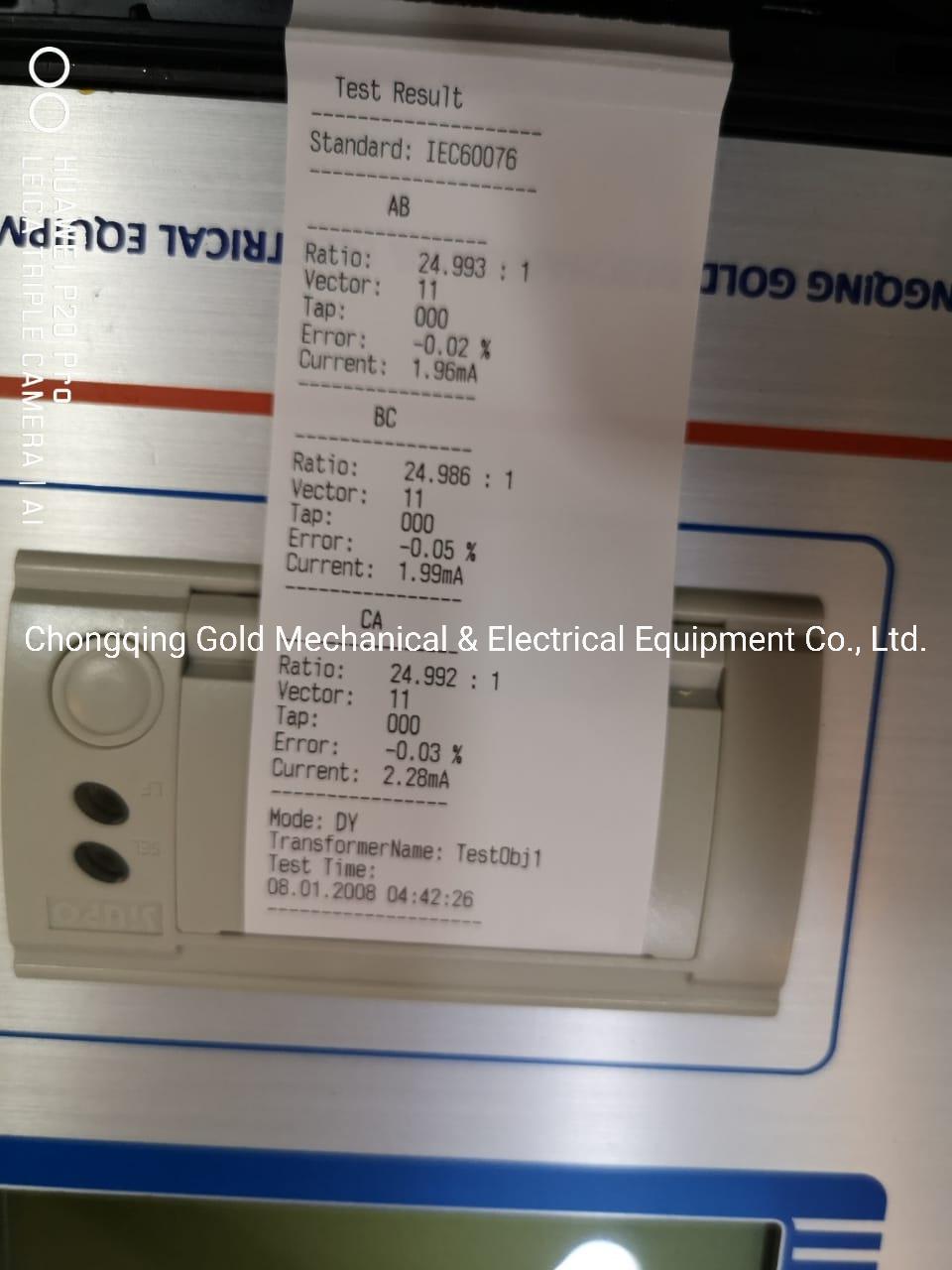

Test Results

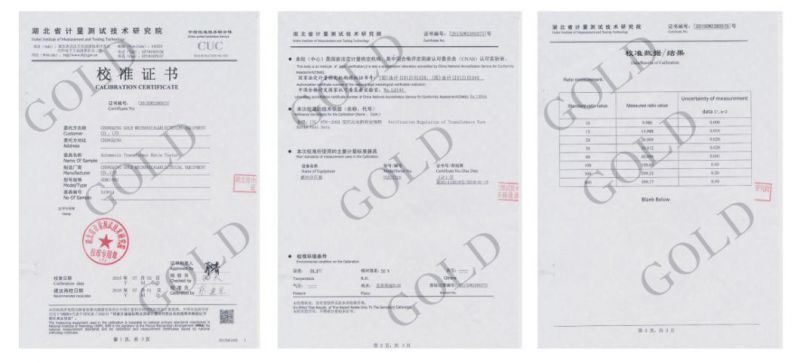

Certificate of Calibration

Customer Visit
Single or Three Phase Transformer Turns Ratio and Group Vector Tester Power Transformer Excitation Current Tester

Single or Three Phase Transformer Turns Ratio and Group Vector Tester Power Transformer Excitation Current Tester
