Test Instrument

New Type Sulfur Content Analyzer ASTM D4294 with 8-Inch Color Touch Screen

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Display:Digital
  • Weight:0-100Kg
  • Power Source:AC220V
  • Product Name:Sulfur Content Analyzer ASTM D4294
  • Standard:ASTM D4294
  • Display Method:8-Inch Color Touch Screen

Base Info

  • Model NO.:GD-17040
  • Measuring Range:0.0017%~5%
  • Detection Limit:17ppm
  • Oil Sample Quantity:3~5ml
  • Measurement Time:30, 60, 90, 120, 150s
  • Calibration Curve Numbers:It Can Save 10 Calibration Curves
  • Dimension:480*380*140mm
  • Transport Package:Wooden Case for Gd-17040
  • Trademark:GOLD
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:100 Sets, Month

Description

1Measuring range:0.0017%~5% 2Repeatability (r): <0.4347 X0.64463Reproducibility (R):<1.9182 X0.64464Detection limit:17 ppm5Oil sample quantity:3 ml-5ml.6Measurement time:it can preset 30, 60, 90, 120, 150s, measurement repeat times:1, 2, 3, 5, 10(times).
         ( The default measurement time of this instrument is 3 minutes, and the fastest measurement time is 1 minute.) 7Sample measurement: Automatic measurement of single sample, average value and standard deviation at the end of measurement. 8Calibration curve numbers:it can save 10 calibration curves. 9Working condition: Ambient temperature: (10~30)ºC
 Relative humidity: ≤85% (30ºC) 10Dimension:480mm×380mm×140mm11Weight:13kg.(Net weight)

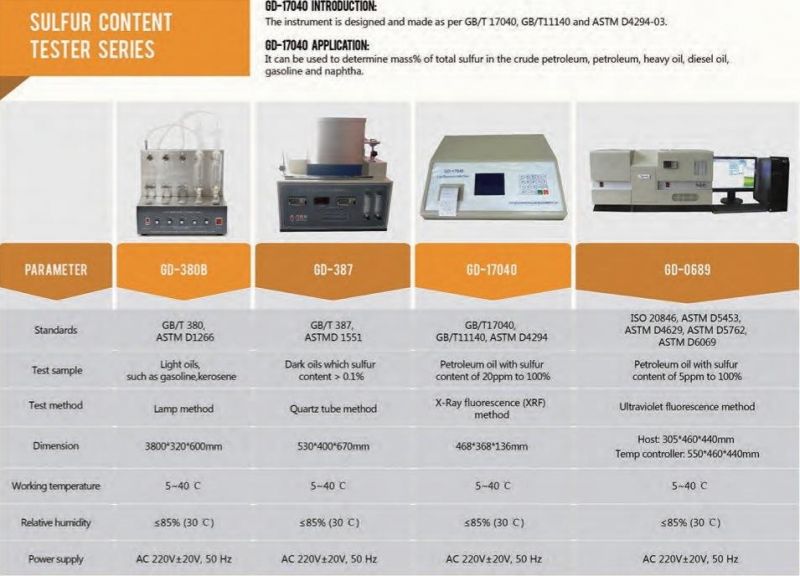

III, Related Instruments:
New Type Sulfur Content Analyzer ASTM D4294 with 8-Inch Color Touch Screen

Exhabition:
New Type Sulfur Content Analyzer ASTM D4294 with 8-Inch Color Touch Screen
Certificate:
New Type Sulfur Content Analyzer ASTM D4294 with 8-Inch Color Touch Screen

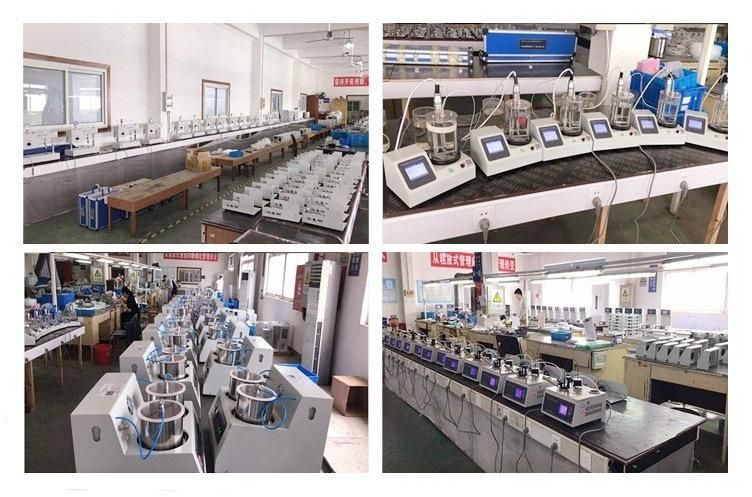

About us:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
