• Model NO.：FZ-31A
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：Digital
• Control：No
• Weight：20kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Fz-31A Le Chatelier Cement Water Bath
• Structure：Double Wall with Stainless Steel Tankinside and Ra
• Effective Capacity：31L
• Heating Time Controlling：3 Hours
• 2 Heating Elements：1kw and 3kw
• Power：AC220V, 50Hz, Single Phase
• Dimension：510X300X400mm
• Transport Package：Wooden Case
• Specification：0.1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FZ-31A Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 20kgs Power Source AC220V Oil Cylinder Position No Product Name Fz-31A Le Chatelier Cement Water Bath Structure Double Wall with Stainless Steel Tankinside and Ra Effective Capacity 31L Heating Time Controlling 3 Hours 2 Heating Elements 1kw and 3kw Power AC220V, 50Hz, Single Phase Dimension 510X300X400mm Transport Package Wooden Case Specification 0.1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

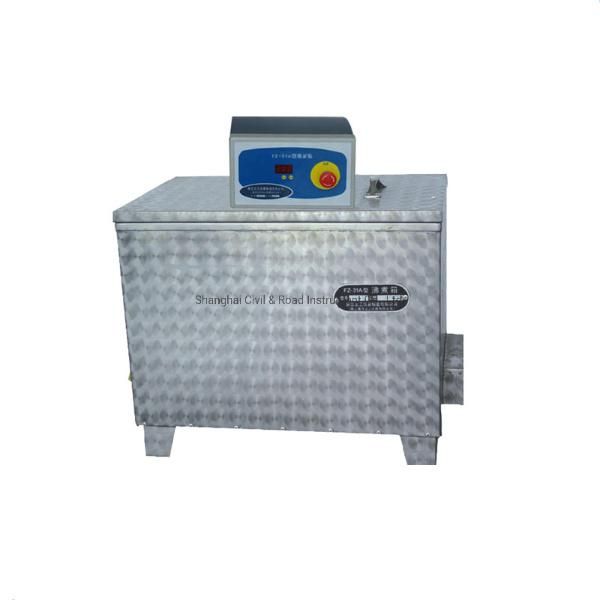

FZ-31A Le Chatelier Cement Water Bath

Use:
For use with Le Chatelier moulds for the determination of the soundness of cement paste. Stainless steel internal chamber housed in a stainless steel insulated exterior case. Power 1500 W capable of reaching the boiling point in 30 minutes.

It can control inside water temperature heating to 100 degree, wildly used to cement standard testing such as setting time, safety testing and so on.
Structure:
It consist of inside and outside cabinet, protect layer, pipe type heater, pipe joint, crust, control cabinet and so on.
Structure: Double wall with stainless steel tankinside and rack.

Technical parameters:

Effective capacity	31L
Heating time controlling	3 hours
2 Heating elements	1KW and 3KW, guaranteethat the water reaches boiling point within approx. 30 minutes, after which a timer cuts out the morepowerful element so that the task of maintainingthe water temperature is left to the second heatingelement.
Power	AC220V, 50HZ, single phase
Constant power	1000W
Max temperature	100 celcius degree
Heating time	30±5min
holding time	180 ± 5min
Chamber size	410×240×310mm
Capacity	Le Chatelier method 25pcs in as a group  Pat test method 30-40pcs as a group
Dimension	510x300x400mm
Weight	about 20Kg
