Semi Automatic Charpy Impact Test Instrument (JB-300B)

Jinan Kason Testing Equipment Co., Ltd.
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Impact Testing Machine
  • Maxcapacity：150j, 300j, 250j, 500j
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：JB-300B
  • Loading Method：Static Load
  • Display：Computer Display
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Product Name：Digital Charpy Impact Test Machine
  • Application：Impact Strength Test for Metal Materil
  • Pre-Rising Angle of The Pendulum：150c
  • Specimen Bearer Span：40+0.2mm
  • Round Angle of The Jaw：R1-1.5mm
  • Round Angle of Impact Edge：R2-2.5mm,R8±0.05mm
  • Angle Accuracy：0.1c
  • Standard Specimen Dimension：10mm*10(7.5,5)mm*55mm
  • Warranty：12months
  • Power Supply：3phs, 380V, 50Hz or 220V,60Hz
  • Transport Package：Standard Exporting Plywood Case
  • Specification：1000*1000*1560mm
  • Trademark：HST
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：100 Set,Month

Description

3phs, 380V, 50Hz/60Hz or Specified by usersDimensions (mm)2124 x 600 x 13402144 x 736 x 13902450 x 1200 x 2455Gross weight(KG)5507502300

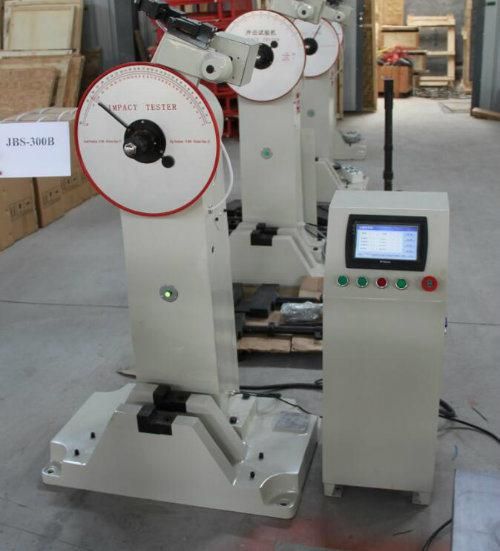

Batch production of the impact test machine
Semi Automatic Charpy Impact Test Instrument (JB-300B)

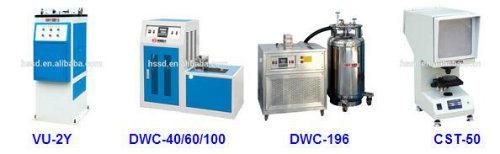

Other models of impact test machine for your choice:
Semi Automatic Charpy Impact Test Instrument (JB-300B)
Standard exporting plywood case with free fumigation:
Semi Automatic Charpy Impact Test Instrument (JB-300B)
Impact test machine with CE and ISO approval
Semi Automatic Charpy Impact Test Instrument (JB-300B)
Company information:
Semi Automatic Charpy Impact Test Instrument (JB-300B)
