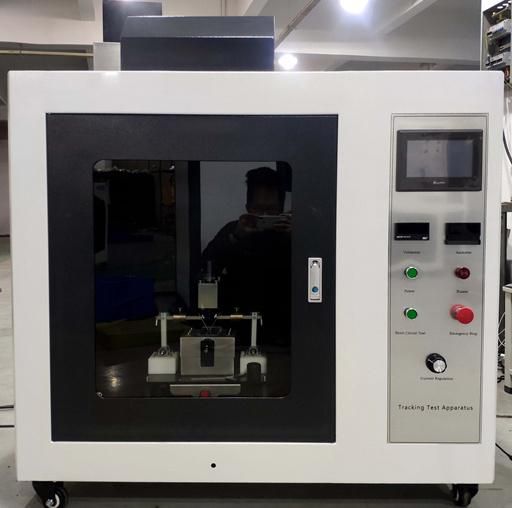

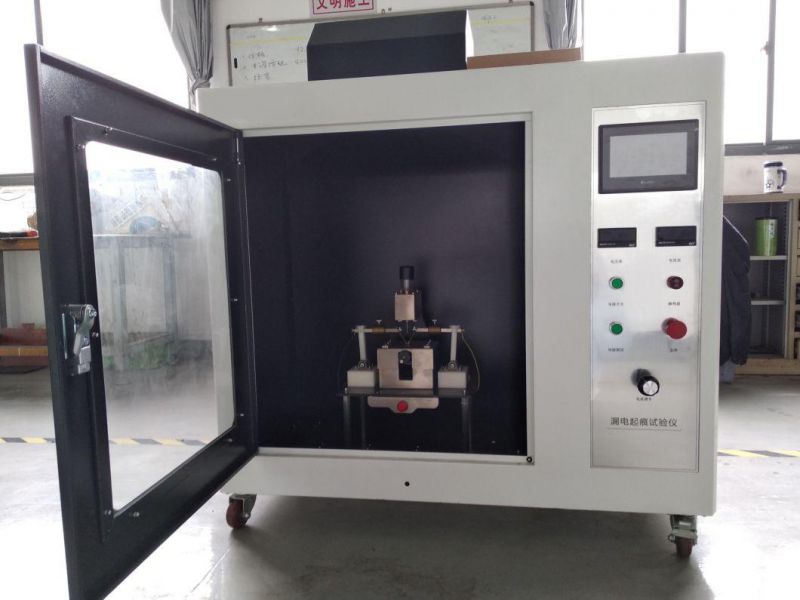

IEC 60112 Comparative Tracking Index Test Apparatus
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Item Name：IEC 60112 Tracking Index Tester
- Application：Flammability Analyzer for Plastics
- Reference Standard：IEC60112, GB , T4207, GB4706.1
- Electrode Material：Electrode Tip - Platinum Metal (Platinum)
- Electrode Pressure：1.0 ± 0.05n
- Dropping Height：for 30 ~ 40mm Adjustable
Base Info
- Model NO.：GD-IEC60112
- Dropping Size：44 ~ 55 Drops , 1cm3 Adjustable
- Dropping Time：30s ± 5s
- Dropping Times：0 ~ 9999 Times Available
- Testing Process：Automatic Control, Independent Ventilation
- Inside Volume：0.1 M&Sup3
- Outside Dimensions：630mm Width X390mm Depth X750mm Height
- Warranty：12 Months
- Transport Package：Plywood Case
- Trademark：GOLD
- Origin：Chongqing China(Mainland)
- HS Code：9031809090
- Production Capacity：500 Sets, Year
Description
Specification:
The electrode material | electrode tip - platinum metal (platinum) |
The electrode pressure | 1.0 ± 0.05N |
Electrode distance | 4.0mm ± 0.01mm, the angle 60 ° ± 5 |
Electrode voltage | 100 ~ 600V (48 ~ 60HZ) adjustable, short-circuit current 1.0 ± 0.1A of less than 10% |
Dropping height | For 30 ~ 40mm adjustable |
Dropping size | 44 ~ 55 drops / 1cm3 adjustable |
Dropping time | 30s ± 5s, |
Dropping times | 0 ~ 9999 times available |
The leakage judgment | when loop current is greater than 0.5A and maintaining for 2 seconds, the relay cut off the current and result indicates sample failed |
The testing process | automatic control, independent ventilation |
The reference standard | IEC60112, GB / T4207, GB4706.1 |
The inside Volume | 0.1 m³ (Can be customized 0.5 m³ or 0.75 m³) |
The outside dimensions | 630mm width x390mm depth x750mm height |
Our Company:

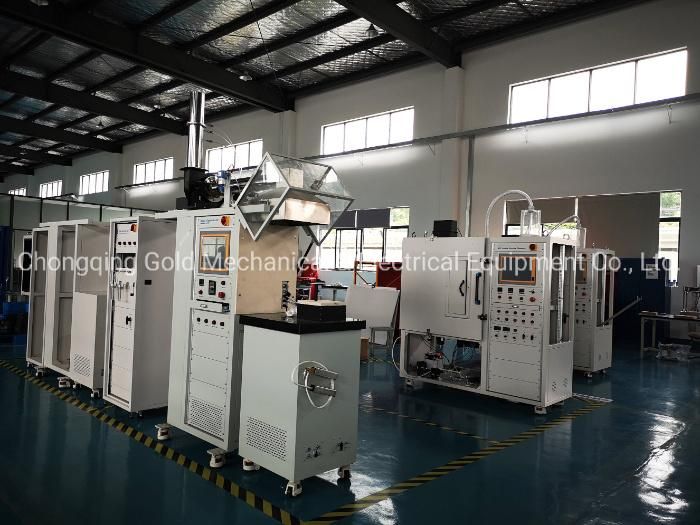

Since 2008, Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd. has developed 70 kinds of fire testing instruments and served for many industries such as building materials, aviation, rails, IMO, wire & cable, safety protection and so on.
Our mission is to provide reliable products to our customers to meet their requirements of testing, R&D and quality control. In addition, Gold insists for high-quality standard in niche markets and targets to minimize the gap between Chinese local products and imported products.
We work with trust, honesty and a sense of responsibility, so the quality and service are always our advantages among all competitors.
