• Model NO.：ZJ-1Q
• Loading Method：No
• Display：Digital
• Control：No
• Weight：40
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Light Duty Shear Testing Apparatus
• Testing Area：30cm2X 2cm(H)
• Max. Vertical & Horizontal Loading：1.2kn
• Lever Ratio：1: 12
• Rotate The Hand Wheel to Push The Axial：0.2mm as Per Circle
• Maximum Vertical Load (Kpa)：400
• Pressure Level (Kpa) ：50, 100, 200, 300, 400
• The Vertical Deformation ：Dial Gauge  0-10mm Precision 0.01mm
• Power Type：Manual
• Dimension：850 X 550 X 1100mm
• Transport Package：Wooden Case
• Specification：0.52CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. ZJ-1Q Loading Method No Display Digital Control No Weight 40 Power Source No Oil Cylinder Position No Product Name Light Duty Shear Testing Apparatus Testing Area 30cm2X 2cm(H) Max. Vertical & Horizontal Loading 1.2kn Lever Ratio 1: 12 Rotate The Hand Wheel to Push The Axial 0.2mm as Per Circle Maximum Vertical Load (Kpa) 400 Pressure Level (Kpa)  50, 100, 200, 300, 400 The Vertical Deformation  Dial Gauge  0-10mm Precision 0.01mm Power Type Manual Dimension 850 X 550 X 1100mm Transport Package Wooden Case Specification 0.52CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

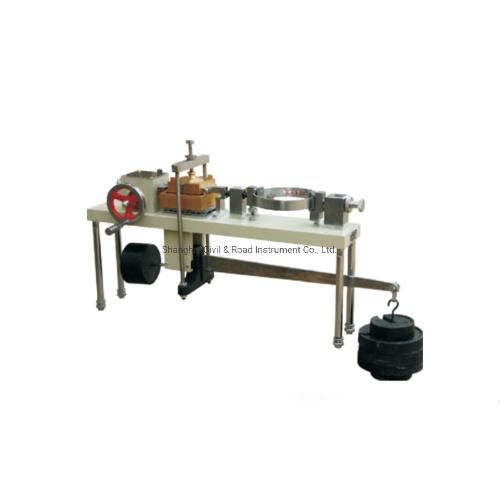

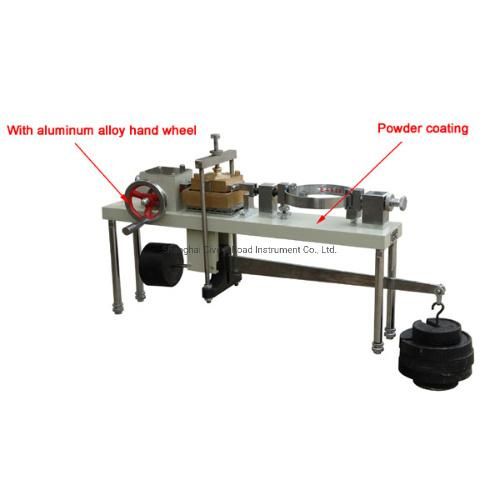

ZJ-1Q Light-duty Shear Testing Apparatus

Application:

ZJ-1Q Light-duty Strain Controlled Direct Shear Apparatus is a kind of strain controlled direct shear apparatus used to test resisting shear strength of soil specimen, it usually adopts four specimens under the different vertical pressure (400kPa, 300kPa, 200kPa, 100kPa, 50kPa selectable), to exert horizontal force to the specimens so as to obtain shearing stress while the specimen is destroyed. According to Coulomb's law to confirm the resisting shear strength coefficient, angle of internal friction and coagulable force of the soil.

Direct shear apparatus used to measure the shear strength of soil, usually takes four sample, respectively under different vertical pressure, the applied stress to shear, the destruction of shearing stress is obtained, then according to the coulombs law of strength parameters, Angle of internal friction and cohesion.


Testing area	30cm2x 2cm(H)
Max. Vertical & horizontal loading	1.2kN
Lever ratio	1: 12
Rotate the hand wheel to push the axial displacement	0.2mm as per circle
Maximum vertical load (KPa)	400
Pressure level (KPa)	50,100,200,300,400
Corresponding weight weight (KPa)	1.275,2.55,5.1,7.65,10.2
The vertical deformation	Dial gauge  0-10mm precision 0.01mm
Power type	manual
Dimension	850 x 550 x 1100mm
Weight	40Kg
