Test Instrument

Home > Product > Test Machine

Circuit Board Control Packaging Zero Drop Impact Resistance Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Drop Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-A520-3
  • Display：Digital
  • Control：Circuit Board Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Maximum Sample Size：1200*1200*1200mm(L*W*H)
  • Machine Size：2300*1500*1950mm(L*W*H)
  • Power Supply：AC380V,50Hz
  • Drive Way：Oil Cylinder, Cylinder Drive
  • Transport Package：Strong Wooden Case
  • Trademark：HAIDA
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：1000sets,Year

Description

Basic Info.

Model NO. HD-A520-3 Display Digital Control Circuit Board Control Weight 500-1000Kg Power Source AC220V Maximum Sample Size 1200*1200*1200mm(L*W*H) Machine Size 2300*1500*1950mm(L*W*H) Power Supply AC380V/50Hz Drive Way Oil Cylinder, Cylinder Drive Transport Package Strong Wooden Case Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 1000sets/Year

Product Description

Circuit board control Packaging Zero Drop Impact Resistance Test Machine


Product Introduction:
The zero drop tester is mainly used to assess the impact of drop impact on the packaging in the actual transportation and loading and unloading process, and to assess the impact resistance of the packaging in the process of handling and the rationality of the packaging design.

Product features:

  1. It is mainly used for drop test of larger packages.
  2. Data precision is strong, using wan ling hydraulic cylinder and shen chi cylinder, high efficiency;
  3. Easy to operate, the use of minot weavis sensor, high precision;
  4. Intelligent design such as limit protection, overload protection and automatic return ensures safe operation;
  5. In the process of drop of the released sample, the sample cannot contact any parts of the device to ensure its free fall.
Test standard:
GBT 4857.5-92 package transportation package drop test method

Main technical parameters:
IndicatorsParameter
Maximum specimen weight500KG
Drive wayOil cylinder, cylinder drive
Display modeTouch screen display
Control modeCircuit board control
Test height0-1000mm
 Test speed4m/min
Test waySurface drop, edge drop, Angle drop
Maximum sample size1200*1200*1200mm(L*W*H)
Machine size2300*1500*1950mm(L*W*H)
Power supplyAC380V/50HZ

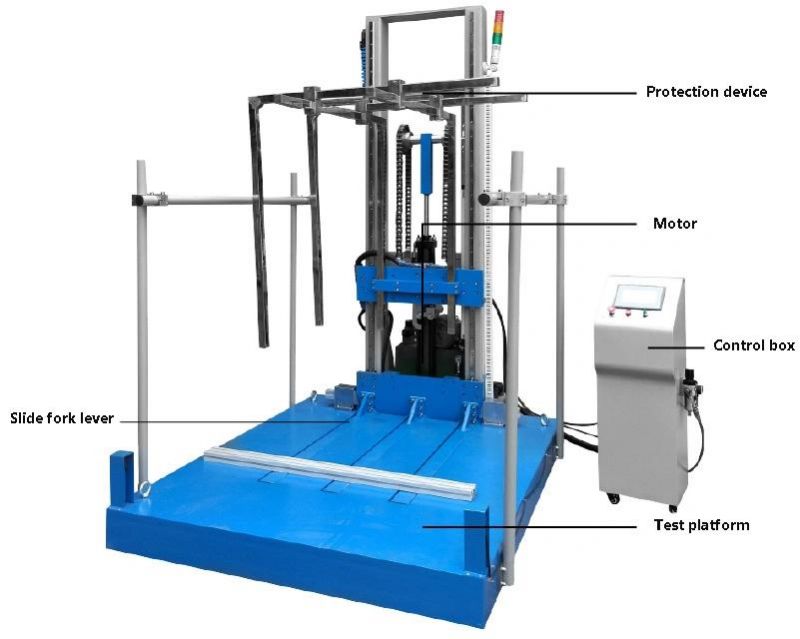

Equipment details
Circuit Board Control Packaging Zero Drop Impact Resistance Test Machine
