500kg Capacity Packaging Zero Drop Impact Resistance Testing Machine
Dongguan Haida Equipment Co., Ltd.- Type:Drop Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:HD-A520-3
- Control:Circuit Board Control
- Weight:500-1000Kg
- Power Source:AC220V
- Maximum Sample Size:1200*1200*1200mm(L*W*H)
- Power Supply:AC380V,50Hz
- Drive Way:Oil Cylinder, Cylinder Drive
- Test Standard:Gbt 4857.5-92 Package Transportation Package Drop
- Application:Drop Test of Larger Packages
- Transport Package:Strong Wooden Case
- Specification:2300*1500*1950mm(L*W*H)
- Trademark:HAIDA
- Origin:China
- Production Capacity:70 Sets,Month
Description
Basic Info.
Model NO. HD-A520-3 Control Circuit Board Control Weight 500-1000Kg Power Source AC220V Maximum Sample Size 1200*1200*1200mm(L*W*H) Power Supply AC380V/50Hz Drive Way Oil Cylinder, Cylinder Drive Test Standard Gbt 4857.5-92 Package Transportation Package Drop Application Drop Test of Larger Packages Transport Package Strong Wooden Case Specification 2300*1500*1950mm(L*W*H) Trademark HAIDA Origin China Production Capacity 70 Sets/MonthProduct Description
High Precise Single Arm Package Zero Drop Tester (HD-A520-3)
Product Introduction:
The zero drop tester is mainly used to assess the impact of drop impact on the packaging in the actual transportation and loading and unloading process, and to assess the impact resistance of the packaging in the process of handling and the rationality of the packaging design.
Product features:
- It is mainly used for drop test of larger packages.
- Data precision is strong, using wan ling hydraulic cylinder and shen chi cylinder, high efficiency;
- Easy to operate, the use of minot weavis sensor, high precision;
- Intelligent design such as limit protection, overload protection and automatic return ensures safe operation;
- In the process of drop of the released sample, the sample cannot contact any parts of the device to ensure its free fall.
GBT 4857.5-92 package transportation package drop test method
Main technical parameters:
Indicators | Parameter |
Maximum specimen weight | 500KG |
Drive way | Oil cylinder, cylinder drive |
Display mode | Touch screen display |
Control mode | Circuit board control |
Test height | 0-1000mm |
Test speed | 4m/min |
Test way | Surface drop, edge drop, Angle drop |
Maximum sample size | 1200*1200*1200mm(L*W*H) |
Machine size | 2300*1500*1950mm(L*W*H) |
Power supply | AC380V/50HZ |

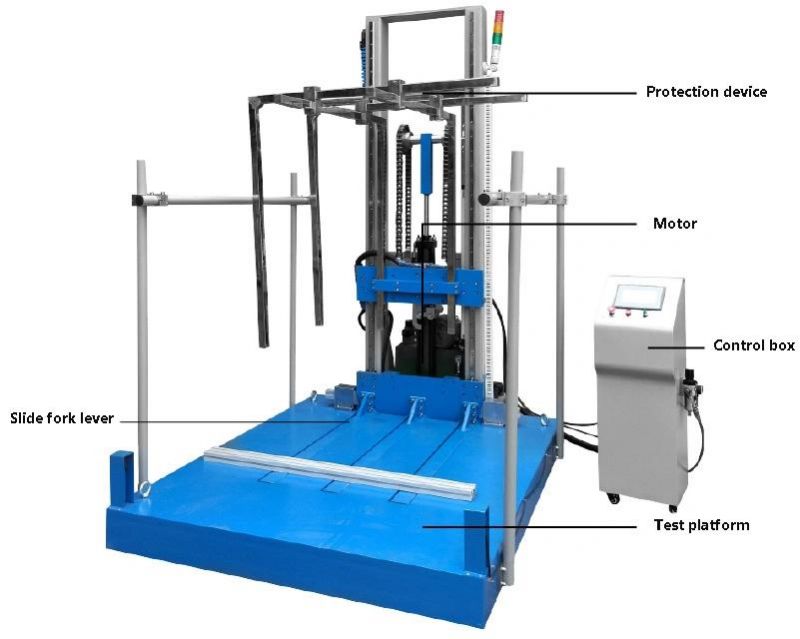

Equipment details

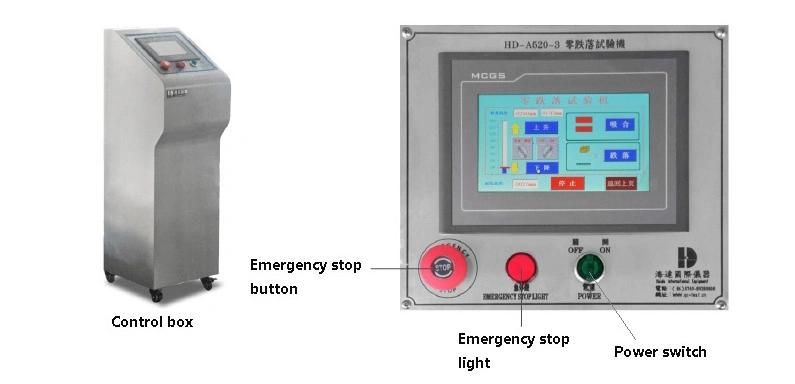

Control panel analysis:
1. Emergency stop button: in case of any abnormality, press the emergency stop button and the instrument will stop running immediately.
2. Emergency stop light: press the emergency stop button, the emergency stop indicator light is on, otherwise it is not on.
3. Power switch: control the total power of the whole instrument.
