• Model NO.：STJM-3
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：259kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Accelerated Polishing Machine (Psv)
• Working Voltage：AC 380V AC 220V
• Roadway Wheel Rotates Speed：320r,Min
• Rubber Wheel Is Facing Static Pressure：400n
• Rubber Wheel：200 *44mm
• Power of Motor：550W
• Transport Package：Wooden Case
• Specification：0.76
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STJM-3 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 259kg Power Source No Oil Cylinder Position No Product Name Accelerated Polishing Machine (Psv) Working Voltage AC 380V AC 220V Roadway Wheel Rotates Speed 320r/Min Rubber Wheel Is Facing Static Pressure 400n Rubber Wheel 200 *44mm Power of Motor 550W Transport Package Wooden Case Specification 0.76 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

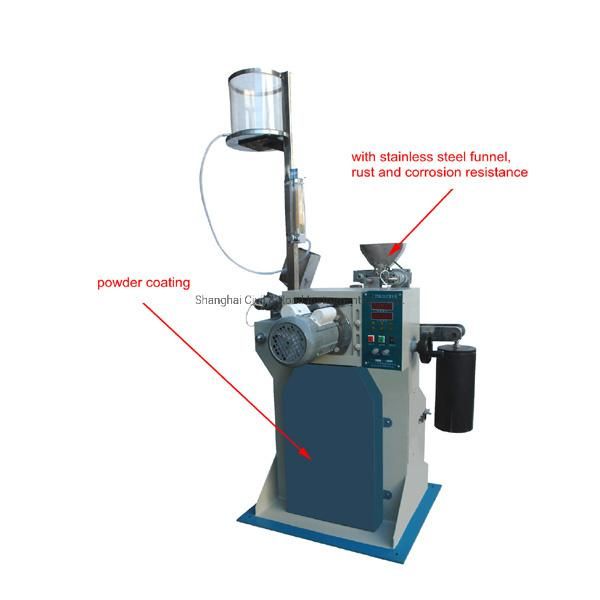

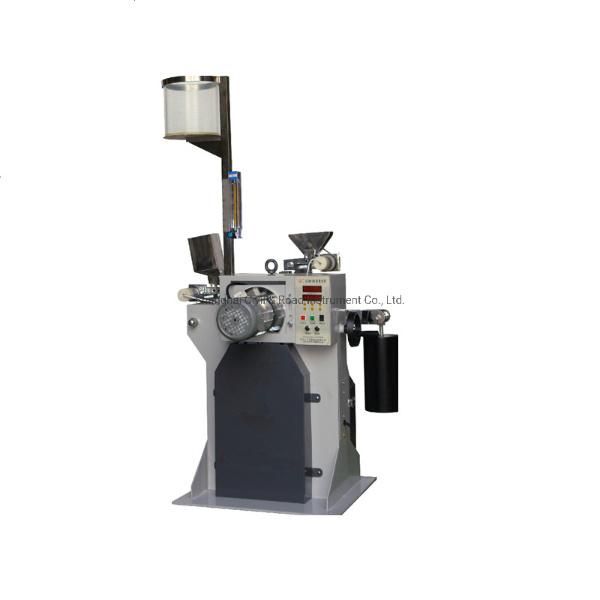

STJM-3 Accelerated Polishing Machine (PSV)
Aggregate Accelerated Rock Polishing Machine

Application: The grinder is used to polish stone materials, evaluates their resistance to polish,  and provides friction coefficient information in road pavement. This instrument is suitable for indoor simulation of the polishing effect of automobile tyres on highway pavement. By accelerating the polishing of aggregates used in pavement, the polishing value of aggregates can be measured to evaluate the anti-polishing performance of aggregates, so as to provide scientific basis for selecting suitable aggregates for paving sections with different frictional coefficients and for rational development and utilization of stone resources, so as to shorten the anti-skid pavement. The research period creates conditions for the development of artificial aggregate.

Technical parameters



Working voltage	AC 380V±10%,AC 220V±10%
Roadway wheel rotates speed	320r/min
Rubber wheel is facing static pressure	400N
Rubber Wheel	200 *44mm Hardness 69IRHD+3IRHD
Power of motor	550W
