• Model NO.：STLLN-2
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stlln-2 Emulsified Asphalt Wheel Roller Compacting
• Application：It Is Suitable to Test If There Is Excess Asphalt
• Voltage：380V 220V
• Hardness of Rubber Loading Wheel：60-70
• Roller Compacting Counter：Digital Display and Adjustable
• Rolling Frequency：44 Times,Min.
• Specimen Specific：3, 5, 6, 8, 10mm
• Radius of Crank：15cm (Inner Size 50*380mm)
• Transport Package：Wooden Case
• Specification：1CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLLN-2 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Product Name Stlln-2 Emulsified Asphalt Wheel Roller Compacting Application It Is Suitable to Test If There Is Excess Asphalt Voltage 380V 220V Hardness of Rubber Loading Wheel 60-70 Roller Compacting Counter Digital Display and Adjustable Rolling Frequency 44 Times/Min. Specimen Specific 3, 5, 6, 8, 10mm Radius of Crank 15cm (Inner Size 50*380mm) Transport Package Wooden Case Specification 1CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

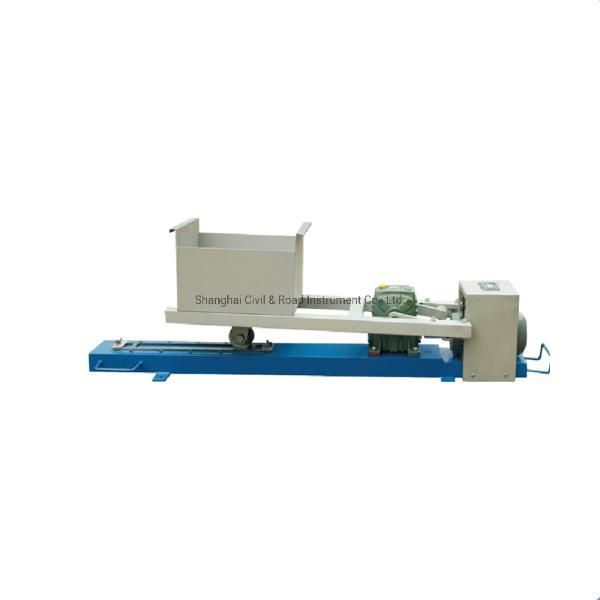

STLLN-2 Emulsified Asphalt Wheel Roller Compacting Testing Machine


Application: It is suitable to test if there is excess asphalt in slurry seal mixture of emulsified asphalt.

Laboratory Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is designed and made as per T 0755-2011 "Load Wheel Burnt-on Sand Test for Slurry Mixtures" in the Traffic Standard of the People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .

Laboratory Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is suitable to control the upper limit of asphalt used in the slurry mixtures .It can confirm the best asphalt content of slurry mixtures together with wet wheel abrasion test .
Features:
1.The Emulsified Asphalt Slurry Seal Load Wheel Rolling Tester is a floor structure, the structure design of the instrument, and test apparatus of the specifications of the size are accord with the requirement of T0755 standard. The design is novel, the structure is stable, and the use is convenient.
2.Mechanical transmission part design with safety protection device to prevent misidentification of the operator, safe and reliable.
3.Rolling frequency set by the operator in advance, when testing instrument automatic counting at work, until the count value is equal to the set point count stop, the instrument stop working.


Technical Parameters:

Hardness of rubber loading wheel	60-70
Roller compacting counter	digital display and adjustable
Rolling frequency	44 times/min
Specimen specific	3, 5, 6, 8, 10mm
Radius of crank	15cm (inner size 50X380mm)
Voltage	AC380V±10%,AC220V±10%
