• Model NO.：STPZL-1
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：No
• Control：No
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Name：Stpzl-1 Free Swelling Rate Meter
• Soil Measuring Cup：10ml, Inner Diameter: 20mm
• Stemless Funnel Top Diameter：50-60mm
• Stemless Funnel Bottom Diameter：4-5mm
• Consist of：The Mixer Includes a Straight Bar and a Disc with
• Transport Package：Wooden Case
• Specification：50x50x15cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STPZL-1 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display No Control No Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Name Stpzl-1 Free Swelling Rate Meter Soil Measuring Cup 10ml, Inner Diameter: 20mm Stemless Funnel Top Diameter 50-60mm Stemless Funnel Bottom Diameter 4-5mm Consist of The Mixer Includes a Straight Bar and a Disc with Transport Package Wooden Case Specification 50x50x15cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

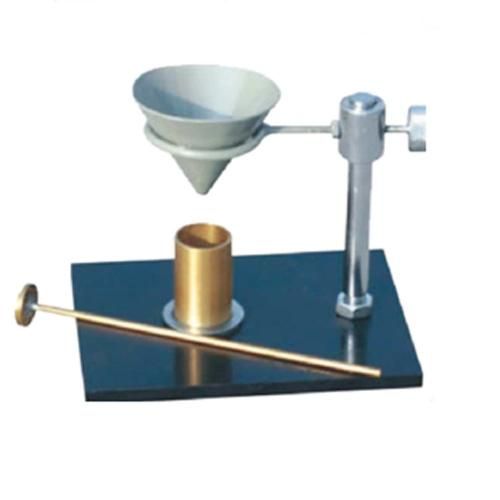

STPZL-1 Free Swelling Rate Meter/Soil Swell Test Apparatus

free swell ratio is the ratio of the volume between volume difference of The drying of loose soil grains which accumulate Freely separately in water and air and the volume in the air, expressed by percentage.
It is used to Expansive properties of No structure force loose soil grain in water. The instrument conforms to the ministry of communications JTJG E40 2007 standard requirement. It is widely used in scientific research units, schools, mines, metallurgy, railway, transportation etc


Parameters	Details
stemless funnel	Top diameter 50~60mm bottom diameter 4~5mm
Soil measuring cup	volume 10mL inner diameter 20mm height 32.8mm
Stirrer	Made up of rods and perforated disk
Sample specification	cylinder Φ50~60mm   Height is approximately equal to the diameter Cube side length 50~60mm Two end should be parallel and smooth
Feature	The mixer includes a straight bar and a disc with an aperture
Dimension	500×500×150mm
