• Model NO.：STCBR-1
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Digital Display
• Weight：120kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stcbr-1 California Bearing Ratio Cbr Tester
• Max. Load Capacity：30kn, 50kn
• Test Speed：1 mm,Min (BS Standard ) or 1.27 mm,Min (
• Size of The Penetration Rod：Dia. 50×100mm
• Transport Package：Wooden Case
• Specification：70x59x102cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STCBR-1 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Digital Display Weight 120kg Power Source AC220V Oil Cylinder Position No Product Name Stcbr-1 California Bearing Ratio Cbr Tester Max. Load Capacity 30kn, 50kn Test Speed 1 mm/Min (BS Standard ) or 1.27 mm/Min ( Size of The Penetration Rod Dia. 50×100mm Transport Package Wooden Case Specification 70x59x102cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

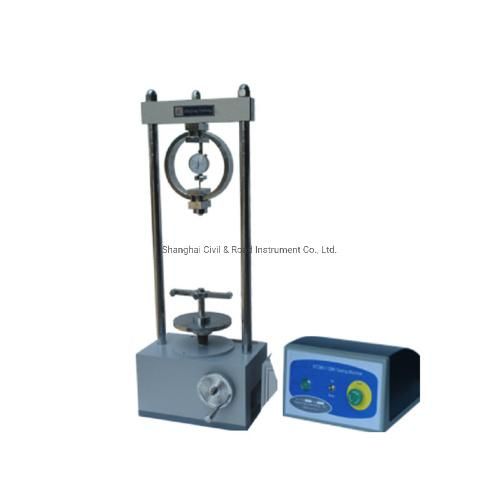

STCBR-1 California Bearing Ratio CBR Tester

STANDARD: BS 1377, 1924; EN 13286-47;ASTM D1883; AASHTO T193

General description:

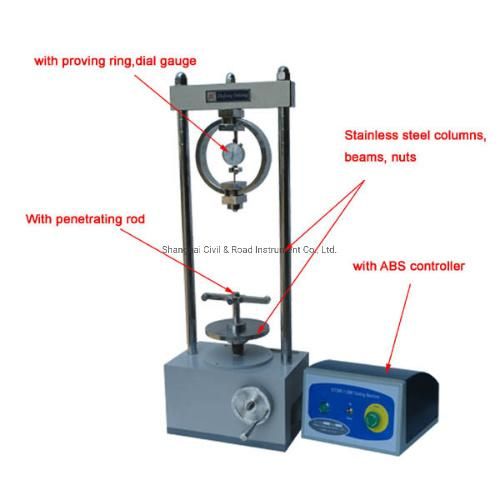

The machine features a rigid two-column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can operated both by motor and manual handle.

Accessories:
Guide bracket and ball seating, adapter to fit pressure transducer, pressure transducer 50KN cap., connector pressure transducer/accessory, adjustable CBR penetration piston, adjustable transducer holder, displacement transducer, digital controller plus data acquisition and processing system and so on.

Specification

Max. Load capacity	30kN,50kN
Test speed	1 mm/min (BS standard )          or 1.27 mm/min  (ASTM/EN standard)
Size of the penetration rod	Dia. 50×100mm
