• Model NO.：STQZJ-2
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Digital
• Control：No
• Weight：50kg
• Power Source：No
• Oil Cylinder Position：No
• Product Name：Standard Portable Light and Heavy-Duty Compactor
• Hammer Weight：4.5kg
• Diameter of The Hammer：50mm
• Drop：450mm
• Dimension of The Compaction Mould：Dia152X170mm
• Finish：Corrowion Resistant
• Transport Package：Wooden Case
• Specification：72x30x29cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STQZJ-2 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 50kg Power Source No Oil Cylinder Position No Product Name Standard Portable Light and Heavy-Duty Compactor Hammer Weight 4.5kg Diameter of The Hammer 50mm Drop 450mm Dimension of The Compaction Mould Dia152X170mm Finish Corrowion Resistant Transport Package Wooden Case Specification 72x30x29cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

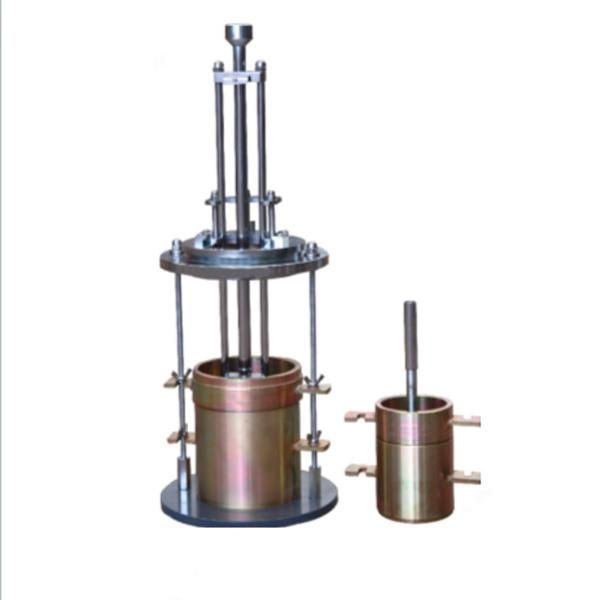

STQZJ-2 Standard Portable Light and Heavy duty Compactor

Standard :BS 1337:2, NF P94-052-1

Moulds and hammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Hammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.


Product name	Heavy Duty Portable Compactor
Weight of the hammer(hammer weight)	4.5kg
Diameter of the hammer	50mm
Drop	450mm
Dimension of the compaction mould	Φ152×170mm
Finish	corrowion resistant
