• Model NO.：XH3F Series
• Test Mode：Saved Test
• Usage：Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
• Test Region：Forming Cable
• Cable Type：Shielded
• Power：Electricity
• Certification：CE
• Customized：Customized
• Color：Orange
• Transport Package：Wooden Box with Foam Inside
• Specification：350mm*280mm*170mm
• Trademark：XZH TEST
• Origin：China Xi′ an
• HS Code：8543201000
• Production Capacity：100 Pieces ,Year
• Package size per unit product：45.00cm * 36.00cm * 20.00cm
• Gross weight per unit product：100.000kg

Basic Info.

Model NO. XH3F Series Test Mode Saved Test Usage Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester Test Region Forming Cable Cable Type Shielded Power Electricity Certification CE Customized Customized Color Orange Transport Package Wooden Box with Foam Inside Specification 350mm*280mm*170mm Trademark XZH TEST Origin China Xi′ an HS Code 8543201000 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 45.00cm * 36.00cm * 20.00cm Gross weight per unit product 100.000kg

Product Description

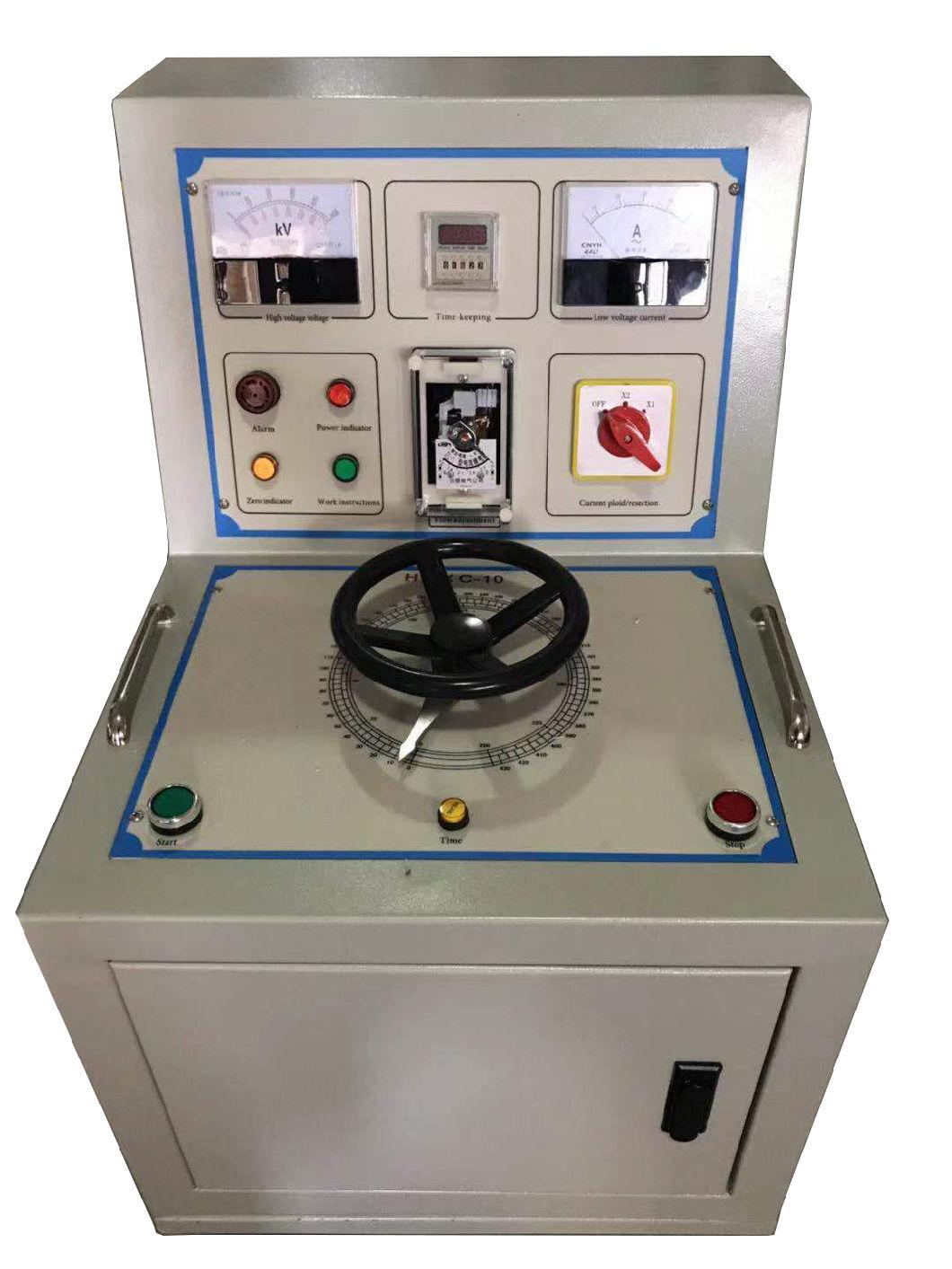

XH3F Series frequency stabilization tripler hipot Tester



Product introduction:

The XH3F series triple frequency test transformer device is based on the power industry standard DL/T848.4 standard and DL/T596 "Electrical Equipment Preventive Test Procedure", in order to meet the requirements of the power system, XH3F is designed for the requirements of high voltage transformer multiplier induction withstand voltage test equipment.



Main Features:

According to the difference in volume and weight, the split/integral structure is adopted;

The output current is steplessly adjusted, the current rises smoothly, the load varies widely, and the operation is simple.

Main Specifications:

Input voltage: 380V/50Hz sine wave

Output voltage: 300V/150Hz waveform distortion ≤ 5%

Output capacity: 3kVA, 5 kVA, 10 kVA, 20 kVA, 50 kVA

No-load operation: ≤5 minutes
