Dali New Designed Best-Sellng Uncooled Durable Thermal Camera Sensor
ZHEJIANG DALI TECHNOLOGY CO., LTD.- Detector Material：a-Si
- Resolution：640X480
- Netd(F/1,300K,50Hz)：60mk
- Pixel Pitch：17μmx17μm
- Output：Analog Sensor
- Responsivity：≥10mv,K
Base Info
- Model NO.：640*480,17um
- Product Name：Uncooled Microbolometer
- Spectral Range：8-14μm
- Frame Rate：≤60Hz
- Usage：Temperature Sensor
- Theory：Optical Sensor
- Transport Package：Uncooled Microbolometer Dali Packing
- Trademark：DALI
- Origin：Zhejiang, China
- Production Capacity：800 Set,Sets Per Week
Description
Detector Type
a-Si
Array size
640×480
Pixel pitch
17μm×17μm
Spectral response
8μm~14μm
Temperature control
/
Frame rate
≤60Hz
NETD(f/1,300K,50Hz)
60mK
Responsivity
≥10mV/K
Operability
≥99.5%
Consumption(Typ)(without TEC)
220mW
Dimension(mm)(pins excluded)
25.4×25.4×4.1
Weight
≤7g
Operating temperature
-40~+60
Storage temperature
-40~+85

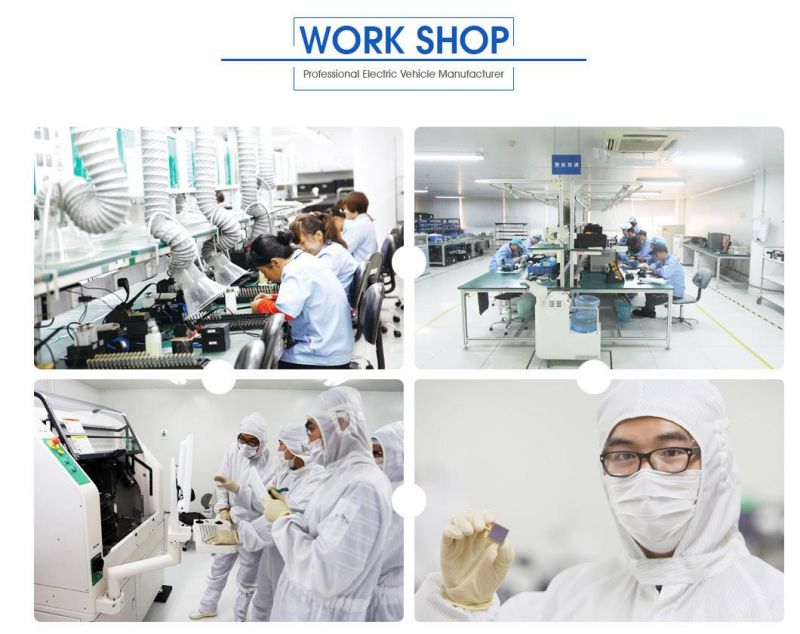

Production field
