• Model NO.：BDV
• Trademark：ZhongNeng
• Origin：China
• HS Code：8421299090
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. BDV Trademark ZhongNeng Origin China HS Code 8421299090 Production Capacity 3000PCS/Year

Product Description

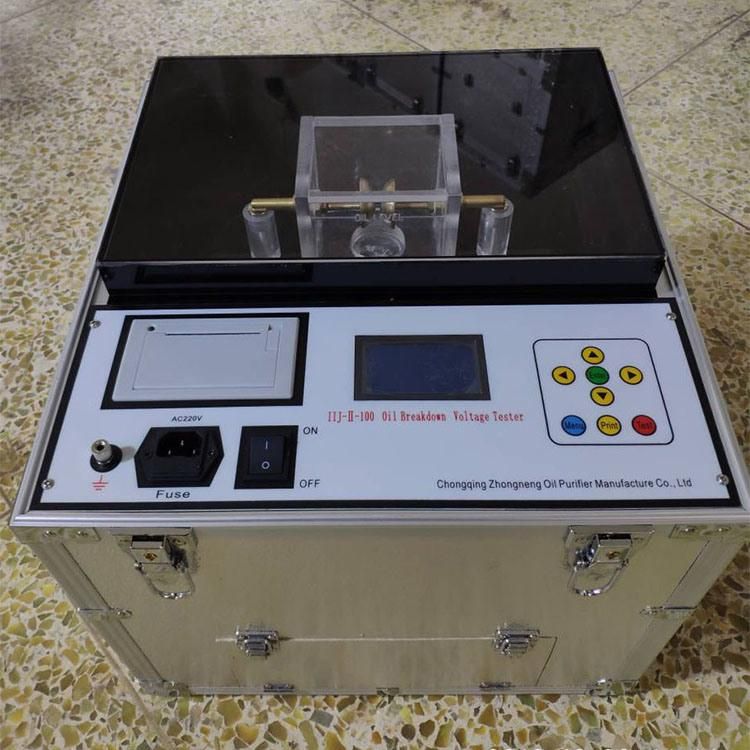

Breakdown voltage tester transformer oil dielectric tester transformer oil test equipment

Introduction:
 IIJ-II Oil Breakdown Voltage Tester is produced by our company, which adopts industrial single plate integrated circuit, new-style I/O jack, with unique inspection and anti-jamming technology to greatly improve its reliability and functionality.

Main features:

1. Easy operation, high autoimmunization (only press button once and all work done automatically)
2. Menu management, data input simple and convenient

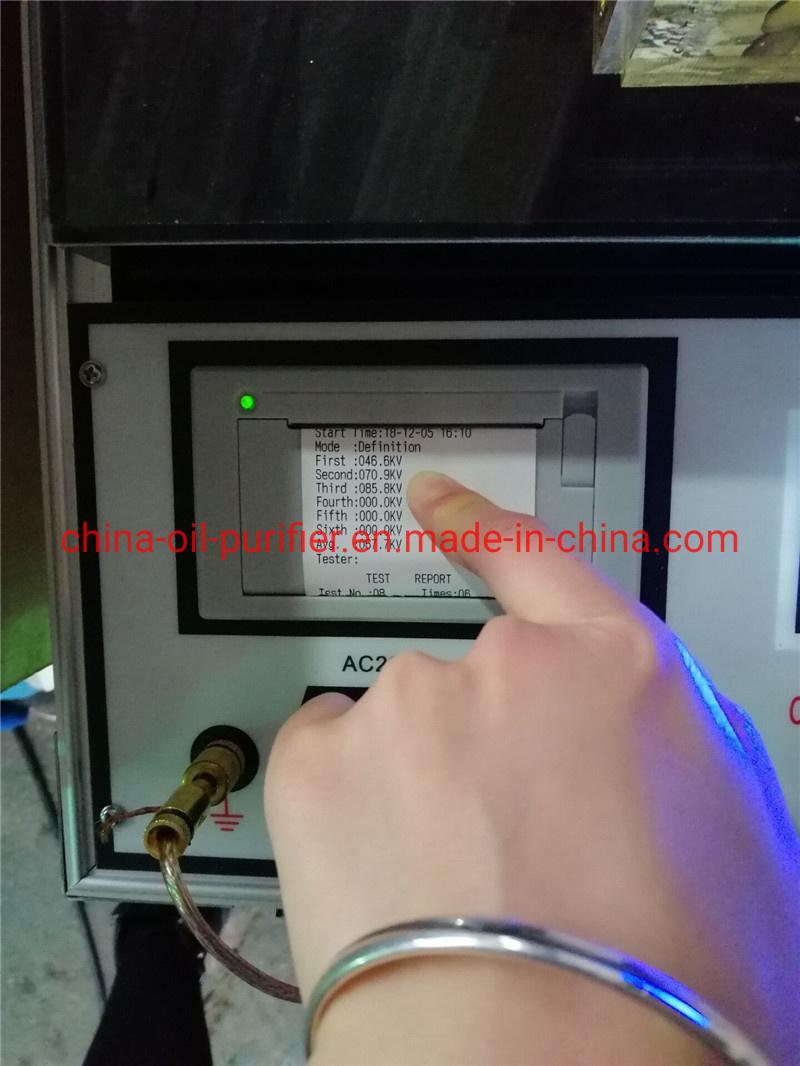

3. It can store 99 data of oil sampling tests, the test data can be reviewed and printed in 100 years even after power is off.
4. The clock in going on after power off.

(The internal time of the system just for test reference, not for standard time)

1. The software can be upgrade through RS232 terminal.
2. Strong anti-jamming, high precision testing.
3. Small measurement, light weight, and convenient for outdoor operation.

Technical parameter

1. Power supply: AC220V ±10%, 50Hz
2. Output voltage: 60KV,80kV, 100kV (60KV, 100kV can be manufactured to order in advance)
3. Capacity: 1.6kVA, 2.0kVA
4. Speed of voltage increase: about 2kV/S
5. Voltage inspection accuracy: 3%
6. Breakdown sensitivity: <2kV
7. Waveform distortion: ≤3%
8. Breakdown response time: ≤10ms
9. Working environment: temperature: 0°C~40°C, humidity: max relative humidity 85%
10. Storage environment: temperature: -20°C ~ 60°C, humidity: max relative humidity 75%
11. Work height: <1500m (if over 1500m, it can be customized)

 Pre-sale Service

According to customer's demands, we recommend the most suitable machine with high cost effective.

Free on-site installation, debugging and technical training (offered by strictly trained technology application engineers)

Offer OEM service.

After-sale Service

We offer the door-to-door after sales service for installation and debugging.

The warranty period is 24 months from commissioning acceptance date on.

We build instrument service profile for our clients to record the product service and maintenance conditions.

Company Information


1. We are the professional manufacturer and exporter of oil purifier in China
2. We are in this field since 2003
3. We are the 13-year golden supplier on Alibaba
4. We offer our customers professional products at competitive price
5. We offer our customer reliable lifetime after-sales service

Certificates:
Engineers Overseas Aftersale Service are available!!

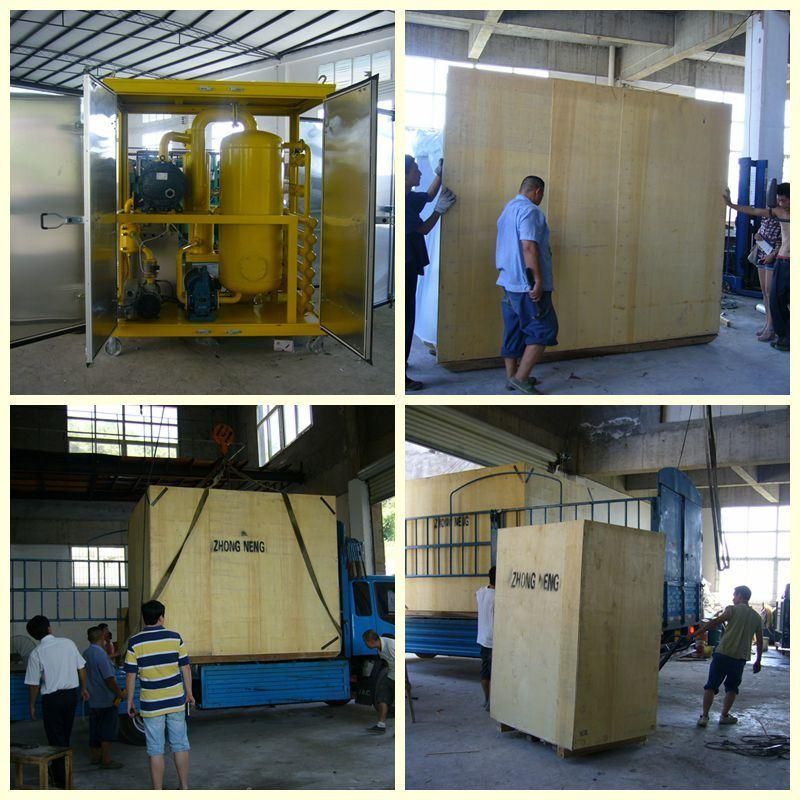

Packing and Delivery

Safe and Timely Transportation

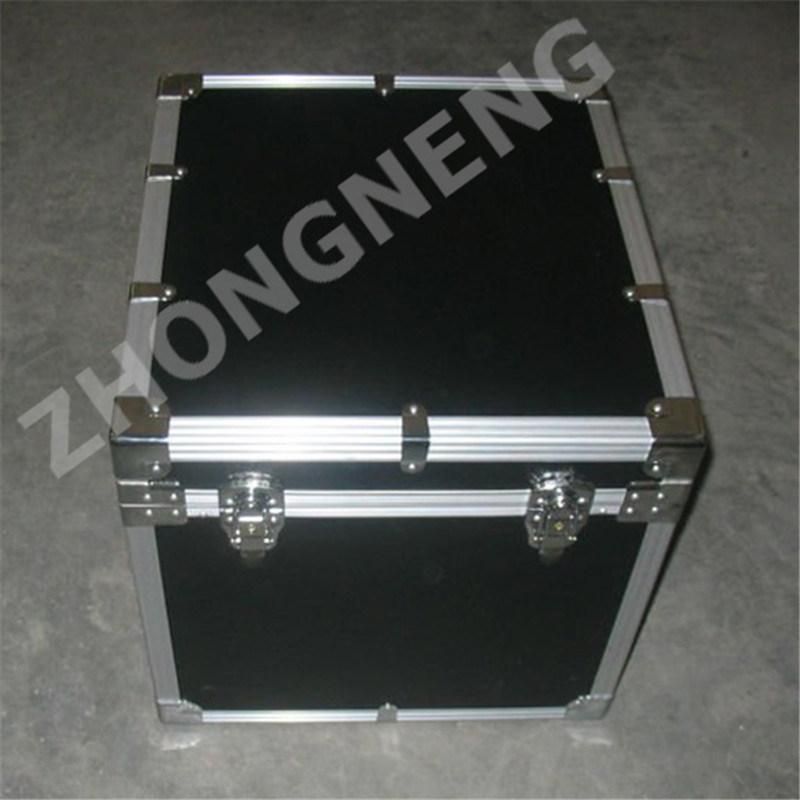

Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.

Carefully check every packing detail before delivery to avoid any troubles during the transportation.

Appointed logistics company could be used according to customers demands.

Do our best to make sure customers can get the goods in time.

Contact Person: Abel Lee
