Test Instrument

Automatic Oxidation Stability Test Apparatus for Gasoline and Aviation Fuels

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type:Universal Testing Machine
  • Weight:0-100Kg
  • Power Source:AC220V
  • Test Method:ASTM D525 Induction Period Method
  • Test Object:Gasoline
  • Structure:Desktop Structure, Integrated Design

Base Info

  • Model NO.:GD-8018D-1
  • Power Supply:AC(220+,-10%)V, 50Hz
  • Total Power Consumption:No More Than 1400W
  • Oxygen Bomb Pressure Transmitter:(0~1600)Kpa
  • Temperature Control Point of Metal Bath:100.0c+,-0.1c
  • Thermometer:Mercury-in Glass Thermometer
  • Net Weight:24.5kg
  • Transport Package:Plywood or Wooden Case
  • Origin:Made in China
  • HS Code:9031809090
  • Production Capacity:200 PCS , Month

Description

Basic Info.

Model NO. GD-8018D-1 Power Supply AC(220+/-10%)V, 50Hz Total Power Consumption No More Than 1400W Oxygen Bomb Pressure Transmitter (0~1600)Kpa Temperature Control Point of Metal Bath 100.0c+/-0.1c Thermometer Mercury-in Glass Thermometer Net Weight 24.5kg Transport Package Plywood or Wooden Case Origin Made in China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

GD-8018D-1 Automatic Oxidation Stability Test Apparatus for Gasoline and Aviation Fuels


Introduction:

The Automatic Oxidation Stability Test Apparatus is designed and made as per national standard of People's Republic of China GB/T8018-87 Gasoline - Determination of oxidation stability - Induction period method. It is suitable to determine the oxidation stability of gasoline.
The
Automatic Oxidation Stability Test Apparatus can also be used to do determination as per ASTM D525 Standard Test Method for Oxidation Stability of Gasoline (Induction Period Method)


Features:

1. Desktop structure,integrated design,the test part and control part united as one,high integration.
2. Adopting built-in industrial personal computer(IPC), automation work mode, metal bath.
3. Draw time pressure curve automatically in the whole process, and judge the turning point of sample oxidation automatically.
4. Double holes design to test two samples at the same time.It's easy to do the parallel test.
5. Perfect heat preservation and insulation system can save energy and avoid the danger of scald to operators.
6. Oxygen bomb location hole design, it's convenient for operator to disassemble the cover of oxygen bomb in holes, and easy to put the oxygen bomb during the test.


Specifications:

1. Power supply: AC(220±10%)V,50Hz;
2. Total power consumption: ≤1400W;
3. Heating power: Less 1000W, the actual heating power is automatically controlled by computer
3. Measuring range of oxygen bomb pressure transmitter:(0~1600)kPa, accuracy:±2‰
4. Temperature control point of metal bath: 100.0ºC±0.1ºC
5. Thermometer: Mercury-in glass thermometer, can correct coefficient as need.
6. Suitable environment:
7. Ambient temperature: 15ºC~35ºC
8. Relative humidity: ≤85%
9. Dimension: 470mm*380mm*320mm (without test barrel);470mm*380mm*600mm(with test barrel)
10. Net weight: 24.5kg.

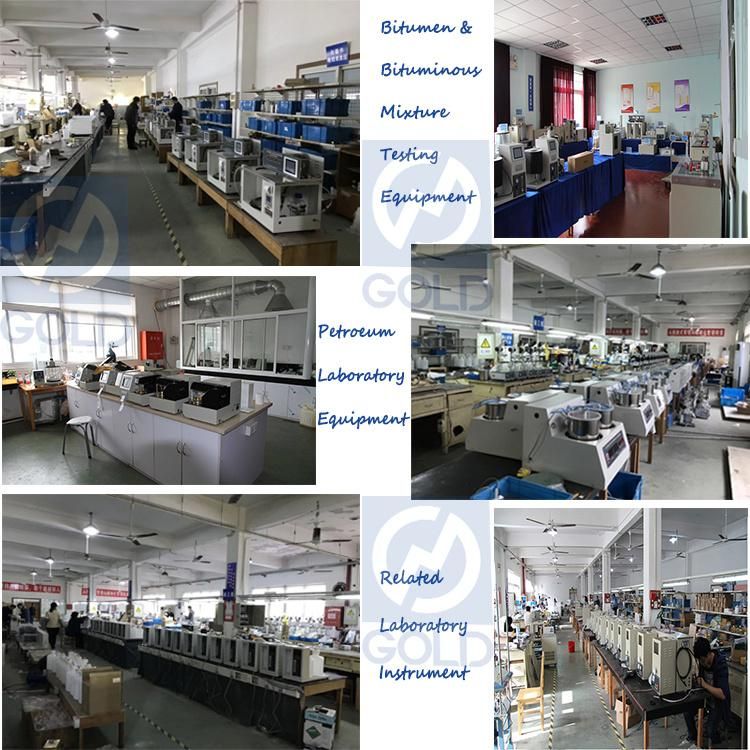

Welcome to visit our laboratory!

Automatic Oxidation Stability Test Apparatus for Gasoline and Aviation Fuels
