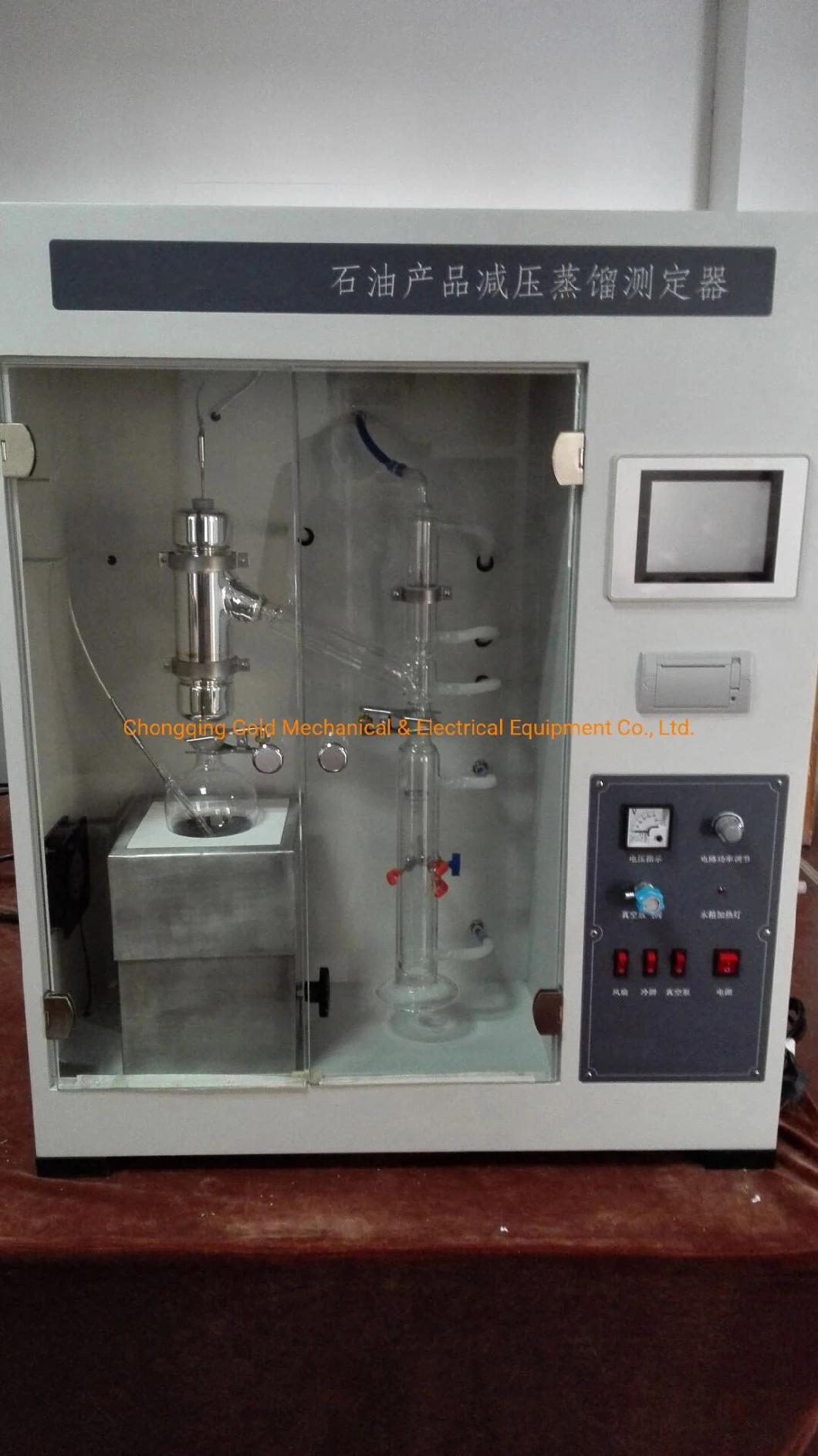

• Model NO.：GD-9168 Vacuum Distillation Equipment
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC220V 50Hz. Power ≤2000W2. Power of heating furnace: (0~1000)W,continuously adjustable3. Receiving cylinder water circulation:

The temperature control point is continuously adjustable.

Ambient to 80ºC±2ºC. Automatic.

4. Cooling mode: Semiconductor5. Setting range of vacuum pressure residue: (1~99)mmHg

6. Measuring range of vacuum pressure residue:



(1.00~150.00) mmHg±0.01mmHg. Automatic pressure maintenance7. Capacity of buffer tank:15L Vacuum Distillation Equipment9. Working environment: Ambient temp.:5~35ºC  RH:< 85%10. Dimension: 880mm×530mm×910mm






I. Main technical features



1. It adopts colored LCD man-machine dialog interface to display the parameters and control keys.

High-precision digital vacuum detecting system. It controls the vacuum pressure automatically and display it in real time.

The vacuum pressure residue is (1.00~150.00)mmHg±0.01mmHg.



2. It adopts advanced semiconductor refrigeration technology.



3. It is equipped with a self-developed high standard atmospheric pressure- reduced pressure automatic conversion software.

The conversion precision is highly improved.



4. A needle printer is equipped. It can print the test result automatically.



5. It equips a double tempered-glass door. The test procedures are clear.



6. Independent heating furnace. The height is adjustable. Forced air cooling. The test efficiency is highly improved.



7. Automatic data saving. It can save 30 groups of test data.
