• Model NO.：GD-2430A
• Power Supply：AC 220V, 50 Hz
• Working Bath：Stainless Steel
• Freezing Point Range：-54c~2c
• Cold Bath Measurement Temperature：-70c~30c
• Temperature Controlling Accuracy：+-0.1c
• Heating Rate：350W
• Refrigerator System：Imported Refrigerator Compressor
• Sample Stirring：Mechanical Stirring Is 60~80r,Min
• Transport Package：Wooden Case
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-2430A Power Supply AC 220V, 50 Hz Working Bath Stainless Steel Freezing Point Range -54c~2c Cold Bath Measurement Temperature -70c~30c Temperature Controlling Accuracy +-0.1c Heating Rate 350W Refrigerator System Imported Refrigerator Compressor Sample Stirring Mechanical Stirring Is 60~80r/Min Transport Package Wooden Case Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

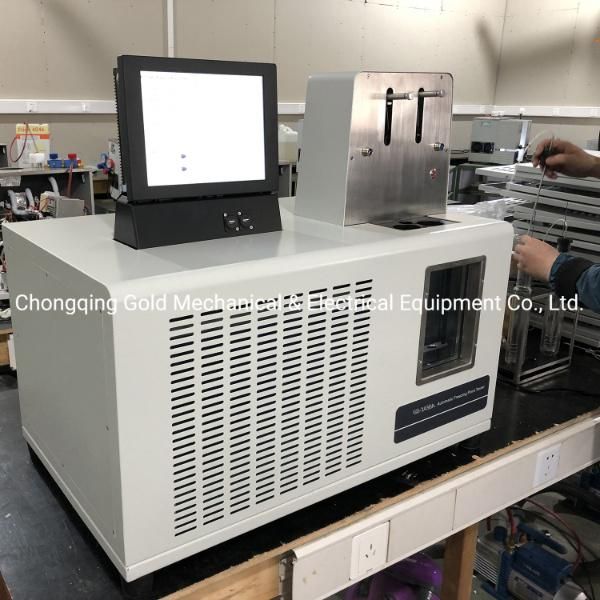

Automatic Freezing Point Apparatus of Aqueous Engine Coolants



Introduction:

The Automatic Freezing Point Apparatus is designed and made as per the Industrial Standard of People's Republic of China GB/T 2430 ,SH/T0090-1991(2000), ASTM D1177,D2386 Standard Test Method for Freezing Point of Engine Coolant.
The Automatic Freezing Point Apparatus can be used to test freezing point of engine coolants and condensation liquids.


Features:

1.The cold bath is made of stainless steel,double glass observing window,with the advanced temperature control technology,the lowest temperature degree is -70ºC,the temperature accuracy is ±0.1ºC,fitting standard GB/T 2430,SH/T 0090 and ASTM D1177,D2386  for the freezing point test requirement.
2.Automatically judge the freezing point temperature.
3.According to the different configuration,it can be used to test the freezing point etc.indexes of jet fuel,engine coolant and its concentrated solution,it's a multipurpose freezing point tester.
4.It's the floor stand structure,the work table-board is made of stainless steel,concise design,nice appearance,convenient usage,fully furnished.
5. The key feature: Unit as one to measure jet fuel freezing point and engine coolant freezing point;automatically stirring sample and judging the freezing point temperature,fast cooling,high precision temperature control,full spraying plastic case,wear well.


Specifications:

1. Power supply: AC 220 V±10%, 50 Hz;
2. Working bath: stainless steel,double vacuum glass observing window.
3. Freezing point range:-54ºC~2ºC.
4. Cold bath measurement temperature: -70ºC~30ºC
5. Temperature controlling accuracy: ±0.1ºC
6. Heating rate: 350W.
7. Refrigerator system:imported refrigerator compressor
8. Sample stirring: mechanical stirring is 60~80r/min,continuously adjustable
9.  Ambient temperature:(15~35)ºC.
10. Relative humidity: ≤85%
11. Maximum power consumption: 2000 W
12. Dimension:770mm×480mm×730mm
