• Model NO.：GD-11132
• Pressure Regulating Range：(0~400)Kpa
• Electric Agitator：Independently Controlled for Each Way
• Ultraviolet Light Source Pipe：1220mm in Length, Wavelength Is 365mm+,-5nm
• Illuminating Lamp：1220mm in Length, Power Is 40W
• Air Supply：Nitrogen Cylinder
• Warranty：1 Year
• Transport Package：Plywood
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-11132 Pressure Regulating Range (0~400)Kpa Electric Agitator Independently Controlled for Each Way Ultraviolet Light Source Pipe 1220mm in Length, Wavelength Is 365mm+/-5nm Illuminating Lamp 1220mm in Length, Power Is 40W Air Supply Nitrogen Cylinder Warranty 1 Year Transport Package Plywood Origin Made in China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

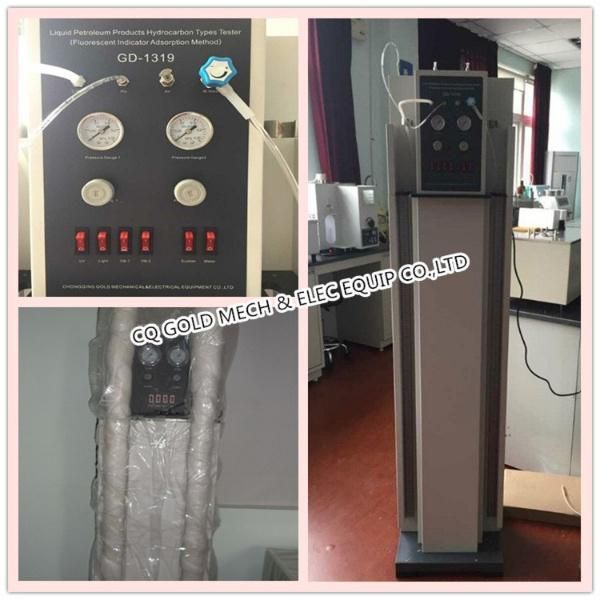

Fluorescent Indicator Adsorption Apparatus by Fluorescent Indicator Adsorption



FIA Apparatus:

The Fluorescent Indicator Adsorption Apparatus is designed and made as per national standard of People's Republic of China GB/T 11132 Standard test method for hydrocarbon types in liquid petroleum products by fluorescent indicator adsorption and ASTM D 1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption.It is suitable to make the main hydrocarbon of liquid petroleum products shown on the silica gel adsorption column with fluorescent indicator.Then calculate it's volume percentage.This will be regarded as the quality measurement index of engine fuel,aviation fuel and other fuel oils.
The instrument is a kind of professional instrument determining percentage of aromatic hydrocarbon,olefin and saturated hydrocarbon in petroleum fraction.


Features:

1. Vertical type and uni-body design. No need to install.
2. This Fluorescent Indicator Adsorption Apparatus is composed of air circuit system, vibration unit, scale indicator, illumination and UV-light detecting component.
3. Two pieces of imported precise glass tube adsorption column.Convenient for operation.
4. Equipped with a adsorption column cleaning unit. Solve the problem for cleaning the adsorption column.


Specifications:

1. Power supply: AC(220±10%)V,50Hz
2. Maximum power consumption: 600W
3. Pressure regulating range of reducing valve:(0~400)kPa
4. Electric agitator: independently controlled for each way
5. Ultraviolet light source pipe: 1220mm in length, wavelength is 365mm±5nm
6. Illuminating lamp: 1220mm in length,power is 40W
7. Air supply: Nitrogen cylinder (or air compressor,compressed air bottle)
8. Ambient temperature: (15~35)ºC
9. Relative humidity: ≤85%
10. Dimension:350mm*400mm*1770mm
11. Net weight: 24kg.
