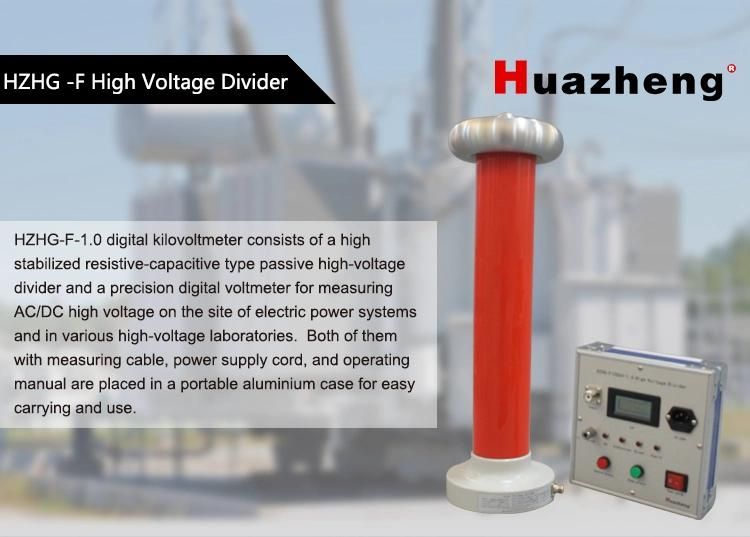

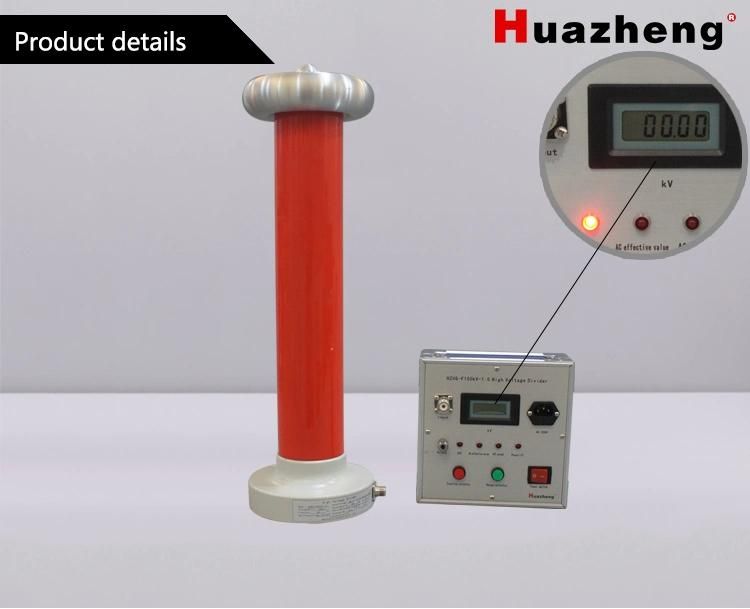

Hv Divider Meter/Digital High Voltage Divider 50kv 100kv 200kv 300kv
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- Warranty：1 Year
- Type：High Voltage Divider
- Accuracy Grade：1
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
Base Info
- Model NO.：HZHG
- Power Source：AC220V
- Test Voltage：AC,DC 50kv,100kv,150kv,300kv
- Partial Pressure Ratio：1000:1
- Accuracy：DC Value:1.0 AC Value:1.5
- Color：Red
- Power Supply：220V 50Hz
- Impedance：400mΩ
- MOQ：1
- Certificate：ISO,CE
- Dimensions：170×170×800
- Transport Package：Wooden Carton
- Specification：ISO,CE
- Trademark：Huazheng
- Origin：China
- HS Code：9030339000
- Production Capacity：500,Month
Description
Voltage levelAC/DC50kV AC/DC100kV AC/DC150V AC/DC300kV Partial pressure ratio 1000:1 1000:1 1000:1 1000:1 Impedance 200MΩ 400MΩ 600MΩ 1200MΩ Accuracy DC value 1.0 Level 1.0 Level 1.0 Level 1.0 Level AC Value 1.5 Level 1.5 Level 1.5 Level 1.5 Level
2.Working Environment
Temperature:0~40ºC
Humidity:≤85%RH
3.Volume ,Weight
4.Attentions:
1. Use of this equipment must not have any debris around,so as not to affect the measurement accuracy
2. Strictly keep operating distance, to ensure safe operation.
3. Check all parts reliable connection, especially solid ground connection.
4. After measurement until the meter measurements show zero before entering the site.
5. Prohibited use of excess pressure, and pay attention to surface cleaning, when not in use in a cool
dry place.
5.Parts List
1. Connecting cable 1pc
2. Instructions 1part
3. Product certification 1part
III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

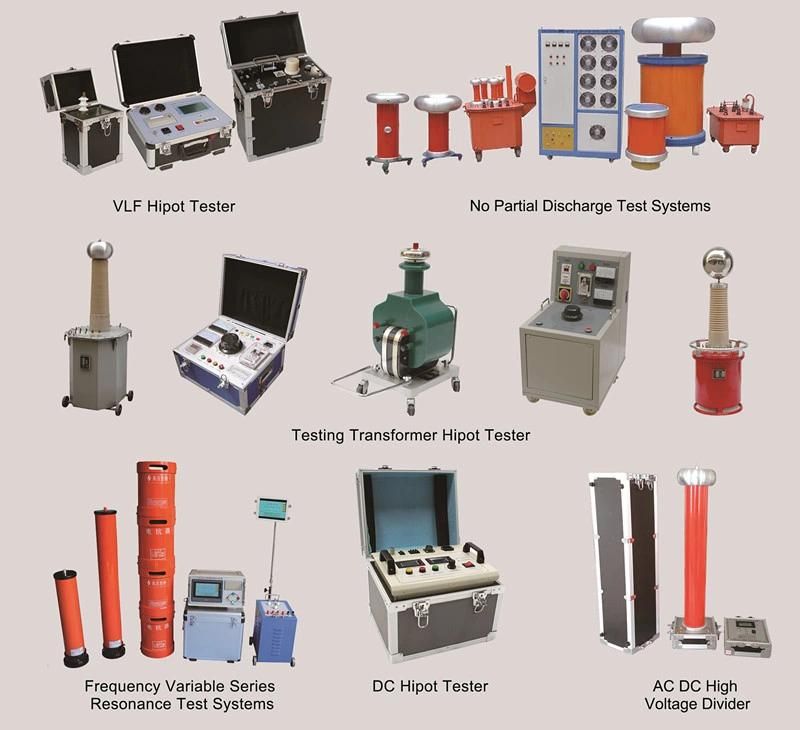

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
IV. Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
V.Customer Visit
VI.Exhibition
VII.Similar Recommendation
2.Working Environment
Temperature:0~40ºC
Humidity:≤85%RH
3.Volume ,Weight
| Voltage Level | AC/DC50kV | AC/DC100kV | AC/DC150kV | AC/DC300kV |
| Volume(mm3) | 170×170×600 | 170×170×800 | 170×170×1100 | 220×220×2100 |
| Weight (kg) | 10 | 15 | 20 | 36 |
